16
An immersion pipe with device connection is required for the installation of the Siphon Connection
Set. Please replace the existing immersion pipe with the supplied immersion pipe with device con-
nection (For kitchen connections or room-saving siphons, you can connect the tundish to a standard
appliance connection socket).

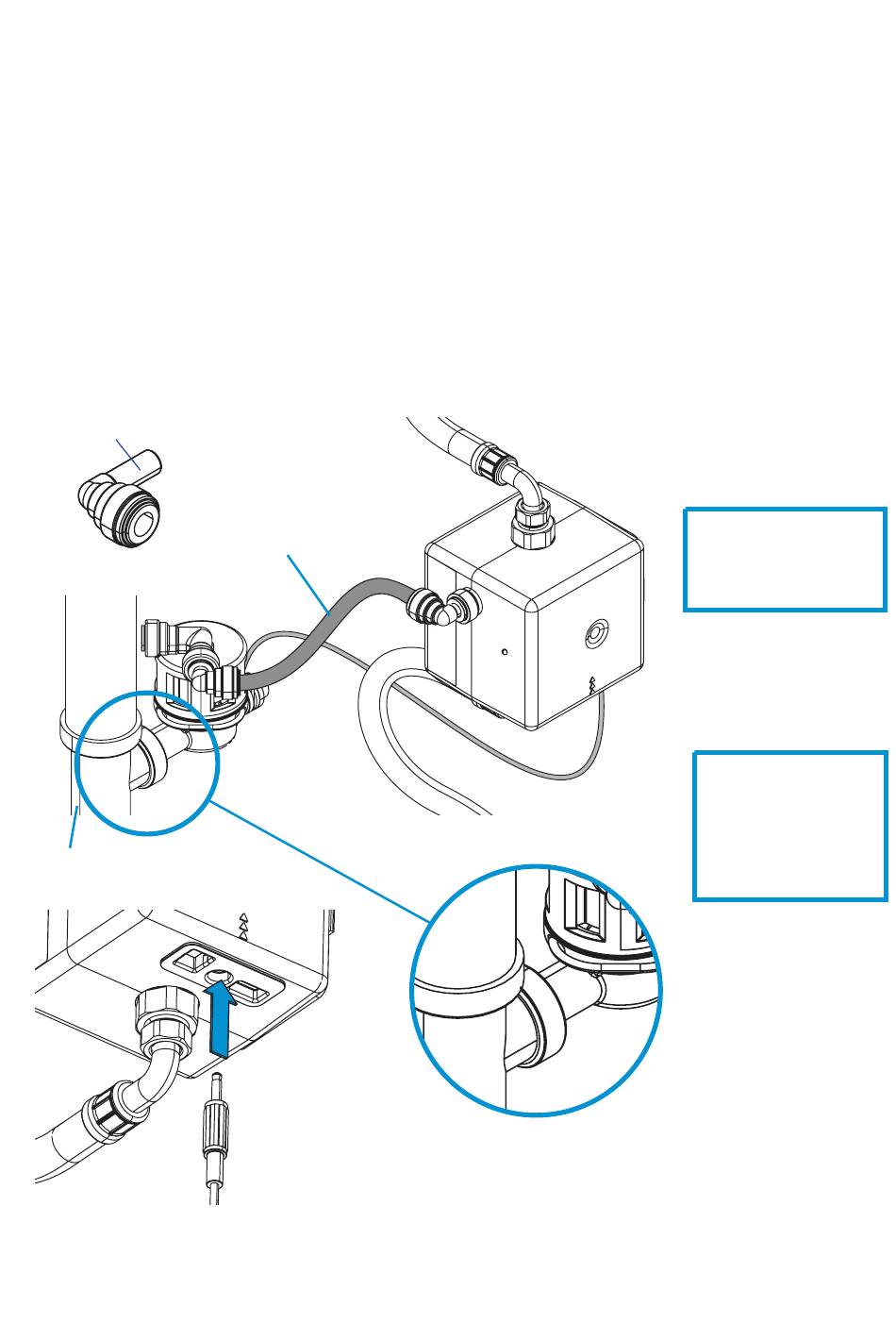

Fix the Siphon Connection Set to the device connection of the immersion pipe and connect the drain
hose via one of the two John Guest connectors with the Siphon Connection Set (KBN-Nr. COSHYG-
BOXAS). For easier installation of the drain hose, use the John Guest angle coupling (included in each
connection set).
Close the other connection of the Waste Water Connection Set with a plug!
If available, insert the plug of the humidity sensor into the connection of the HYGIENE BOX CONEL
(P. 8 - Chap 4.4. Design of Control unit).
John Guest angle coupling
Immersion pipe
8 mm
John Guest-connector
Make sure the drain
hose slopes to-
wards the tundish!
The connection
of the immersion
pipe is also sui-
table for a synthe-
tic siphon
