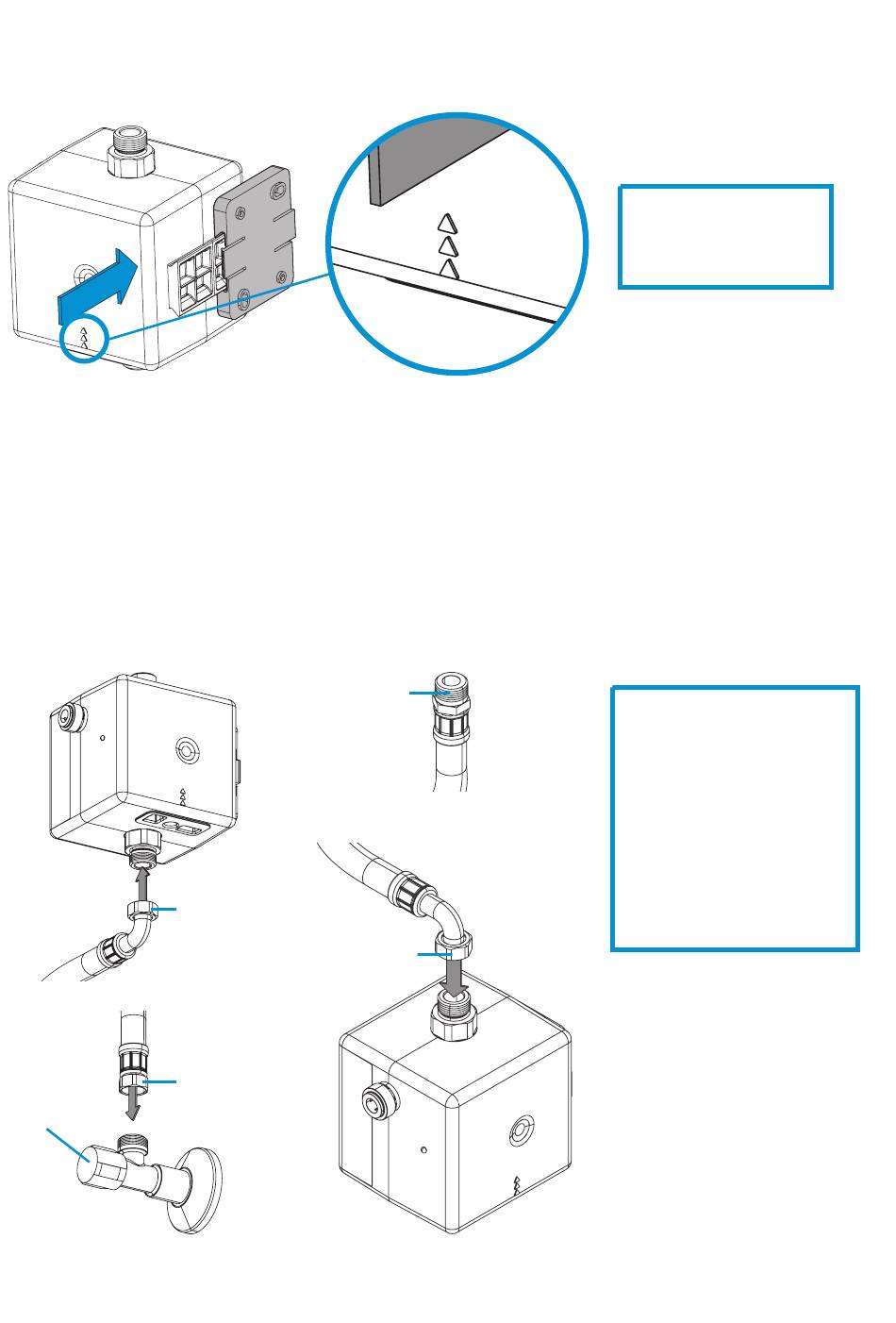

Slide the HYGIENE BOX CONEL sideways onto the wall bracket, observing the indicated direction of flow.

6.2. SIPHON CONNECTION SET

Fix the two flexible hoses to the HYGIENE BOX CONEL.
Connect the ⅜" captive nut with an angle valve and the ⅜" captive nut with the thread at the bottom
of the HYGIENE BOX CONEL.
Connect the ⅜" captive nut with the thread on the upper side of the HYGIENE BOX CONEL and the
⅜" male thread with the outlet valve.
Angle valve
male
thread
Captive nut ⅜"
Captive nut ⅜"
Captive nut ⅜"
⅜"
The arrows on the
casing mark the
direction of flow.
To cover several installa-
tion options, the Siphon
Connection Set includes
a second flexible hose
to connect the con-
nection valve with the
HYGIENE BOX CONEL
under consideration of
the actual installation
situation.
