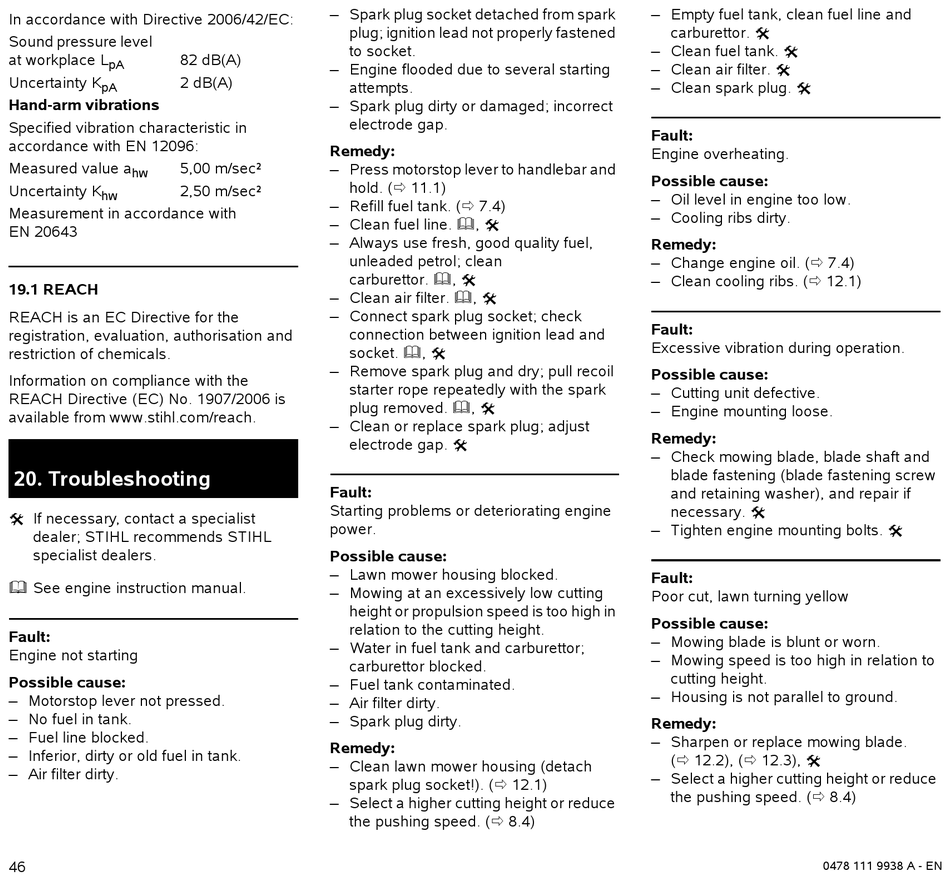

Stihl RM 3 RT Gebrauchsanleitung Seite 48

In accordance with Directive 2006/42/EC:
Sound pressure level
at workplace L 82 dB(A)
pA
Uncertainty K 2 dB(A)
pA
Hand-arm vibrations
Specified vibration characteristic in
accordance with EN 12096:
Measured value a 5,00 m/sec²
hw
Uncertainty K 2,50 m/sec²
hw
Measurement in accordance with
EN 20643
19.1 REACH
REACH is an EC Directive for the
registration, evaluation, authorisation and
restriction of chemicals.
Information on compliance with the
REACH Directive (EC) No. 1907/2006 is
available from www.stihl.com/reach.
20. Troubleshooting
If necessary, contact a specialist
dealer; STIHL recommends STIHL
specialist dealers.
@ See engine instruction manual.
Fault:
Engine not starting
Possible cause:
– Motorstop lever not pressed.
– No fuel in tank.
– Fuel line blocked.
– Inferior, dirty or old fuel in tank.
– Air filter dirty.
46
– Spark plug socket detached from spark
plug; ignition lead not properly fastened
to socket.
– Engine flooded due to several starting
attempts.
– Spark plug dirty or damaged; incorrect
electrode gap.
Remedy:
– Press motorstop lever to handlebar and
hold. ( 11.1)
– Refill fuel tank. ( 7.4)
– Clean fuel line. ,
– Always use fresh, good quality fuel,
unleaded petrol; clean
carburettor. ,
– Clean air filter. ,
– Connect spark plug socket; check
connection between ignition lead and
socket. ,
– Remove spark plug and dry; pull recoil
starter rope repeatedly with the spark
plug removed. ,
– Clean or replace spark plug; adjust
electrode gap.
Fault:
Starting problems or deteriorating engine
power.
Possible cause:
– Lawn mower housing blocked.
– Mowing at an excessively low cutting
height or propulsion speed is too high in
relation to the cutting height.
– Water in fuel tank and carburettor;
carburettor blocked.
– Fuel tank contaminated.
– Air filter dirty.
– Spark plug dirty.
Remedy:
– Clean lawn mower housing (detach
spark plug socket!). (
– Select a higher cutting height or reduce
the pushing speed. ( 8.4)
– Empty fuel tank, clean fuel line and
carburettor.
– Clean fuel tank.
– Clean air filter.
– Clean spark plug.
Fault:
Engine overheating.
Possible cause:
– Oil level in engine too low.
– Cooling ribs dirty.
Remedy:
– Change engine oil. (
– Clean cooling ribs. (
Fault:
Excessive vibration during operation.
Possible cause:
– Cutting unit defective.
– Engine mounting loose.
Remedy:
– Check mowing blade, blade shaft and
blade fastening (blade fastening screw
and retaining washer), and repair if
necessary.
– Tighten engine mounting bolts.
Fault:
Poor cut, lawn turning yellow
Possible cause:
– Mowing blade is blunt or worn.
– Mowing speed is too high in relation to
cutting height.
– Housing is not parallel to ground.
Remedy:
– Sharpen or replace mowing blade.
(
– Select a higher cutting height or reduce
12.1)
the pushing speed. (
7.4)
12.1)
12.2), ( 12.3),
8.4)
0478 111 9938 A - EN
