EDELRID Swivel Serie Kurzanleitung

SWIVELS
EDELRID
Achener Weg 66
88316 Isny im Allgäu
Germany
USER MANUAL
Tel. +49 7562 9 81 - 0
Fax +49 7562 9 81 - 1 00
mail@edelrid.de
www.edelrid.com
1

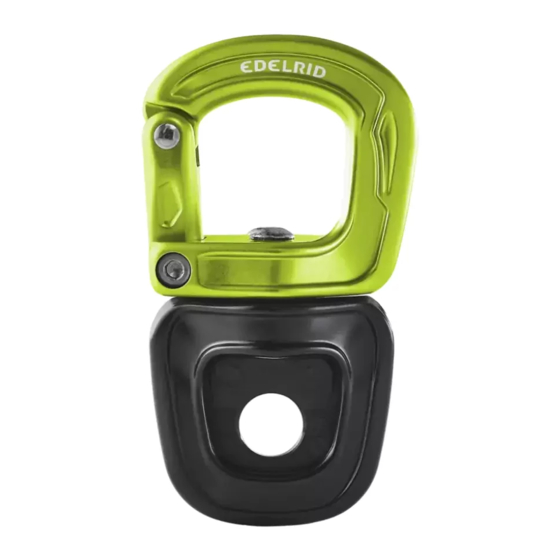

CUPID SWIVEL
A
B
B
C
C
B
A A
CUPID SWIVEL MIX CUPID SWIVEL MINI
A
B
D
2
2Nm
CUPID SWIVEL,
CUPID SWIVEL MIX
2Nm
3
Max. Max.
20kN 20kN
4a
CUPID SWIVEL, CUPID SWIVEL MIX
<120°
Max. Max.
20 kN 15 kN
4b
CUPID SWIVEL,
CUPID SWIVEL
MIX
Max. Max.
10 kN 10 kN
4c
CUPID SWIVEL MIX
5 6
7
STORAGE/TRANSPORT
A
C
B
A
9a
MAX. LIFETIME WITHOUT USE
9b
MAX. SERVICE LIFE
9c
INSPECTION
10
TEMPERATURE OF USE
max. +60°C
+140°F
min.
12
CE 0123
TÜV Süd Product Service GmbH
Ridlerstraße 65,
80339 München, Germany
Max.
23kN
Max.
15 kN
8
MAINTENANCE
max. +30°C
+86°F
min. 0°C
+32°F
40°C
104°F
min. every year
11
LATEST
QUESTIONS VERSION
-30°C
-22°F
www.edelrid.com
13
CE 2777
SATRA Technology Europe Ltd,
Bracetown Business Park,
Clonee, Dublin 15,
Dublin, Ireland
