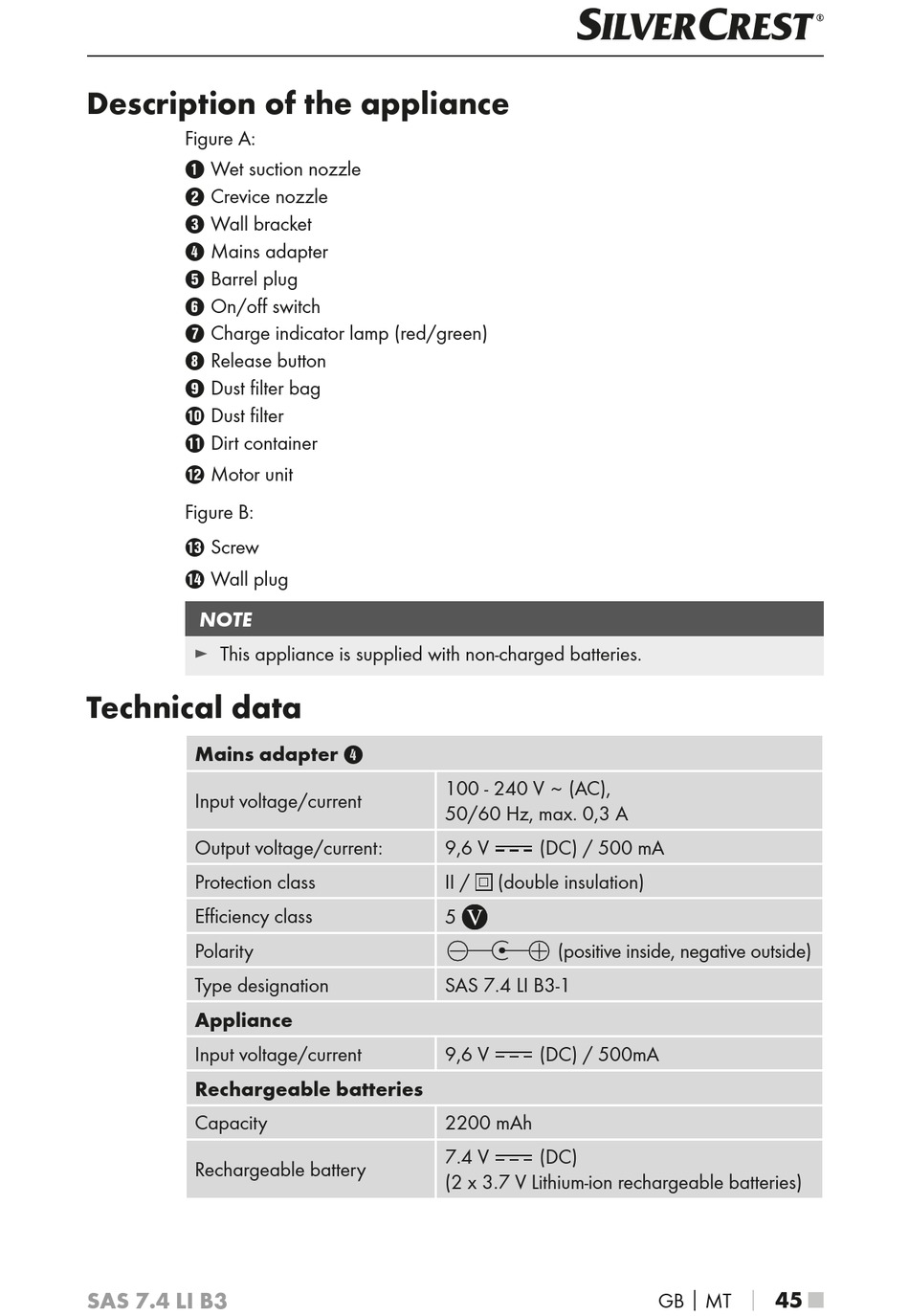

Description of the appliance

Figure A:
1 Wet suction nozzle
2 Crevice nozzle
3 Wall bracket
4 Mains adapter
5 Barrel plug
6 On/off switch
7 Charge indicator lamp (red/green)
8 Release button
9 Dust filter bag
0 Dust filter
q Dirt container
w Motor unit
Figure B:
e Screw
r Wall plug
NOTE
► This appliance is supplied with non-charged batteries.

Technical data

Mains adapter 4
Input voltage/current
Output voltage/current:
Protection class
Efficiency class
Polarity
Type designation
Appliance
Input voltage/current
Rechargeable batteries
Capacity
Rechargeable battery
SAS 7.4 LI B3
100 - 240 V ~ (AC),
50/60 Hz, max. 0,3 A
9,6 V (DC) / 500 mA
II / (double insulation)
5
(positive inside, negative outside)
SAS 7.4 LI B3-1
9,6 V (DC) / 500mA
2200 mAh
7.4 V (DC)
(2 x 3.7 V Lithium-ion rechargeable batteries)
GB │ MT │ 45 ■
