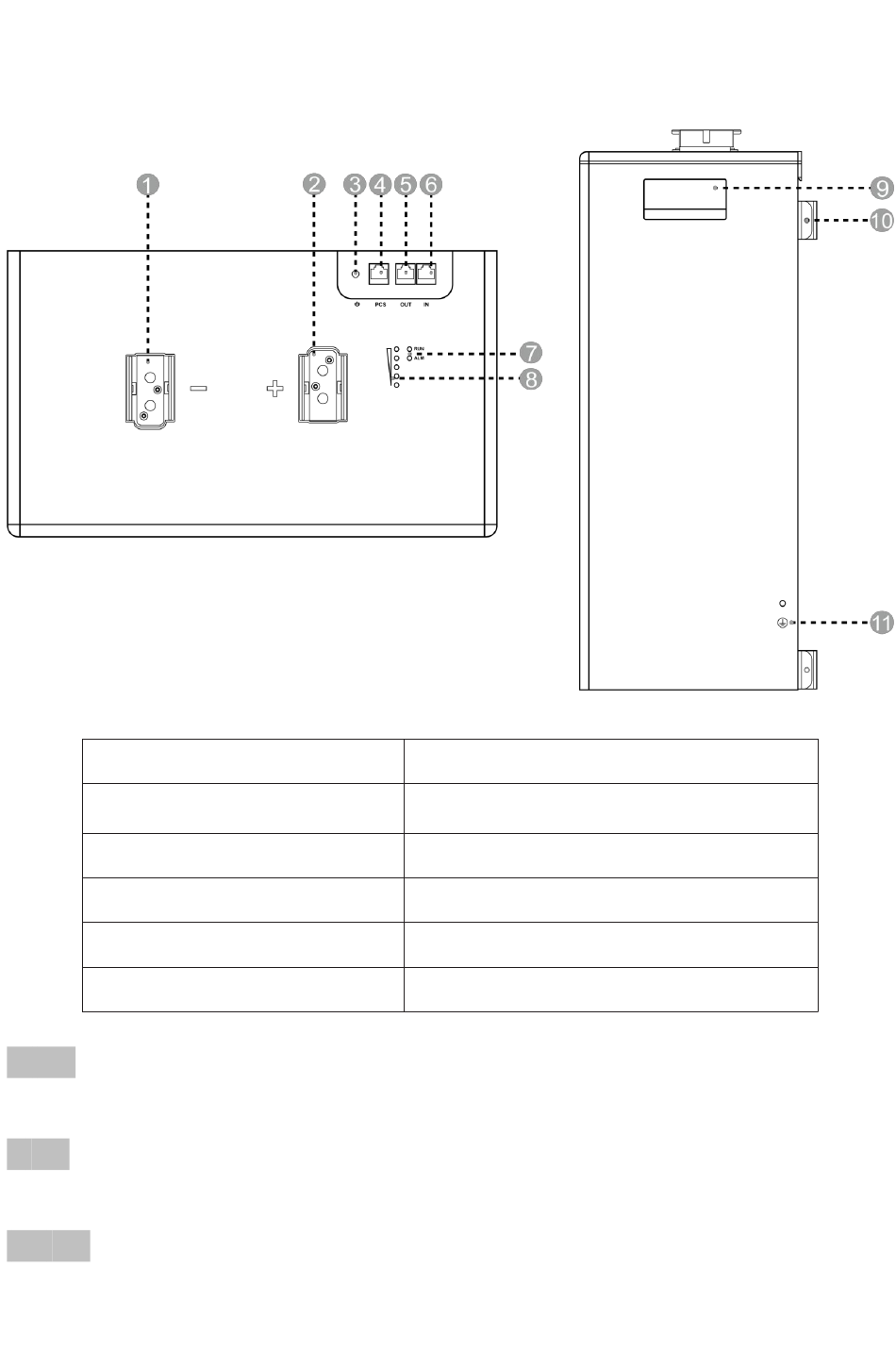

2.4 Product Overview

1. P- port
2. P+ port
3. Battery switch
4. PCS port
5. OUT port
6. IN port
P+ port
Positive output terminal.
P- port
Negative output terminal.
PCS port
Inverter communication terminal, to follow the CAN protocol (baud rate:500kbps),and RS485(baud
rate:9600bps), used to output battery information to the inverter.
7. Status indicators
8. SOC indicators
9. Handle
10. Bracket mount
11. Protective earth
