User manual

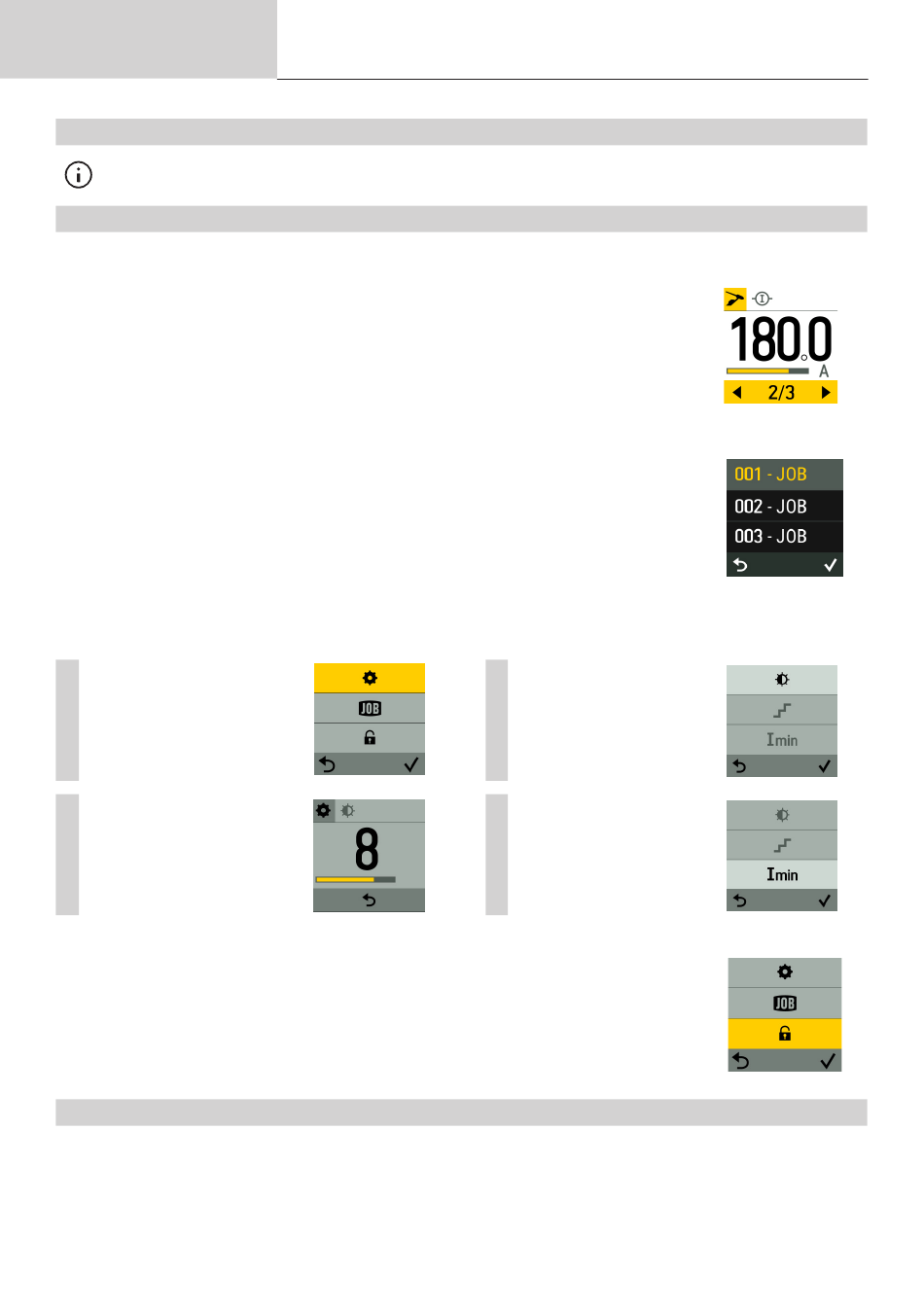

ACTIVATING
The power source panel is active, as is the remote control. Both screens show the changes made to the parameters in question.
USING
A/ Setting a welding value
Press button (1) or (2) on the remote control to scroll through the different parameters that are
1-
adjustable.
2- Press button (3) to increase the parameter value and button (4) to decrease it.
The modified value is then displayed on the screen of the remote control. The value displayed on the
3-
screen of the power source also changes accordingly.
B/ JOB recall (20 maximum)
1- Hold down button (2) for 2 seconds to access the JOB menu.
2- Select the desired JOB using buttons (3) and (4).
3- To accept the selected JOB, press button (2).
4- The display returns to the start menu with the various JOB parameters displayed.
5- If you decide not to call up a JOB and would like to return to the main display, press button (1).
C/ Setting the parameters
Press and hold button (1) to access
1
the Parameter menu.
Modify the values of the selected
3 parameter using buttons (3) and
(4).
D/ Locking and unlocking the remote control
Hold down button (1) for 2 seconds, then use buttons (3) and (4) to select the padlock icon, and press
1-
button (2) to confirm.
A large 'LOCKED' symbol appears briefly on the screen. A small lock symbol (1) appears in the right-hand
2-
corner to indicate that the remote control is locked, and will not allow any interaction.
3- To unlock the remote control, hold down button (1) for 2 seconds.
DEACTIVATING
To deactivate the remote control, switch off your power source and unplug the remote control.
The screen may go to sleep if you don't use it for a while. To reactivate it, press any button.
14
Translation of the original
instructions
Scroll through the parameters
using buttons (3) and (4). Select
2
the parameter you wish to adjust
using button (2).
To confirm, press button (2).
4 You can go back using button
(1)
