User manual
HUMAN-MACHINE INTERFACE (HMI)
Please read the user manual for the interface (HMI) supplied with your welding power source.
HMI
POWER - START-UP
The remote control starts automatically when it is connected to the power source. To start your power source, please consult its user manual.
This unit is compatible with the following power sources:
TIG
• Krypton 231 DC FV (075245)
• Krypton 321 DC + Kit Num-3 (068094 + 081246)
• Krypton 401 DC (080904)
• Titanium 321 AC/DC (069879)

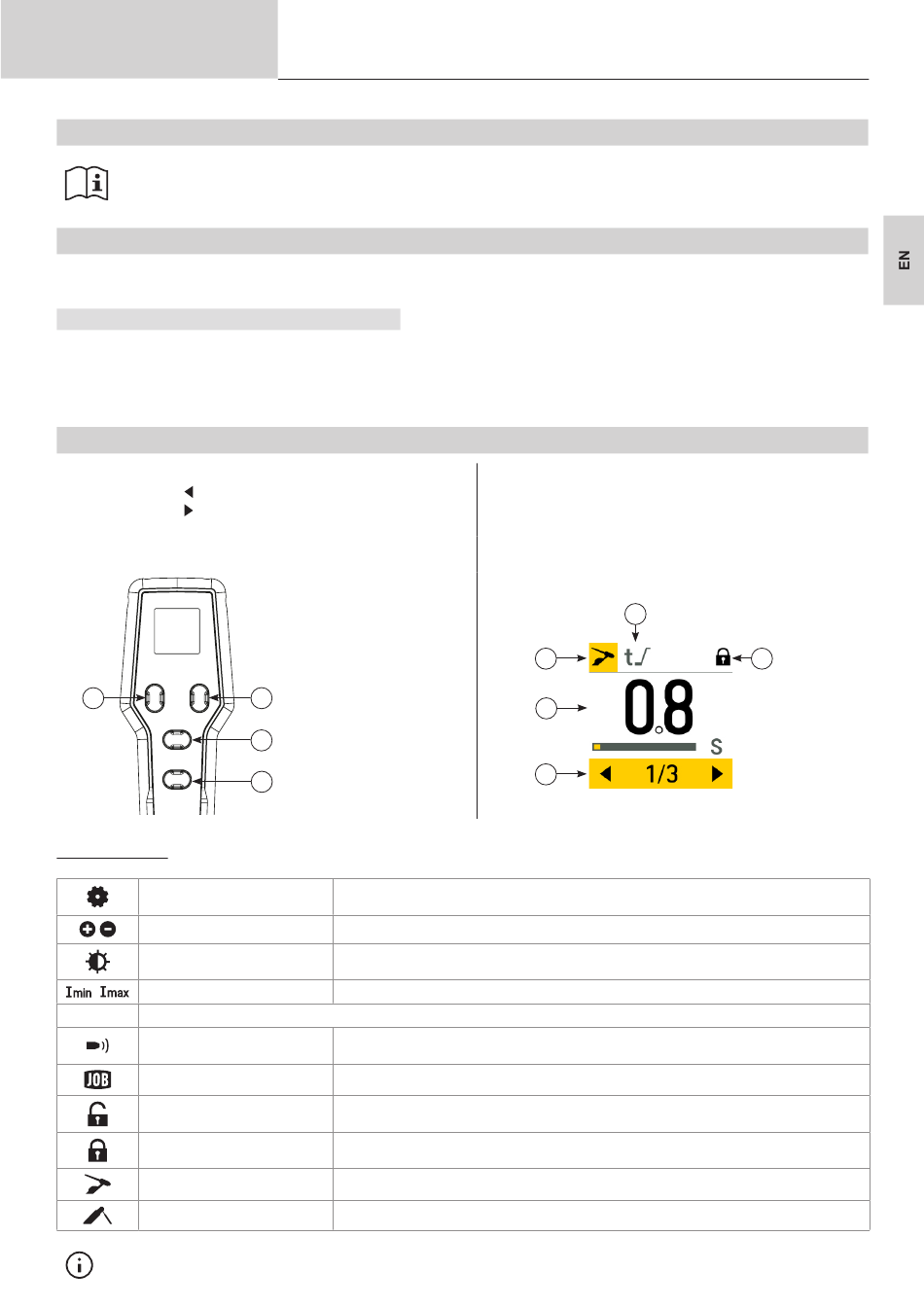

MENU
Buttons:
1- Select parameter ( ) or return or Parameter setting menu (hold down)
2- Select parameter ( ) or confirm, or JOB menu (hold down)
3- Increase parameter or navigate up in menu selection
4- Decrease the parameter or navigate down in the menu selection
1

Symbol definitions

Parameter menu
Current increment
Screen brightness
Min and max current limits
2T / 4T Trigger mode
Gas purge
JOB Menu
Unlock
Lock
TIG welding mode
MMA welding mode
The functions available and the number of JOB slots will vary depending on the power source.
Translation of the original
instructions
2
3
4
Provides access to a wide range of parameter settings
Sets the incremental current value for each time buttons (3) or (4) are pressed.
Adjusts the screen backlight from 0 to 100%.
Sets minimum and maximum current limits
Purge the gas from the torch until manually deactivated or maximum purge time (60 seconds)
has elapsed.
Lists the different JOBs saved on the power source and allows you to recall one of these JOBs.
Remote control settings are unlocked
Remote control settings are locked
Indicates that the welding machine is in TIG mode
Indicates that the welding machine is in MMA mode
Icons:
1- Current welding process selected
2- Welding parameter to be adjusted
3- Remote control lock
4- Parameter adjustment field
5- Navigation bar for parameter selection
2
1
4
5
RC-HD4
3
