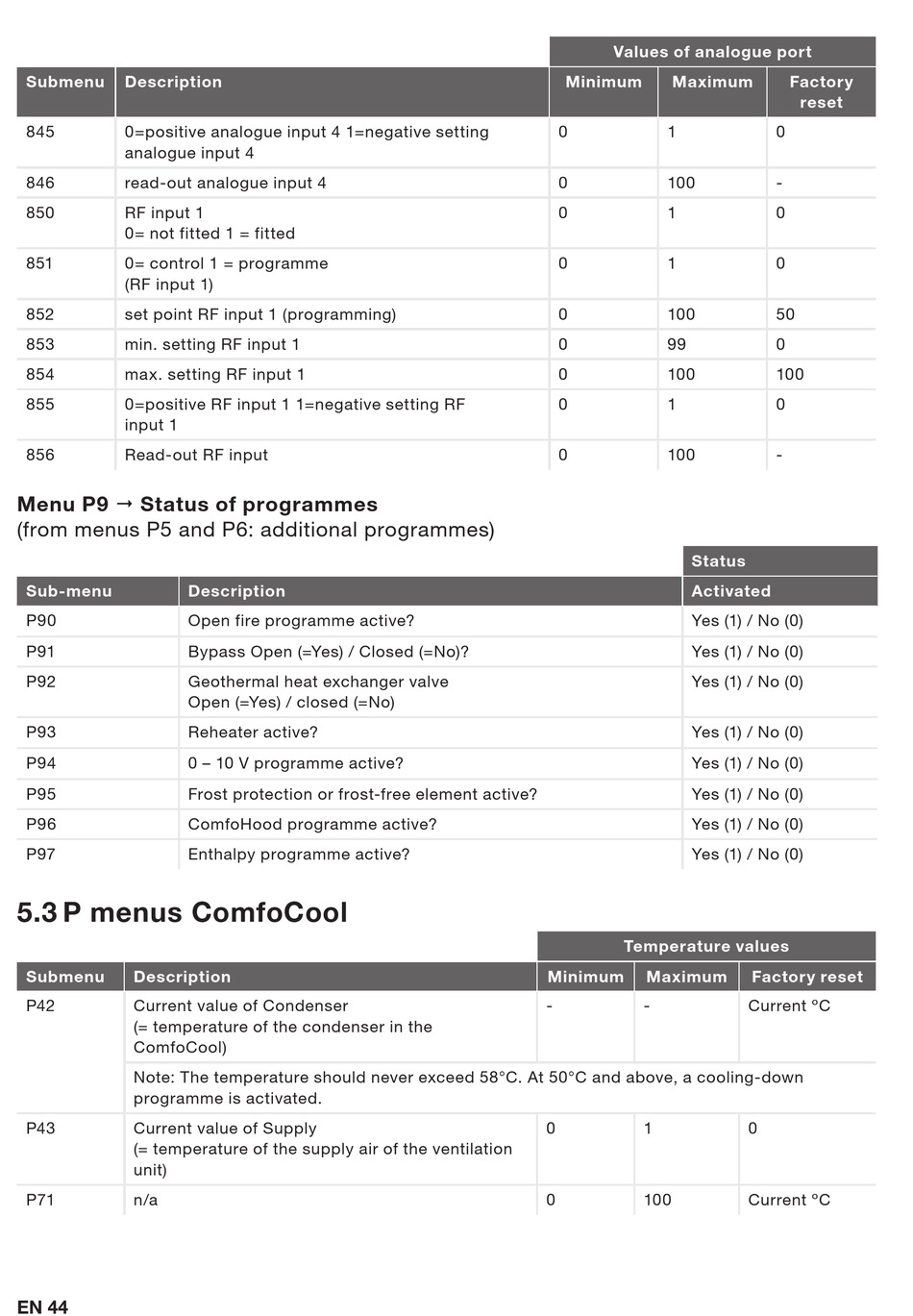

P Menus Comfocool - Zehnder ComfoControl CC Luxe Installationsanleitung

Submenu Description
845 0=positive analogue input 4 1=negative setting
analogue input 4
846 read-out analogue input 4
850 RF input 1
0= not fitted 1 = fitted
851 0= control 1 = programme
(RF input 1)
852 set point RF input 1 (programming)
853 min. setting RF input 1
854 max. setting RF input 1
855 0=positive RF input 1 1=negative setting RF
input 1
856 Read-out RF input
Menu P9  Status of programmes
(from menus P5 and P6: additional programmes)
Sub-menu Description
P90 Open fire programme active?
P91 Bypass Open (=Yes) / Closed (=No)?
P92 Geothermal heat exchanger valve
Open (=Yes) / closed (=No)
P93 Reheater active?
P94 0 – 10 V programme active?
P95 Frost protection or frost-free element active?
P96 ComfoHood programme active?
P97 Enthalpy programme active?

5.3 P menus ComfoCool

Submenu Description
P42 Current value of Condenser
(= temperature of the condenser in the
ComfoCool)
Note: The temperature should never exceed 58°C. At 50°C and above, a cooling-down
programme is activated.
P43 Current value of Supply
(= temperature of the supply air of the ventilation
unit)
P71 n/a
EN 44
Values of analogue port
Minimum Maximum
0 1
0 100
0 1
0 1
0 100
0 99
0 100
0 1
0 100
Status
Activated
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Temperature values
Minimum Maximum
- -
0 1
0 100
Factory
reset
0
-
0
0
50
0
100
0
-
Factory reset
Current ºC
0
Current ºC
