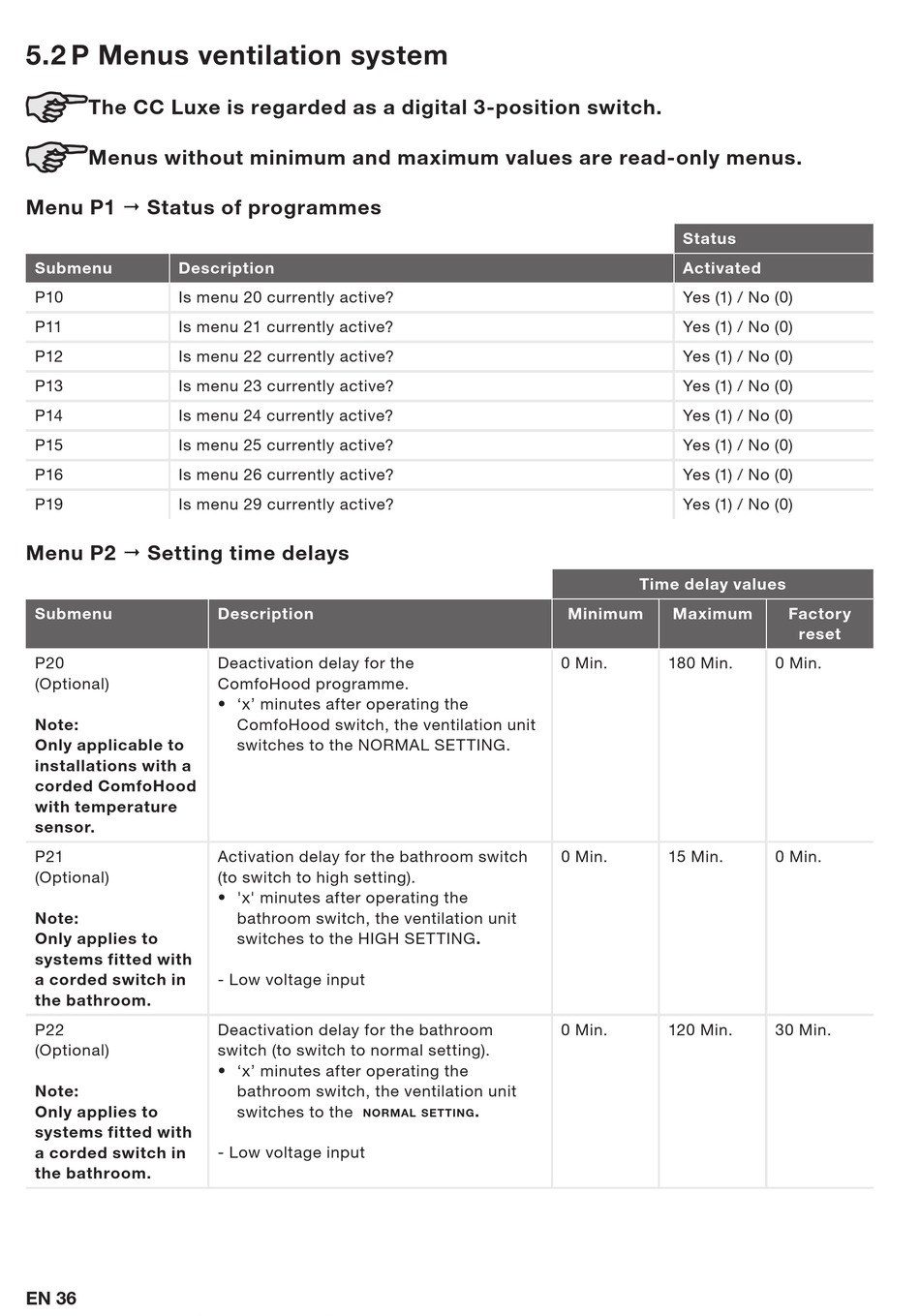

5.2 P Menus ventilation system

The CC Luxe is regarded as a digital 3-position switch.
Menus without minimum and maximum values are read-only menus.
Menu P1  Status of programmes
Submenu Description
P10 Is menu 20 currently active?
P11 Is menu 21 currently active?
P12 Is menu 22 currently active?
P13 Is menu 23 currently active?
P14 Is menu 24 currently active?
P15 Is menu 25 currently active?
P16 Is menu 26 currently active?
P19 Is menu 29 currently active?
Menu P2  Setting time delays
Submenu
P20
(Optional)
Note:
Only applicable to
installations with a
corded ComfoHood
with temperature
sensor.
P21
(Optional)
Note:
Only applies to
systems fitted with
a corded switch in
the bathroom.
P22
(Optional)
Note:
Only applies to
systems fitted with
a corded switch in
the bathroom.
EN 36
Description
Deactivation delay for the
ComfoHood programme.
• ' x' minutes after operating the
ComfoHood switch, the ventilation unit
switches to the NORMAL SETTING.
Activation delay for the bathroom switch
(to switch to high setting).
• ' x' minutes after operating the
bathroom switch, the ventilation unit
switches to the HIGH SETTING.
- Low voltage input
Deactivation delay for the bathroom
switch (to switch to normal setting).
• ' x' minutes after operating the
bathroom switch, the ventilation unit
switches to the
normal setting
- Low voltage input
Time delay values
Minimum
0 Min.
0 Min.
0 Min.
.
Status
Activated
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Yes (1) / No (0)
Maximum Factory
reset
180 Min. 0 Min.
15 Min. 0 Min.
120 Min. 30 Min.
