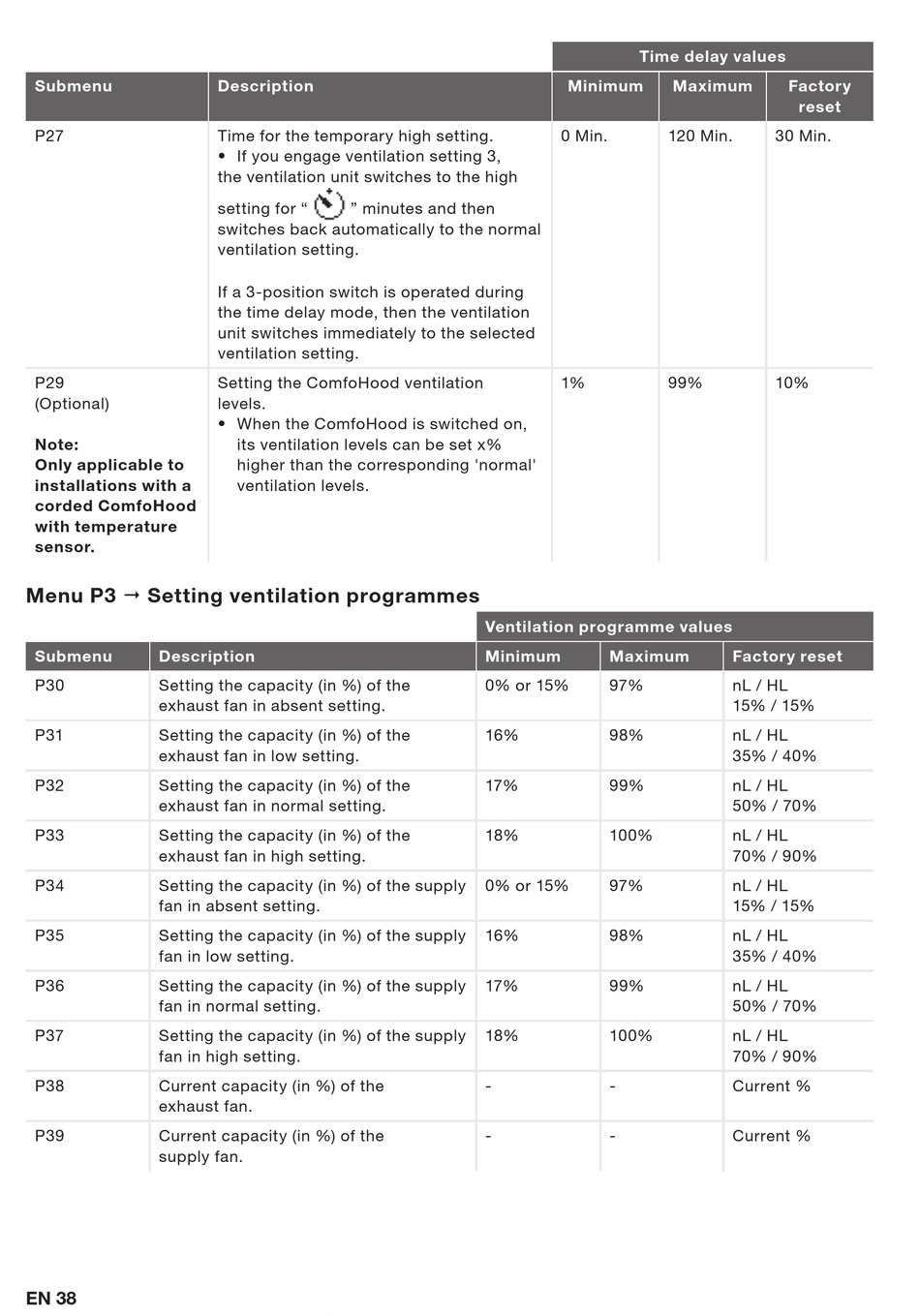

Zehnder ComfoControl CC Luxe Installationsanleitung Seite 38

Submenu
P27
P29
(Optional)
Note:
Only applicable to
installations with a
corded ComfoHood
with temperature
sensor.
Menu P3  Setting ventilation programmes
Submenu Description
P30 Setting the capacity (in %) of the
exhaust fan in absent setting.
P31 Setting the capacity (in %) of the
exhaust fan in low setting.
P32 Setting the capacity (in %) of the
exhaust fan in normal setting.
P33 Setting the capacity (in %) of the
exhaust fan in high setting.
P34 Setting the capacity (in %) of the supply
fan in absent setting.
P35 Setting the capacity (in %) of the supply
fan in low setting.
P36 Setting the capacity (in %) of the supply
fan in normal setting.
P37 Setting the capacity (in %) of the supply
fan in high setting.
P38 Current capacity (in %) of the
exhaust fan.
P39 Current capacity (in %) of the
supply fan.
EN 38
Description
Time for the temporary high setting.
• If you engage ventilation setting 3,
the ventilation unit switches to the high
setting for " " minutes and then
switches back automatically to the normal
ventilation setting.
If a 3-position switch is operated during
the time delay mode, then the ventilation
unit switches immediately to the selected
ventilation setting.
Setting the ComfoHood ventilation
levels.
• W hen the ComfoHood is switched on,
its ventilation levels can be set x%
higher than the corresponding 'normal'
ventilation levels.
Time delay values
Minimum
0 Min.
1%
Ventilation programme values
Minimum Maximum
0% or 15% 97%
16% 98%
17% 99%
18% 100%
0% or 15% 97%
16% 98%
17% 99%
18% 100%
- -
- -
Maximum Factory
reset
120 Min. 30 Min.
99% 10%
Factory reset
nL / HL
15% / 15%
nL / HL
35% / 40%
nL / HL
50% / 70%
nL / HL
70% / 90%
nL / HL
15% / 15%
nL / HL
35% / 40%
nL / HL
50% / 70%
nL / HL
70% / 90%
Current %
Current %
