Shenzhen AtomStack Technologies Co., Ltd.

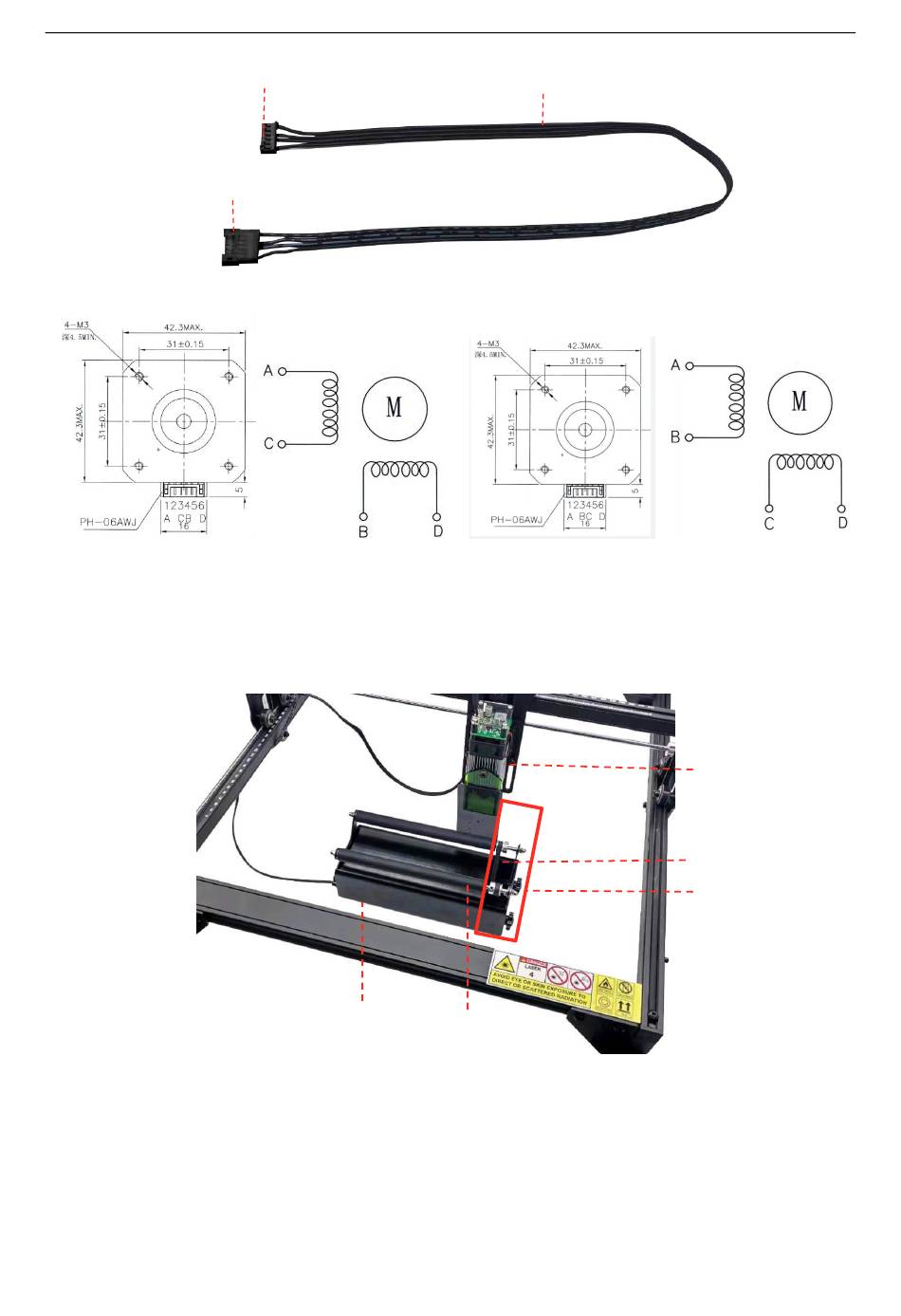

Plug for roller 4PIN black plug wire
Plug for motor
4.14 black plug wire
4.15 Connection order of white plug wire 4.16 Connection order of black plug wire
3. The synchronized belt must be set out of the processing area, make sure will not be
destroyed by the laser during the operation.
Laser Head
Synchronized belt
Out of processing area
R3 Rotary Roller
Roller
4.17 Rotary roller and synchronized belt
