*C.Click to Outputs Setup to find the hidden parameter
Outputs setup
4.8 Outputs Setup parameter

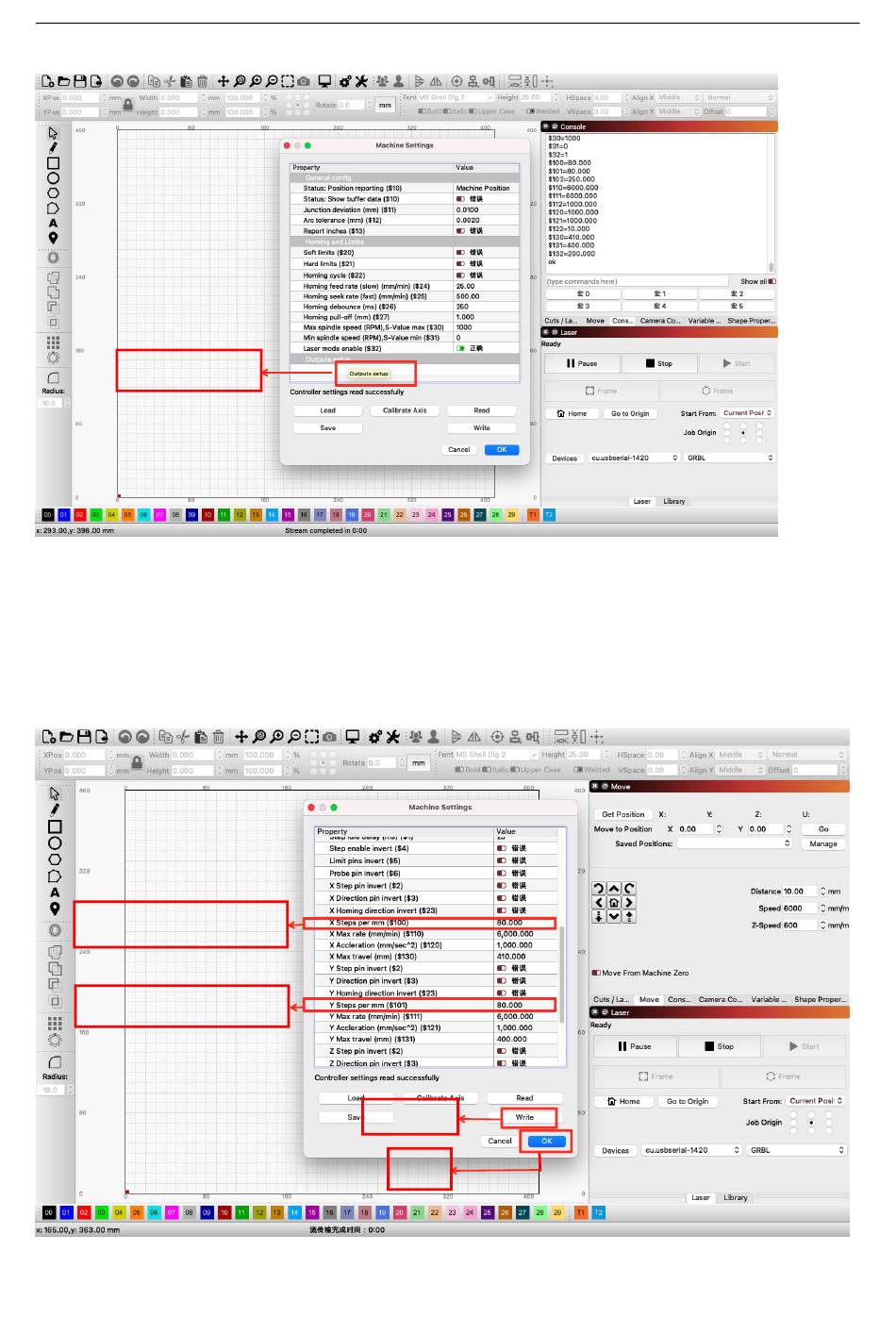

*D. Find the$100(X-axis travel resolution), $101(Y-axis travel resolution) ， and set the Value
according to your device，（ you can first engrave a small square with 30*30mm to confirm the
pulse value. The processing is to check if error is within 1mm after testing engraving is finished.
If confirmed, that is the suitable pulse value）click write and close to finish the configuration.
X Steps per mm($100)
Y steps per mm($101)
Schreib
OK
4.9
X and Y Axis pulse setting
