shower and commode transport chair owing to the sanitary container located
under the seat and four swivel castors. It facilitates everyday hygiene ac�vi�es.
The chair is especially recommended to people who have problems with mobility
which are caused by: paralysis, obesity or abnormal underweight, degenera�ons
or deformity of limbs, degenera�ons or joints injuries, limbs injuries or
amputa�ons, heart and blood vessel disorder and circulatory disorders.
3. Assembly and use

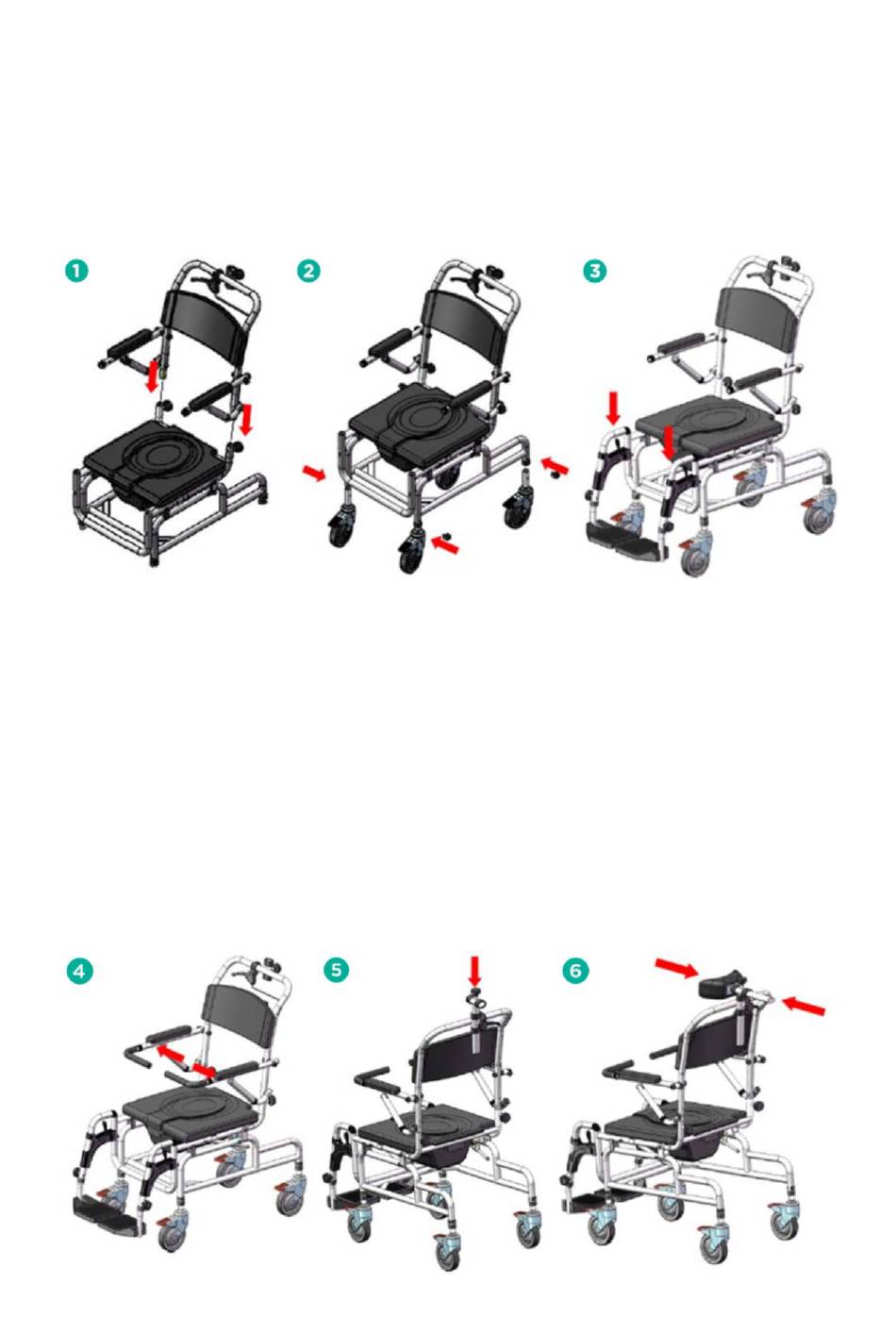

Figure 1. Fix the seat on the frame of the chair by pressing it un�l it locks into
place (the front of the seat is indicated by the wedge). Mount the backrest with
armrests in the holes at the back of the frame. Align the holes and lock them with
two backrest locking knobs. Insert the sanitary container into the slides from the
back of the seat.
Figure 2. Install the four wheels into the main frame. Align the holes at the desired
height and lock each wheel with a C-type buckle. The chair has a 4-step height
adjustment.Note! All wheels must be set at the same height.
Figure 3. Insert the footrests into the main frame from the side, and then rotate
it to the front un�l the footrest latch locks in place. The footrests have a 3-step
height adjustment - adjustable by the locking knobs M6.
