USER MANUAL
Tilt-in-space shower and commode transport chair 3in1
Product code: MASTER-TIM PLUS
1. Characteris�cs
Shower and commode transport chair is made of powder coated aluminum
frame. It features flip-up armrests for easy entry and exit for people with reduced
mobility and seat & backrest angle adjustment. It is equipped with a seat with
wedge made of PU, headrest, four swivel 5" wheels with brakes, �ltable footrests
and a sanitary container. The construc�on of the chair makes it possible to slide
over the toilet seat.
The set includes: frame, seat, headrest, headrest tube, two headrest locking
knobs, four swivel 5" wheels with brakes, four C-type wheel moun�ng buckles,
backrest with armrests, two armrest extensions, two backrest locking knobs,
footrests with footplate, sanitary container with lid.

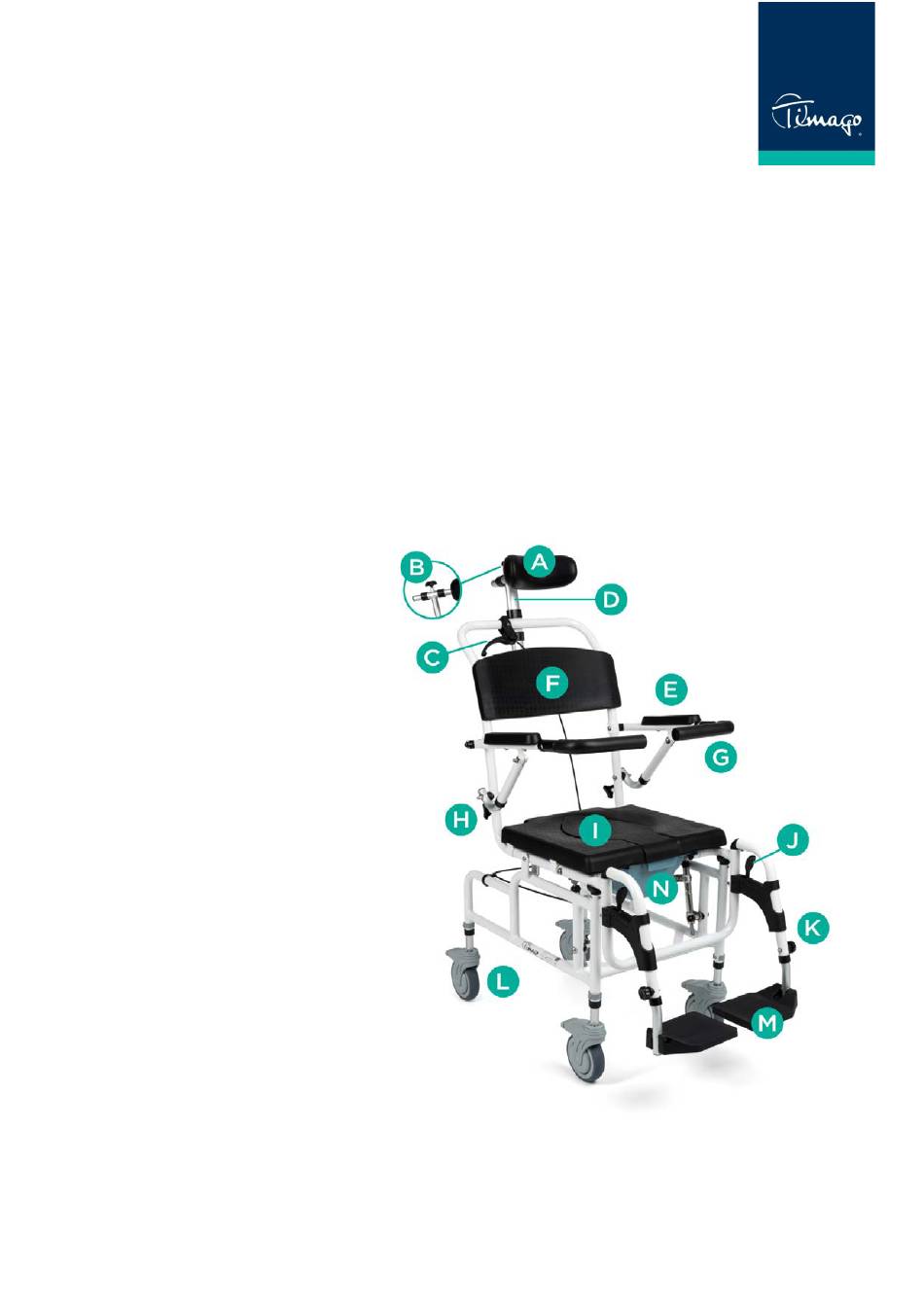

Elements of the chair
A. Headrest
B.
Headrest locking knob
C.
Handle
D.
Headrest tube
E. Armrest
F. Backrest
G. Armrest extension
H. Backrest locking knob
I.
Seat
J.
Footrest latch
K.
Footrest adjustment
L. Wheel with brake
M. Footrest
N. Sanitary container
2. Applica�on
Shower and commode transport chairs are designed for people who have
problems with unassisted movement and for pa�ents with dysfunc�ons and
reduced mobility. The chair is suitable for indoor use only. The chair may only be
used with the assistance of an accompanying person. The chair func�ons as a
34
