1.2 Function

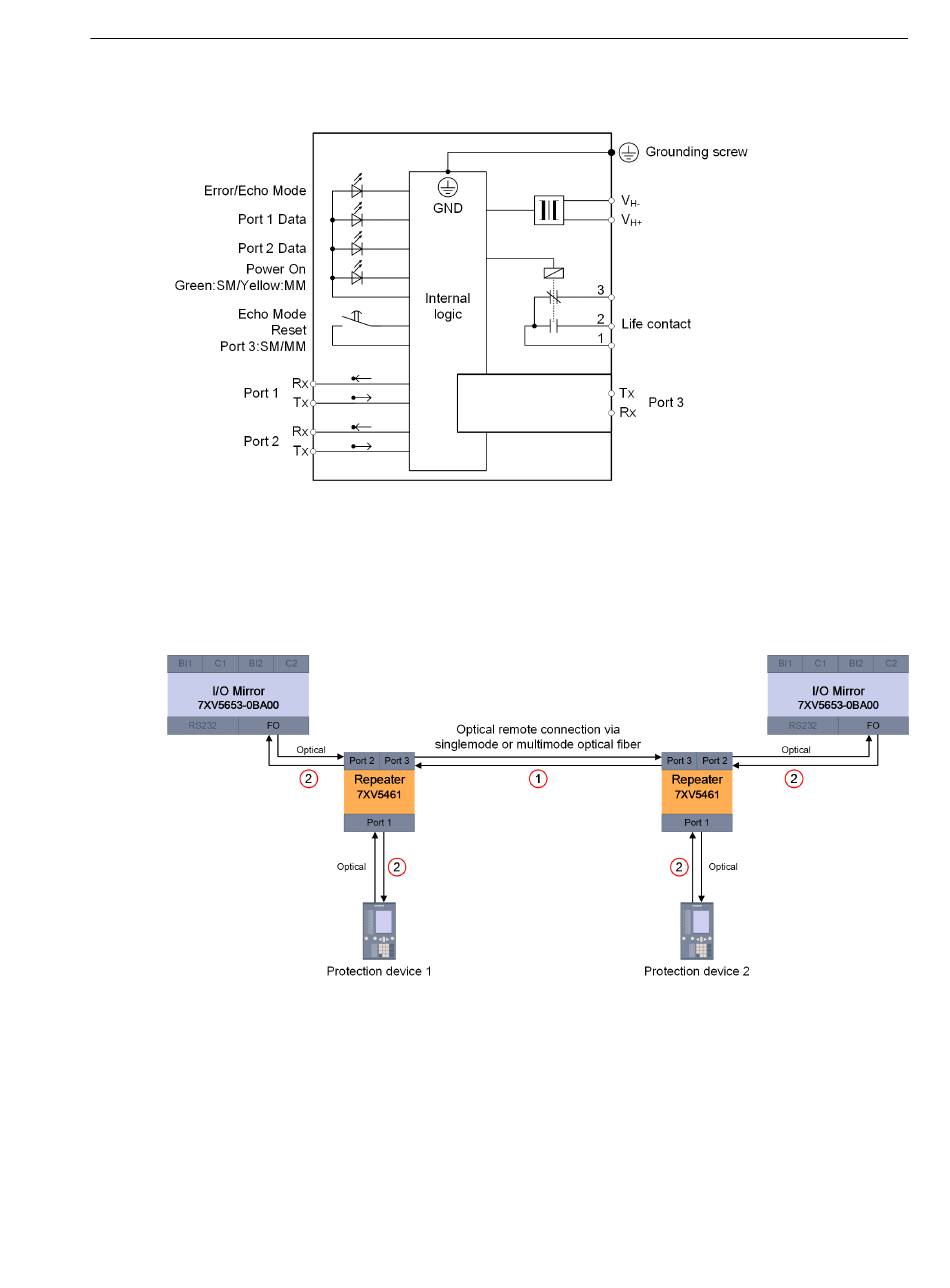

[dw_Hardware-structure_7XV5461, 2, en_US]
Figure 1-1
The device multiplexes the incoming data from port 1 and 2 to port 3. Transmission is completely bit-trans-
parent, meaning that the information is forwarded without information being added or hidden. Data incoming
at port 3 is demultiplexed in the device and emitted at port 1 or port 2.
Uni- and Bidirectional Structure of a Communication Route
[dw_remote-connection_multimode, 2, en_US]
Figure 1-2
SIPROTEC 5, 7XV5461 Long Distance Fiber Optic Repeater, Manual
C53000-G5050-C095-1, Edition 10.2024
Hardware And Interfaces Of The Device
Typical Structure Of A Communication Route With A Unidirectional Device
Introduction
1.2 Function
11
