9. On the master switch, specify the preprovisioned configuration mode, and assign
both J-EX4500 members (including the master) the routing-engine role:
user@switch# edit virtual-chassis
user@switch# set preprovisioned
user@switch# set member member-id-1 serial-number
serial-number-1 role routing-engine
user@switch# set member member-id-2 serial-number
serial-number-2 role routing-engine
10. On the master switch, continue preprovisioning by assigning both J-EX4200
members the linecard role, then commit the configuration:
user@switch# set member member-id-3 serial-number
serial-number-3 role linecard
user@switch# set member member-id-4 serial-number
serial-number-4 role linecard
user@switch# commit

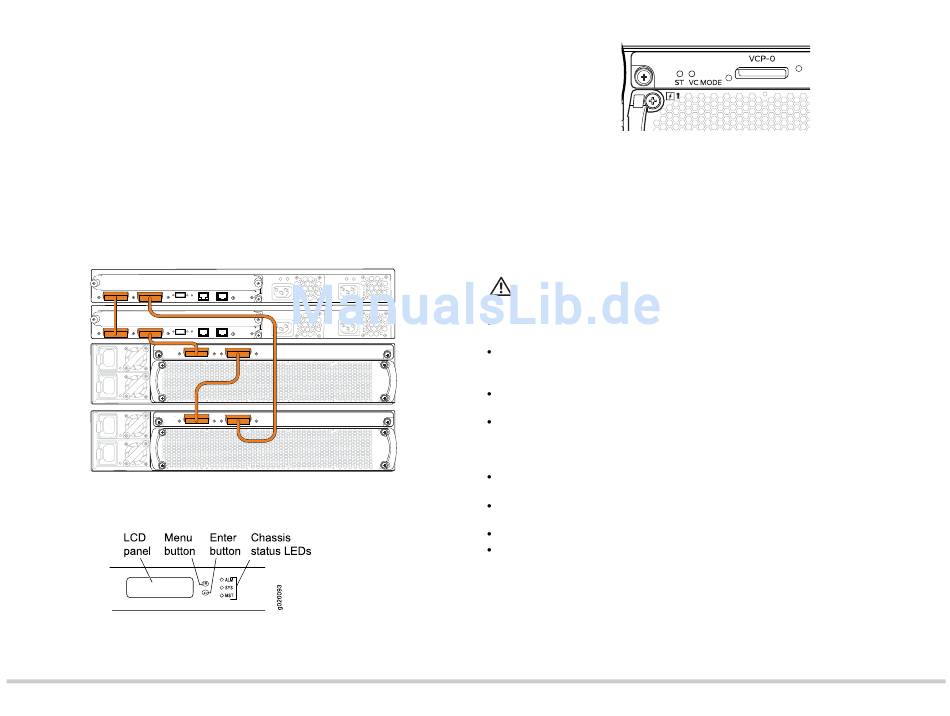

11. With four Virtual Chassis cables and cable connector retainers, interconnect the four
switches using the dedicated VCPs on the back of each switch.
†
†
†
’
†
’
12. On the master switch:
− Verify that the green MST (master) LED to the right of the LCD panel is on
steadily.
− Verify that the green ST (status) and VC MODE LEDs on the Virtual Chassis
module are both on steadily.
Dell PowerConnect J-Series J-EX4500 Ethernet Switch Quick Start—page 5
13. On the other J-EX4500 member switch, verify that the green MST LED is blinking
and that the green ST and VC MODE LEDs are on steadily.
14. On both J-EX4200 line card members, verify that the MST LED to the right of the
LCD panel is off.
Safety Warnings Summary
This is a summary of safety warnings. For a complete list of warnings, including
translations, see the Dell PowerConnect J-EX4500 switch documentation at
http://www.support.dell.com/manuals
WARNING: Failure to observe these safety warnings can result in personal
injury or death.
Permit only trained and qualified personnel to install or replace switch components.
Perform only the procedures described in this quick start and the J-EX4500 switch
documentation. Only authorized service personnel must perform other services.
Before installing the switch, read the planning instructions in the J-EX4500 switch
documentation to make sure that the site meets power, environmental, and clearance
requirements for the switch.
Before connecting the switch to a power source, read the installation instructions in the
J-EX4500 switch documentation.
A J-EX4500 switch with one power supply weighs 37 lb (17 kg). With two power
supplies, the switch weighs 40 lb (18 kg). Installing the switch in a rack requires one
person to lift the switch and a second person to install mounting screws. To prevent
injury, keep your back straight and lift with your legs, not your back.
If the rack has stabilizing devices, install them in the rack before mounting or servicing
the switch in the rack.
Before installing or after removing an electrical component, always place it
component-side up on a flat antistatic surface or in an electrostatic bag.
Do not work on the switch or connect or disconnect cables during electrical storms.
Before working on equipment that is connected to power lines, remove jewelry,
including rings, necklaces, and watches. Metal objects heat up when connected to
power and ground and can cause serious burns or become welded to the terminals.
Contacting Dell Inc.
For technical support, see
http://www.support.dell.com
.
.
