BRAKE HOSE ROUTING WITH MAST
1. Install the brake hose clamp onto the slotted opening of the
mast (Figure 12). Verify that the protrusion on the clamp is
fully installed in the slot of the guard.
2. Route the front disc brake hose or cable housing along the
inside of the left lower tube. Then, install the brake hose into
the opening on the brake hose clamp (Figure 13). Verify the
brake hose has ample length on the inside so that the upper
tube does not contact the brake hose during compression
of the fork (Figure 14). Use a 2.5 mm hex wrench to
loosely install the two brake hose clamp screws, as further
adjustments will be needed in a later step.
3. Remove the two screws from the middle and upper brake
hose guides. The middle brake hose guide is marked with
an "M" and has a slightly smaller diameter than the upper
brake hose guide (marked with a "U"). Install the brake hose
through the opening in each of the guides. Loosely reinstall
the screws (Figure 15).
4. Position the middle and upper hose guides so that the
bottom slit is aligned to the top peak of each arrow graphics
that are laser etched on the fork (represented by the white
arrowheads in Figure 15). Use a 2.5 mm hex bit and a torque
wrench to tighten the screw to 0.9 N.m (8 in-lb).

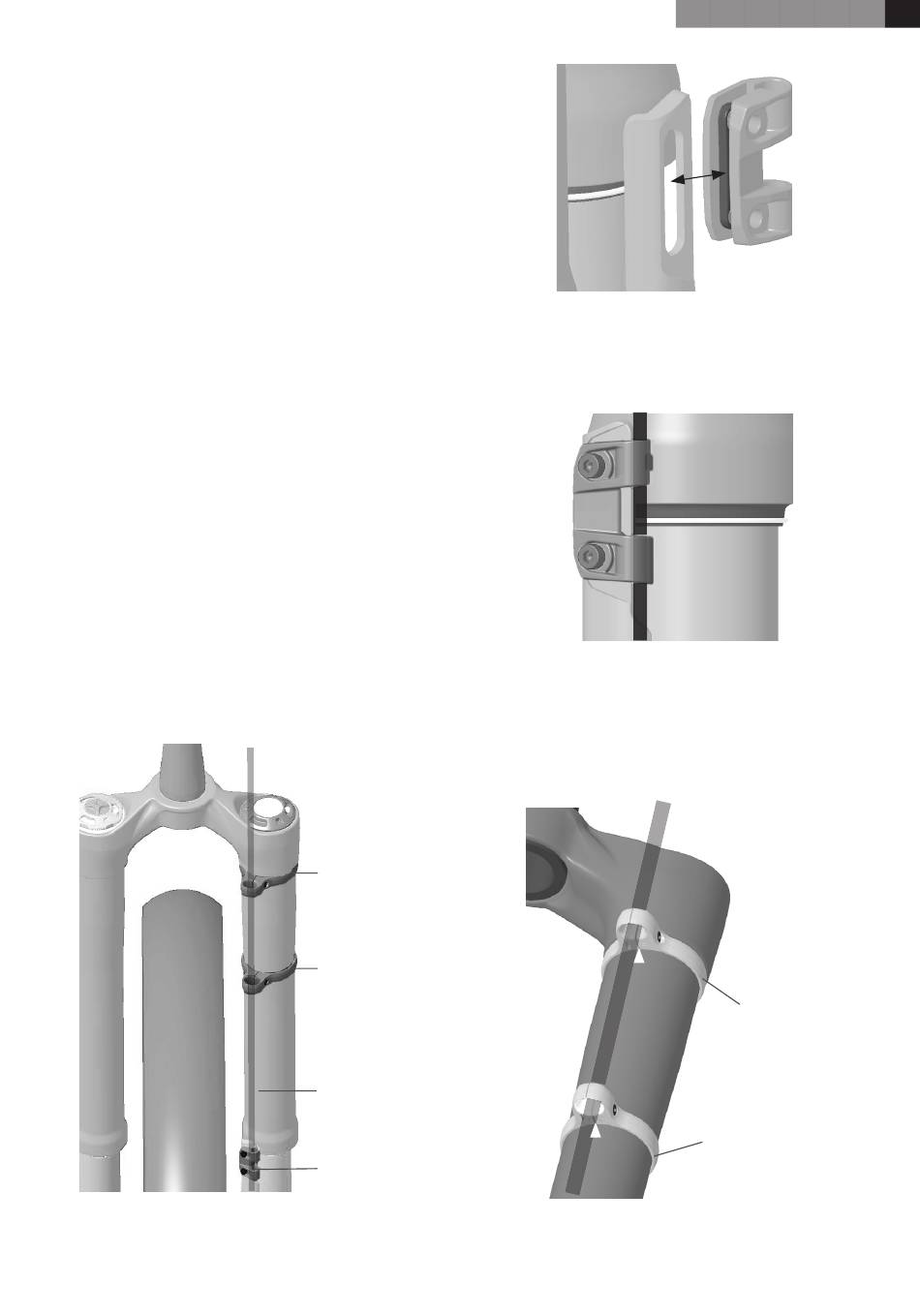

Figure 14: Full view of brake hose routing
through brake hose guides and into mast
Upper brake hose
guide
Middle brake hose
guide
Brake hose
Brake hose clamp
9
ZH
Figure 12: Install clamp onto mast
Figure 13: Install the brake hose
clamp screws
Figure 15: Positioning of brake hose guides
PT ES DE IT FR
Brake hose clamp
Upper brake hose
guide
Middle brake hose
guide
