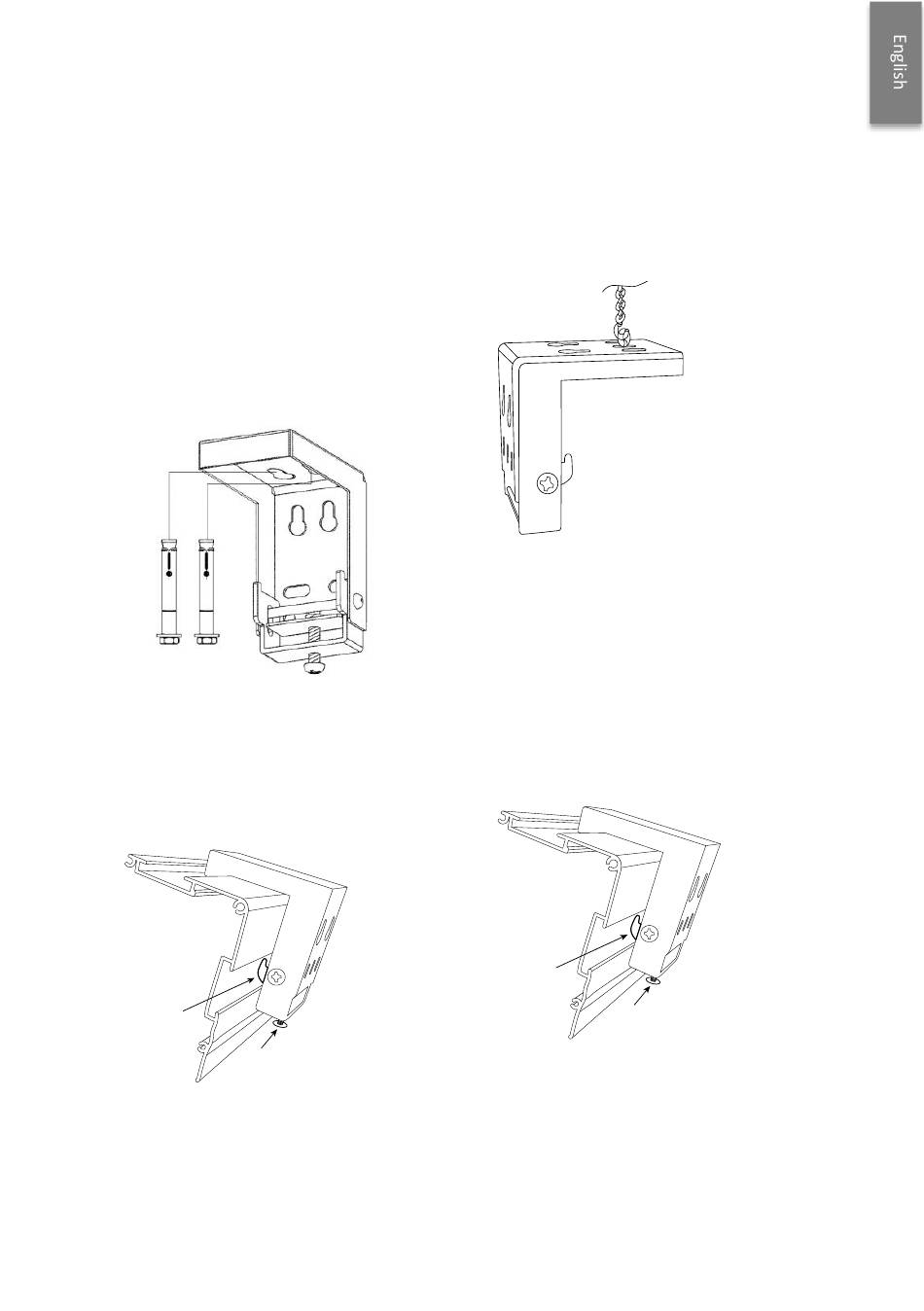

2. Ceiling installation
Please note: To install the screen on a ceil-
ing, the ceiling needs to be able to hold a
load of 50 kg. For installation on concrete
ceilings, only use heavy duty anchors.
1. Mount both mounting brackets and make
sure that you leave an appropriate distance
between the two brackets. The distance be-
tween the two brackets should be double
the distance of the brackets to the outsides
of the screen.
2. Attach the screen casing as shown below
to the mounting brackets. Make sure that the
mounting brackets interlink properly with
the back of the screen (A) and tighten the
screws (B).
A
B
3. Suspension from ceiling
Other than installing the screen directly on
the ceiling, the screen can also be suspended
from the ceiling.
1. Attach the optionally available eyebolts to
the center hole on the mountin brackets.
2. Use a steel cable or steel chain for the
suspension. Attach the cables / chains to the
desired position on the ceiling.
3. Attach the screen casing as shown below
to the mounting brackets. Make sure that the
mounting brackets interlink properly with
the back of the screen (A) and tighten the
screws (B).
A
B
4. Attach the screen with the mounted
brackets to the cables / chains.
23
