INSTALLATION OF THE CHILD CAR SEAT
Height range 100–150 cm, forward-facing

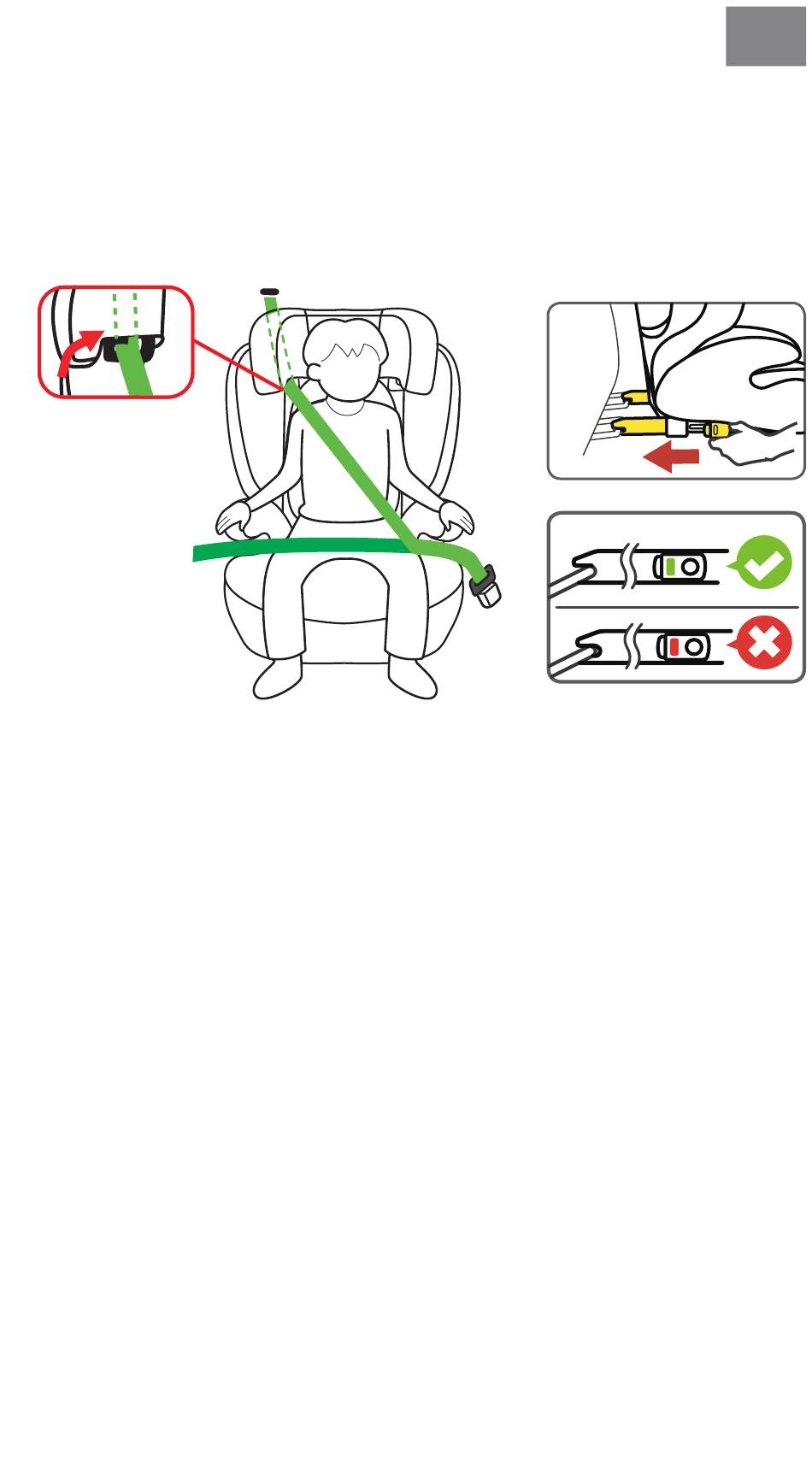

1 . Press the two lateral Isofi x connector buttons in order to extend the
length of the Isofi x connectors.
2 . Guide the Isofi x connectors to the Isofi x anchor points on the car seat
and snap them into place.
3 . Push the child car seat in until it rests securely against the backrest of the
car seat. Ensure that both Isofi x indicators are switched to green.
4 . Thread the diagonal belt of the 3-point car seat belt through the diagonal
belt guide on the headrest of the child car seat.
5 . Thread the lap belt of the car's 3-point belt through the fi rst lap belt guide
(below the armrest) in the seat area of the child car seat.
6 . Put your child in the child car seat.
7 . Adjust the height of the headrest so that the child's head is fully in the
headrest and the diagonal belt comes out through the belt guide at the
level of the child's shoulders.
8 . Fasten the belt buckle of the 3-point seat belt until you hear a click.
9 . Make sure that both the diagonal belt and the lap belt run through the
second lap belt guide (below the armrest) on the child car seat, which
faces the car's seat belt buckle.
10 . Pull on the diagonal strap to tighten it. Make sure that the straps are not
twisted.
Installation without Isofi x:
Alternatively, the child car seat in the 100-150 cm size class can also be
fi tted with the 3-point seat belt only. Attaching the seat with the Isofi x con-
nectors is not absolutely essential but is recommended.
