All the accessories needed for installing the hood are
inside the unit. The hood is convertible and may therefore
be installed as an EXTRACTION or PURIFYING hood.
If the hood is used in the EXTRACTION version, connect
the opening (diameter 125 mm.) (Fig. 1) to an extraction
pipe connected directly to the outside, with a minimum
2
section of 150 cm . The bottom of the hood must be at
least 70 cm. above the hob. IN NO CASE MUST THE
HOOD BE CONNECTED TO DISCHARGE FLUES FOR
OTHER NON ELECTRIC APPLIANCES (hot water
boilers, heaters, stoves, etc.). The unit must not be placed
above stoves with a radiant top plate.

ELECTRICAL CONNECTION

The hood is intended for fixed and permanent installation.
For the line voltage and frequency, see the data plate
inside the appliance. The power cable (type H05VV-
2
F2x0,75mm ) connected to the terminals marked L (line)
and N (neutral) of the hood and fixed with the cable clamp,
must be connected to a suitable, accessible fixed power
point by skilled and authorized personnel who must carry
out installation in compliance with the standards and laws
in force, fitting, upstream from the electric connection, an
omnipolar switch with a contact opening distance of at
least 3 mm.
ONLY FOR U.K.:
WARNING:THIS APPLIANCE MUST NOT BE EARTHED.
This appliance must be connected by competent person,
using fixed wiring via a DOUBLE POLE SWITCHED
FUSED SPUR OUTLET. We recommend that the
appliance is connected by a qualified electrician, who is a
member of the N.I.C.E.I.C. and who will comply with the
I.E.E. and local regolations. The wires in the mains lead
are coloured in accordance with the following code:
Blue = Neutral, Brown = Live.
As the colours of the wires in the mains lead for the
appliance, may not correspond with the coloured markings
identifying the terminals in your spur box, proceed as
follows:
1) The wire which is coloured blue must be connected to
the terminal marked N (Neutral), or coloured Black.
2) The wire which is coloured brown must be connected
to the terminal marked L (Live), or coloured Red. The
manufacturer declines all responsibility in the event of
failure to observe all the accident-prevention
regulations in force which are necessary for normal
use and regular operation of the electric system.

TYPE OF OPERATION

Suction operation

Fit the union N to the upper part of the hood using the two
screws supplied in a packet inside the packing (fig. 1).
Using a 125 mm diameter pipe, connect the union N on
the upper part of the hood (fig. 1) to the discharge outlet
for cooking vapours with a cross-section of at least
150cm 2 . If there is no discharge outlet and the hood is to
be fitted to an outside wall of the building, make a hole in
the wall that is large enough to fit a wind and rain-proof
shutter with a cross section of at least 150 cm
this to the outlet union of the unit by means of a pipe.

INSTALLATION

E
2 and connect
6
R
N
E

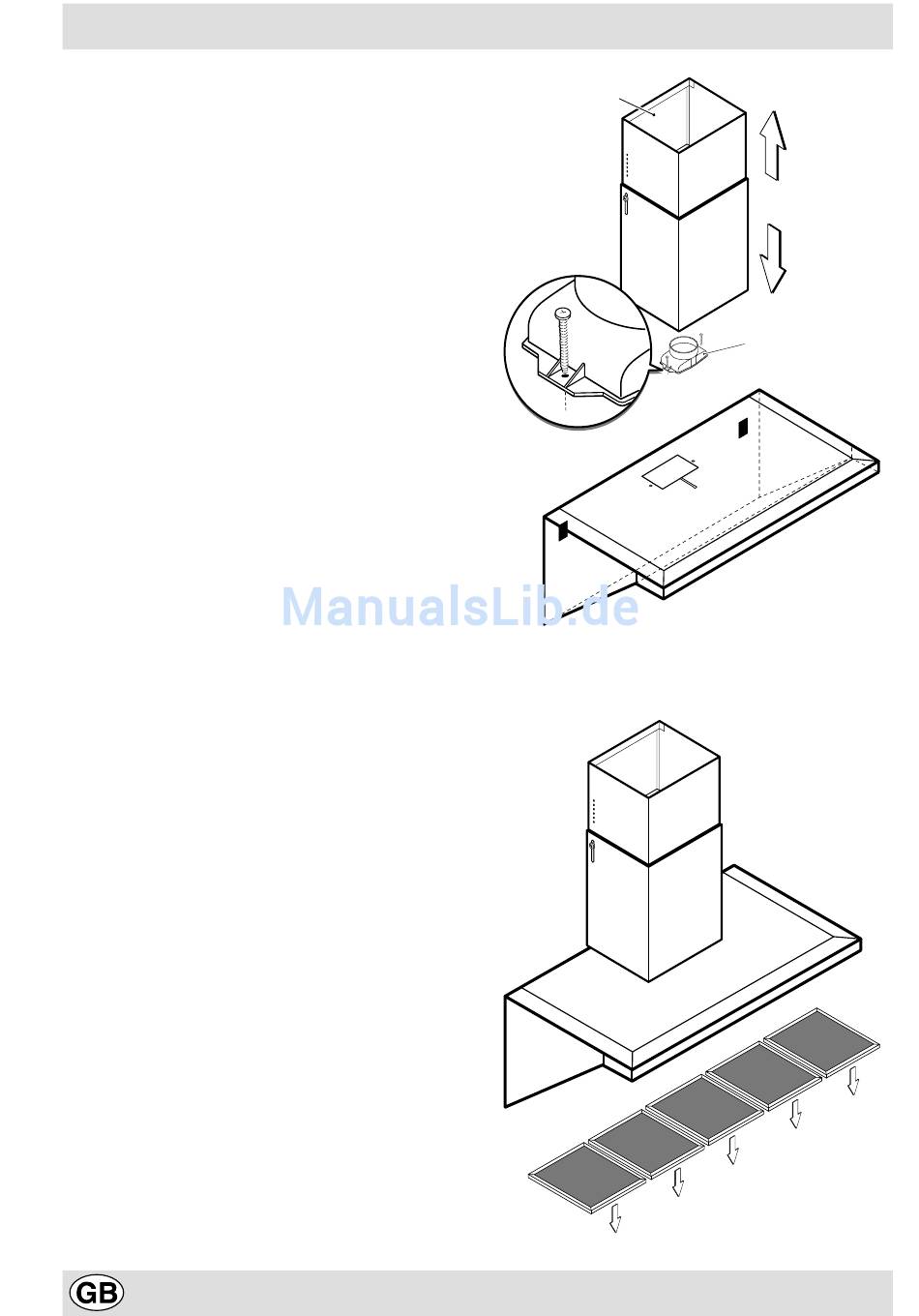

Fig. 1
Fig. 2
