2.2. Installation example Yamaha PW:
Required tools:
•
3 mm allen key
•
6 mm allen key
•
small screwdriver

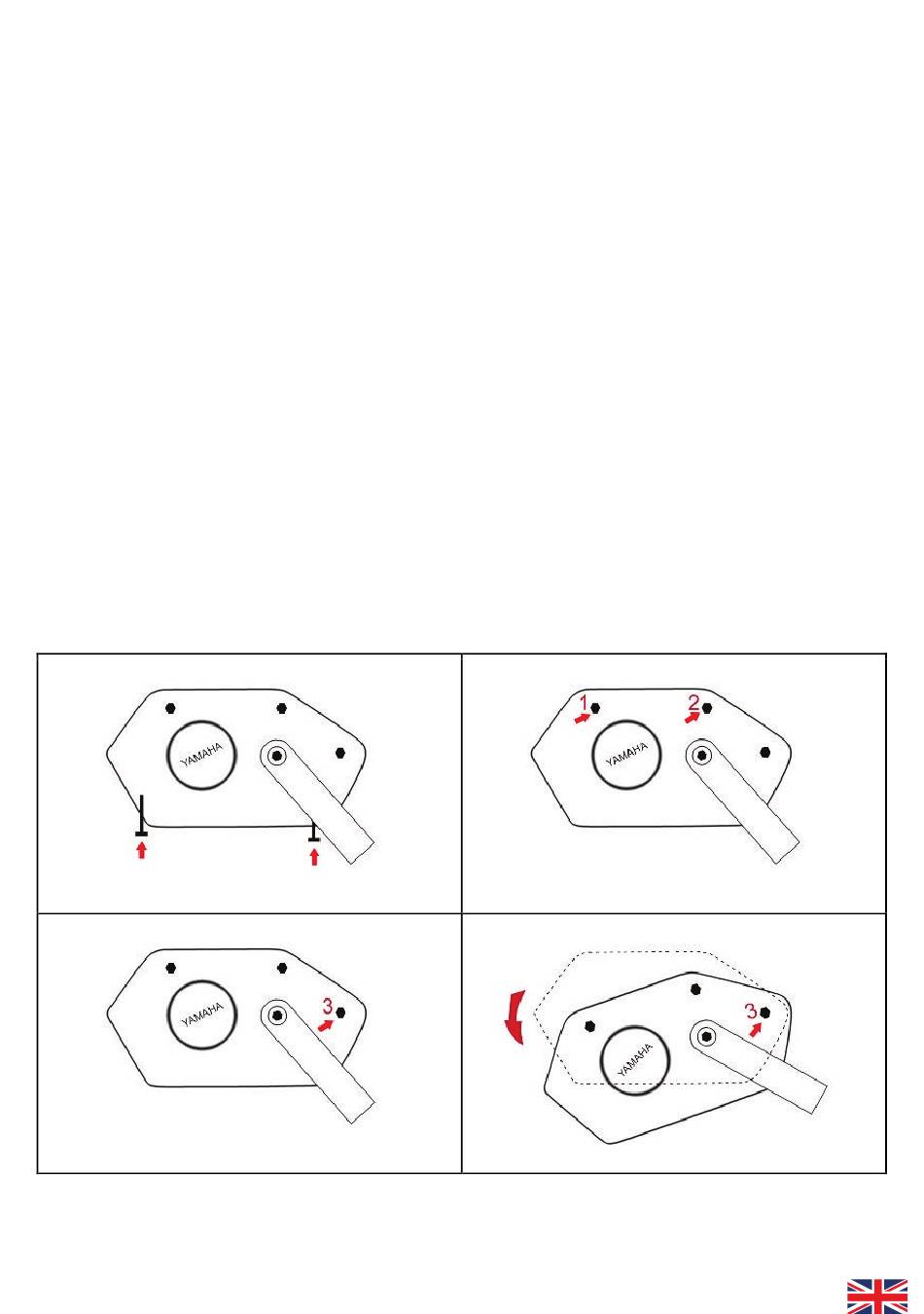

Unscrew the three 3 mm allen screws (picture 5). It is possible that these are provided with a screw-locking device.
In this case, heat the screws first.
Remove the two 6 mm allen screws 1 and 2 (picture 6). Unscrew the third 6 mm allen screw (picture 7) as far as
possible until the motor can be swung out of the frame (picture 8). Now you can see the plug connections. Disconnect
the connector of the speed sensor by pressing the detent with the small screwdriver.
Now close the sIMPLEk between motor and speed sensor. Ensure that the connectors are correctly seated (audible
clicking noise when snapping into place).
Then the motor can be fixed in the frame again and all screws can be installed.
