914 FIXED FILTER BANK

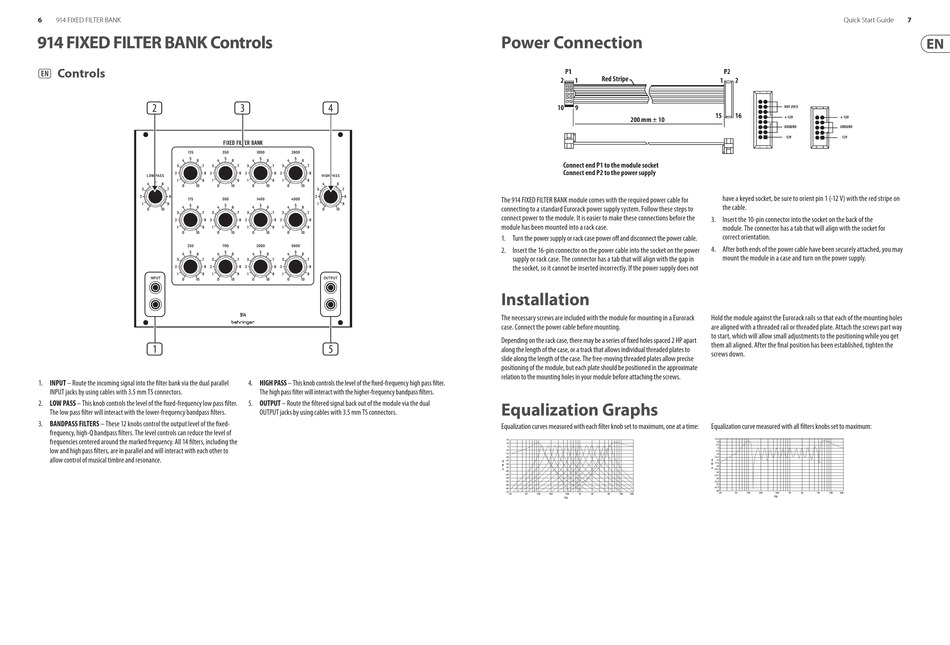

914 FIXED FILTER BANK Controls
(EN) Controls
(2)
(1)
1. INPUT – Route the incoming signal into the filter bank via the dual parallel
INPUT jacks by using cables with 3.5 mm TS connectors.
2. LOW PASS – This knob controls the level of the fixed-frequency low pass filter.
The low pass filter will interact with the lower-frequency bandpass filters.
3. BANDPASS FILTERS – These 12 knobs control the output level of the fixed-
frequency, high-Q bandpass filters. The level controls can reduce the level of
frequencies centered around the marked frequency. All 14 filters, including the
low and high pass filters, are in parallel and will interact with each other to
allow control of musical timbre and resonance.
(3) (4)
(5)
4. HIGH PASS – This knob controls the level of the fixed-frequency high pass filter.
The high pass filter will interact with the higher-frequency bandpass filters.
5. OUTPUT – Route the filtered signal back out of the module via the dual
OUTPUT jacks by using cables with 3.5 mm TS connectors.
Power Connection
The 914 FIXED FILTER BANK module comes with the required power cable for
connecting to a standard Eurorack power supply system. Follow these steps to
connect power to the module. It is easier to make these connections before the
module has been mounted into a rack case.
1. Turn the power supply or rack case power off and disconnect the power cable.
2. Insert the 16-pin connector on the power cable into the socket on the power
supply or rack case. The connector has a tab that will align with the gap in
the socket, so it cannot be inserted incorrectly. If the power supply does not
Installation
The necessary screws are included with the module for mounting in a Eurorack
case. Connect the power cable before mounting.
Depending on the rack case, there may be a series of fixed holes spaced 2 HP apart
along the length of the case, or a track that allows individual threaded plates to
slide along the length of the case. The free-moving threaded plates allow precise
positioning of the module, but each plate should be positioned in the approximate
relation to the mounting holes in your module before attaching the screws.
Equalization Graphs
Equalization curves measured with each filter knob set to maximum, one at a time:
+5
+0
-5
-10
-15
-20
d -25
B -30
-35
u
-40
-45
-50
-55
-60
-65
-70
20 50 100 200 500 1k 2k 5k 10k 20k
Hz
Quick Start Guide
have a keyed socket, be sure to orient pin 1 (-12 V) with the red stripe on
the cable.
3. Insert the 10-pin connector into the socket on the back of the
module. The connector has a tab that will align with the socket for
correct orientation.
4. After both ends of the power cable have been securely attached, you may
mount the module in a case and turn on the power supply.
Hold the module against the Eurorack rails so that each of the mounting holes
are aligned with a threaded rail or threaded plate. Attach the screws part way
to start, which will allow small adjustments to the positioning while you get
them all aligned. After the final position has been established, tighten the
screws down.
Equalization curve measured with all filters knobs set to maximum:
+2.5
+0
-2.5
-5
-7.5
-10
-12.5
d
-15
B -17.5
-20
u
-22.5
-25
-27.5
-30
-32.5
-35
-37.5
-40
20 50 100 200 500 1k 2k 5k 10k 20k
Hz
