Levelling Platform
With Drive/Level/Lift Switch in LEVEL hold the
Control Lever so the Interlock Lever is depressed.
Center bubble in bubble level using Fore/Aft and
Left/Right Switches. To level the platform forward it
may be necessary to elevate the platform slightly.
Raising and Lowering The Platform
1. Position the Drive/Level/Lift Switch to LIFT.
2. While holding the Control Lever so the Interlock
Lever is depressed, push the Control Lever
slowly to UP to raise the platform. Pushing the
Control Lever farther increases the lift speed. If
the platform does not elevate above the inter-
lock height, about 2.44 m (8 ft.), fully lower
platform and re-level.
3. When the work task is completed, position the
Drive/Level/Lift Switch to LIFT and lower the
platform by pulling back on the Control Lever
until the platform is fully lowered.
Travel With Work Platform Elevated
Travel with platform elevated ONLY on firm flat
surfaces.
Note: The Work Platform will travel at reduced
speed when in the elevated position. SL30
Models will only drive while elevated when the
Platform is below 8m (26 ft.) in height.
1. Check that the route is clear of persons, ob-
structions, holes and drop-offs, is level and
capable of supporting the wheel loads.
2. Check clearances above, below and to the
sides of platform.
3. Position the Drive/Level/Lift Switch to the
DRIVE position.
4. Push the Control Lever to FORWARD or
REVERSE for the desired direction of travel.
If the machine quits driving and the Tilt Alarm
sounds, immediately lower and re-level the
platform before attempting to elevate again.
Emergency Lowering
The Emergency Lowering Switch is located on
the left hand side of the chassis through the
cutout in the Control Module cover.
1. Open the Emergency Lowering Valve by push-
ing down on the Emergency Lowering Switch.
2. Once the platform is fully lowered, release the
switch to close the Emergency Lowering Valve.
The platform will not elevate if the Emergency
Lowering Valve has not been closed.
After Use Each Day
1. Ensure that the platform is fully lowered.
2. Park the machine on level ground, preferably
under cover, secure against vandals, children
or unauthorized operation.
3. Turn the Key Switch to OFF and remove the
key to prevent unauthorized operation.
Parking Brake Release (Figure 3)
Perform the following only when the machine will
not operate under its own power and it is neces-
sary to move the machine or when towing the
machine up a grade or wenching onto a trailer to
transport.
1. Close the needle valve by turning the knob
clockwise.
2. Pump the Brake Release Pump until the Parking
Brakes release and the wheels can be turned.
3. The machine will now roll when pushed or
pulled.
4. Be sure to open the needle valve and verify
that the Parking Brakes have engaged before
the machine is operated.
Never operate work platform with the
Parking Brakes inoperative. Serious injury
or damage could result.
Never tow faster than .3 m/sec. (1 ft./sec.).
Needle Valve

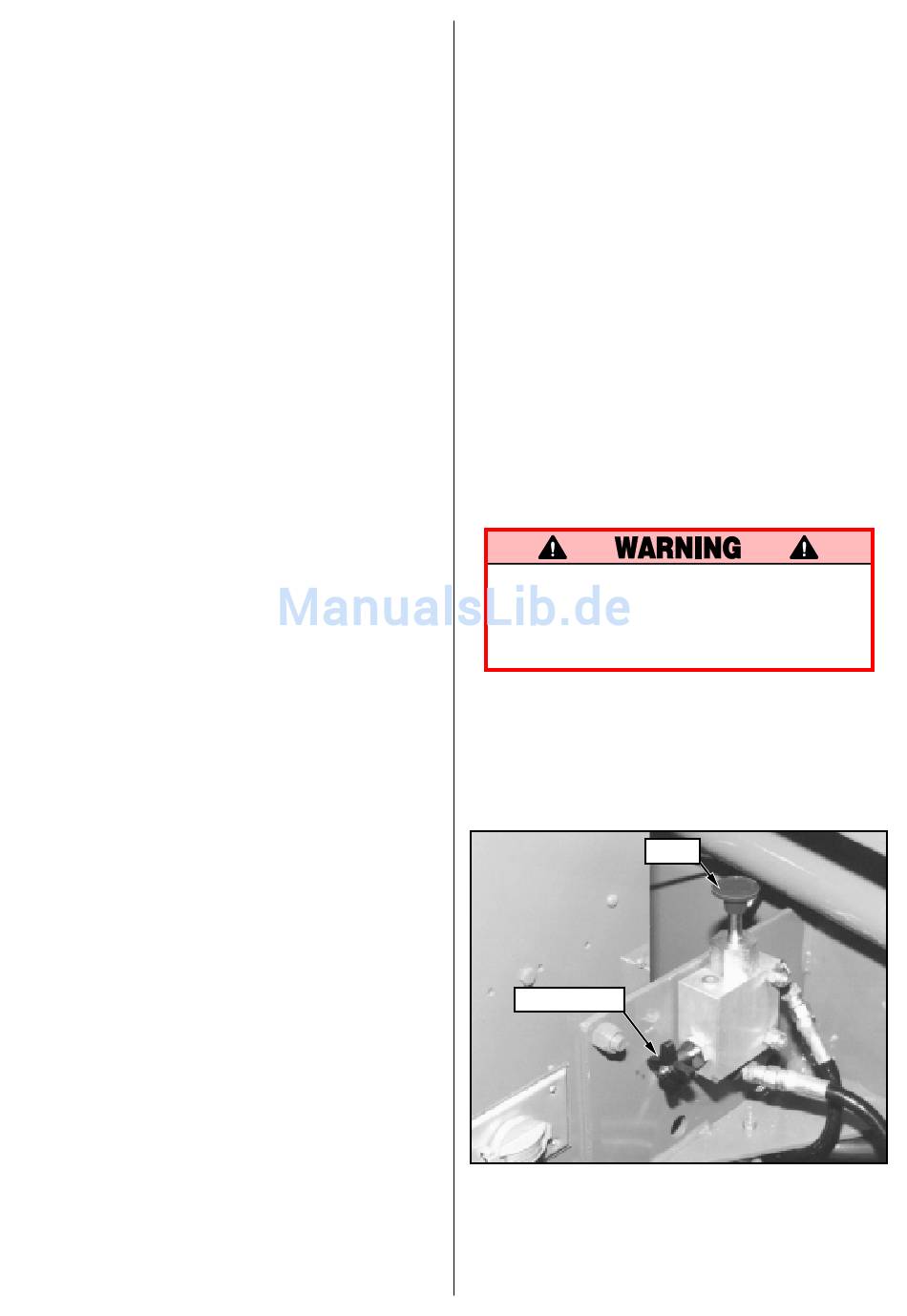

Figure 3: Brake Release Pump
5
Pump
