960 SEQUENTIAL CONTROLLER
24-Stage Operation

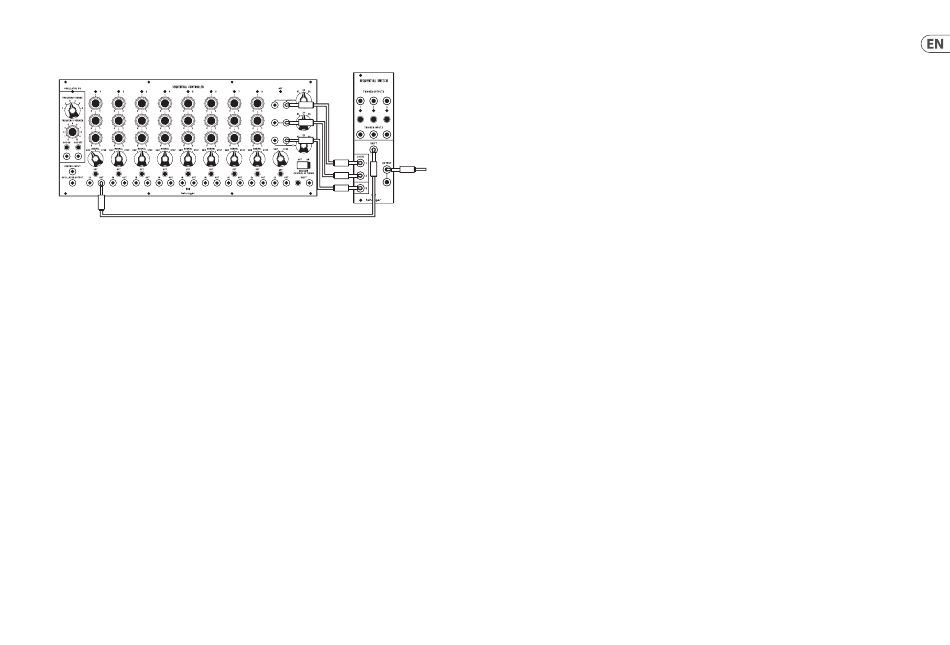

The main purpose of the 962 sequential switch module is to alternately select
between the 3 output rows of the 960 to create a 24-stage sequence. Patch the
trigger OUT jack from stage 1 into the SHIFT input of the 962. Patch the 3 output
rows A, B, C from the 960 to the 962's 3 SIG inputs. Now the 962's output will be
the 24-stage sequencer output, or leave out the C row patch cable for 16 steps.
Tuning Procedure
1. Power up the 960 module and press the OSC ON button. Allow the unit to warm
up for a few minutes.
2. Prepare the following control settings:
a. Set the 3RD ROW CONTROL OF TIMING switch to off.
b. Set the FREQUENCY rotary switch to 6 on the scale.
c. Make sure no jack is connected to the oscillator CONTROL INPUT.
3. Set the FREQUENCY VERNIER for exactly 100 Hz at the OSCILLATOR OUTPUT
measured with an accurate frequency meter and adjust the DUTY CYCLE ADJ for
90% duty cycle.
4. Fine-tune the 960 oscillator's high frequency scaling as follows:
a. Apply exactly +2.0 VDC to the CONTROL INPUT jack (A 921A module
can be used to supply the +2.0 VDC or use a similar low-impedance
stable-voltage source).
b. Trim the 960 SCALE ADJ trimmer to set 400 Hz, then remove the +2.00 V
input and readjust the 960 FREQ VERNIER to 100 Hz.
c. Repeat this cycle until both 100 Hz and 400 Hz are accurate to ±1 Hz
when the +2.00 VDC is plugged in and out of CONTROL INPUT jack.
OUT TO
ANOTHER
MODULE
5. Fine-tune the 960 oscillator's low frequency scaling as follows:
a. Apply exactly -2.0 VDC to the CONTROL INPUT jack (A 921A module
can be used to supply the -2.00 VDC or use a similar low-impedance
stable-voltage source).
b. Trim the 960 LOW END ADJ trimmer to set 25 Hz, then remove the
-2.00 V input and readjust the 960 FREQ VERNIER to 100 Hz.
c. Repeat this cycle until both 100 Hz and 25 Hz are accurate to ±1 Hz
when the -2.00 VDC is plugged in and out of CONTROL INPUT jack.
6. Set the 960 oscillator's maximum high frequency as follows:
a. Make sure no jack is connected to the CONTROL INPUT.
b. Set the FREQUENCY VERNIER fully clockwise (10 on the scale).
c. Adjust the FREQUENCY ADJUST trimmer to set exactly 500 Hz at the
OSCILLATOR OUTPUT.
d. Apply exactly +2.0 VDC to the CONTROL INPUT jack (this may stop the
oscillator running).
e. Adjust the FREQ STOP ADJ trimmer until the oscillator starts running and
set the maximum frequency to around 550 Hz.
f. Disconnect the +2.0 VDC CONTROL INPUT and check the oscillator
frequency is 500 Hz. Adjust the FREQUENCY ADJUST trimmer if required.
g. Apply exactly +2.0 VDC to the CONTROL INPUT jack, if the oscillator stays
running, the trimming is completed. If not, repeat as required.
