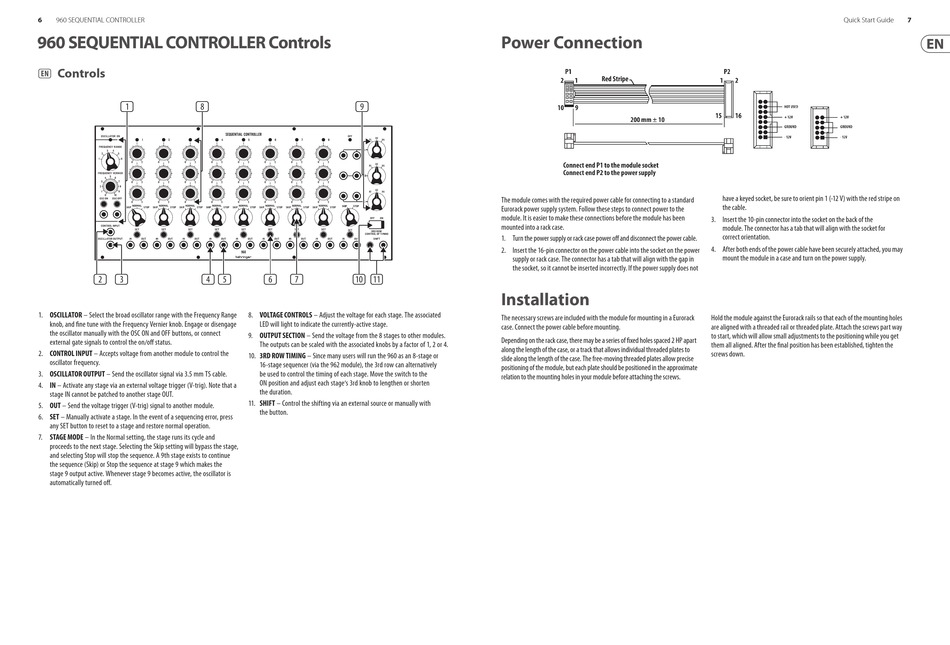

6
960 SEQUENTIAL CONTROLLER
960 SEQUENTIAL CONTROLLER Controls
(EN) Controls
(1)
(8)
(2) (3)
(4) (5)
1. OSCILLATOR – Select the broad oscillator range with the Frequency Range
knob
,
and fine tune with the Frequency Vernier knob
.
Engage or disengage
the oscillator manually with the OSC ON and OFF buttons
,
or connect
external gate signals to control the on
/
off status
.
2. CONTROL INPUT – Accepts voltage from another module to control the
oscillator frequency
.
3. OSCILLATOR OUTPUT – Send the oscillator signal via 3
5 mm TS cable
.
4. IN – Activate any stage via an external voltage trigger
(
V
-
trig
).
Note that a
stage IN cannot be patched to another stage OUT
.
5. OUT – Send the voltage trigger
V
trig
signal to another module
(
-
)
.
6. SET – Manually activate a stage
In the event of a sequencing error
.
,
any SET button to reset to a stage and restore normal operation
.
7. STAGE MODE – In the Normal setting
,
the stage runs its cycle and
proceeds to the next stage
.
Selecting the Skip setting will bypass the stage
and selecting Stop will stop the sequence
.
A 9th stage exists to continue
the sequence
(
Skip
)
or Stop the sequence at stage 9 which makes the
stage 9 output active
.
Whenever stage 9 becomes active
,
the oscillator is
automatically turned off
.
(9)
(6) (7)
(10) (11)
8. VOLTAGE CONTROLS – Adjust the voltage for each stage
LED will light to indicate the currently
-
active stage
.
9. OUTPUT SECTION – Send the voltage from the 8 stages to other modules
The outputs can be scaled with the associated knobs by a factor of 1
10. 3RD ROW TIMING – Since many users will run the 960 as an 8
16
stage sequencer
via the 962 module
the 3rd row can alternatively
-
(
),
be used to control the timing of each stage
Move the switch to the
.
.
ON position and adjust each stage
s 3rd knob to lengthen or shorten
'
the duration
.
11. SHIFT – Control the shifting via an external source or manually with
the button
.
press
,
Power Connection
The module comes with the required power cable for connecting to a standard
Eurorack power supply system. Follow these steps to connect power to the
module. It is easier to make these connections before the module has been
mounted into a rack case.
1. Turn the power supply or rack case power off and disconnect the power cable.
2. Insert the 16-pin connector on the power cable into the socket on the power
supply or rack case. The connector has a tab that will align with the gap in
the socket, so it cannot be inserted incorrectly. If the power supply does not
Installation
.
The associated
The necessary screws are included with the module for mounting in a Eurorack
case. Connect the power cable before mounting.
.
Depending on the rack case, there may be a series of fixed holes spaced 2 HP apart
2 or 4
,
.
along the length of the case, or a track that allows individual threaded plates to
stage or
-
slide along the length of the case. The free-moving threaded plates allow precise
positioning of the module, but each plate should be positioned in the approximate
relation to the mounting holes in your module before attaching the screws.
Quick Start Guide
have a keyed socket, be sure to orient pin 1 (-12 V) with the red stripe on
the cable.
3. Insert the 10-pin connector into the socket on the back of the
module. The connector has a tab that will align with the socket for
correct orientation.
4. After both ends of the power cable have been securely attached, you may
mount the module in a case and turn on the power supply.
Hold the module against the Eurorack rails so that each of the mounting holes
are aligned with a threaded rail or threaded plate. Attach the screws part way
to start, which will allow small adjustments to the positioning while you get
them all aligned. After the final position has been established, tighten the
screws down.
7
