3.2

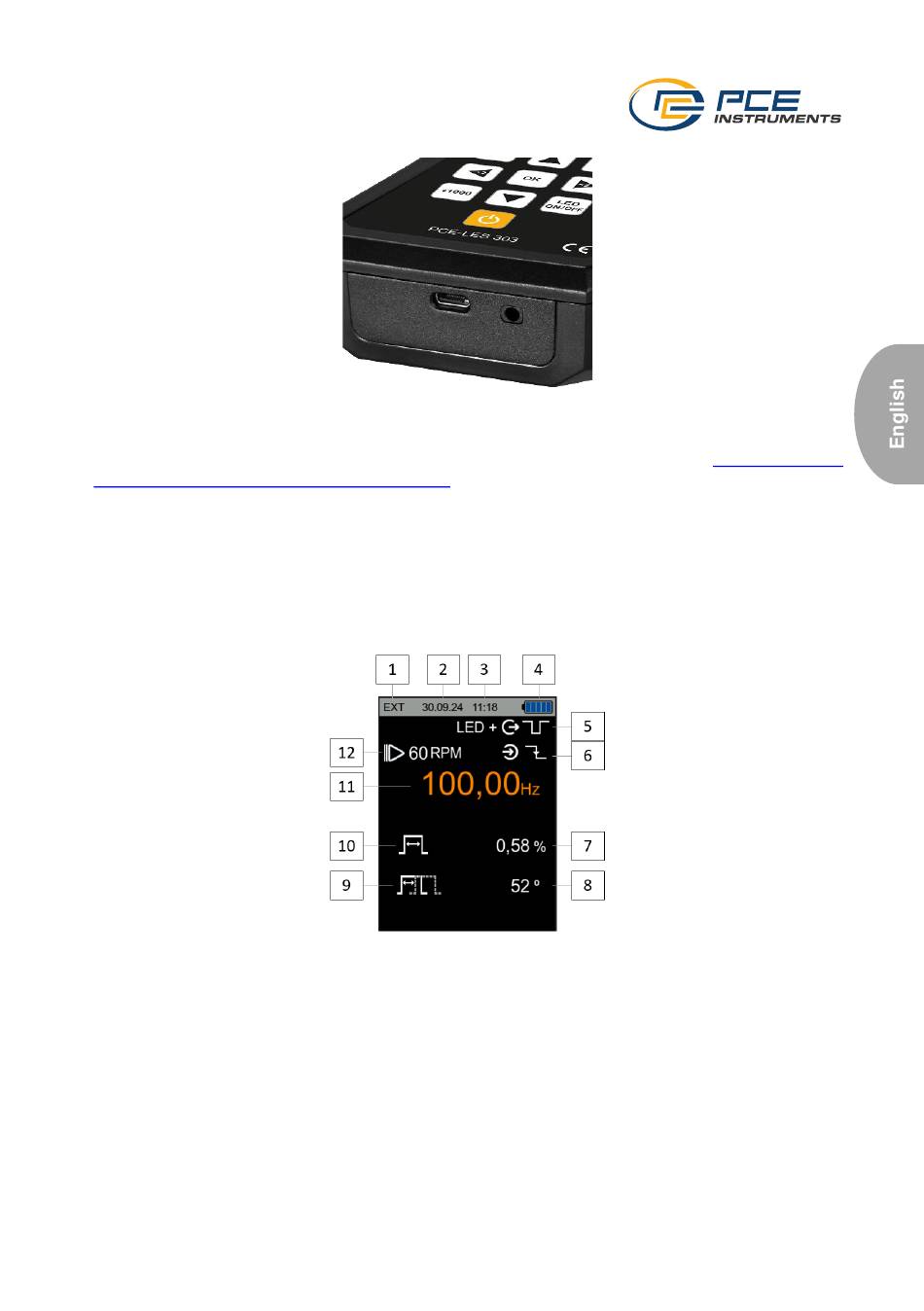

Interfaces

At the bottom side of the device, there is a USB-C connector. This connector is used to charge
the internal battery of the meter and can also be used to update its firmware by means of our
update software
instruments.com/english/download-win_4.htm
Next to the USB-C type connector there is a 3.5 mm jack connector. This connector is used for
the external trigger input/output modes available in the PCE-LES 303 series.
Note:
The stroboscope can also be charged or operated via a power bank.
3.3

Display

1. EXT indicator something has been connected to trigger input/output
2. Date
3. Time
4. Battery status
5. Trigger output indicator + NPN or PNP icon
6. Trigger input indicator + edge detection icon
7. Duty cycle value and unit
8. Phase shift value and unit
9. Phase shift icon
10. Duty cycle icon
11. Frequency value and unit
12. Slow motion icon and value
which can be
© PCE Instruments
42
downloaded here: https://www.pce-
