Observe the safety instructions supplied with the device!
They are also available at the following Internet address:
https://download.axing.com/BAs/Sicherheitshinweise_9sprachig.pdf
Use the device only as described in these operating instructions and in
particular in accordance with the state of the art.
If the device is used for other purposes, no warranty will be assumed!
EU Declaration of Conformity
Hereby AXING AG declares that the CE marked products comply with the
valid EU guidelines.
WEEE Nr. DE26869279 | Electrical and electronic components must not be
disposed of as residual waste, it must be disposed of separately.
Technical improvements, changes in design, printing and other errors reserved.
Page 1 of 2 | AXING-QA_MK-8-16-0xI.pdf | 2024-07-22

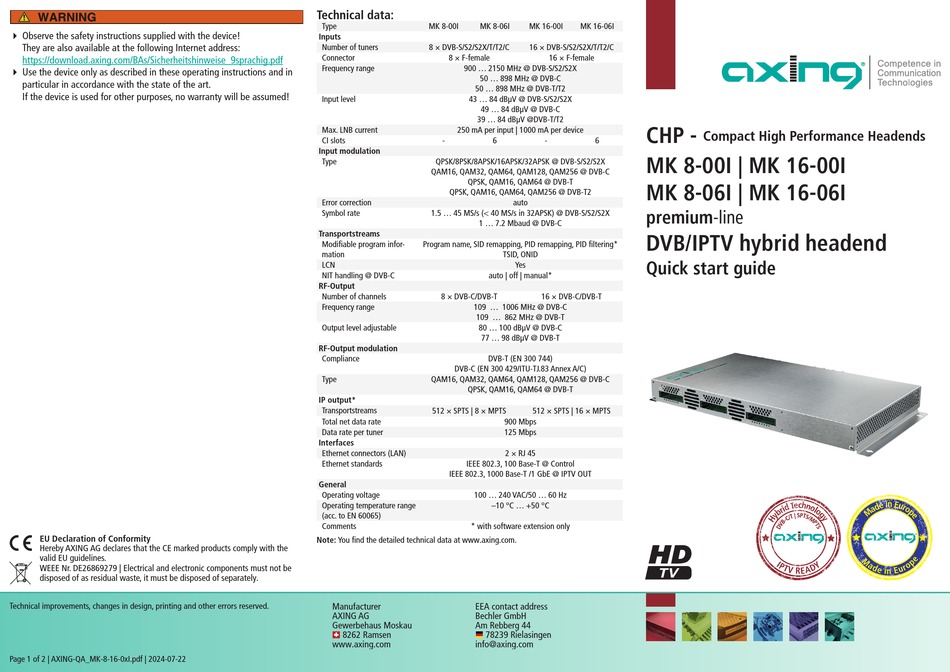

Technical data:
Type
MK 8-00I
MK 8-06I
Inputs
Number of tuners
8 × DVB-S/S2/S2X/T/T2/C
Connector
8 × F-female
Frequency range
900 ... 2150 MHz @ DVB-S/S2/S2X
50 ... 898 MHz @ DVB-C
50 ... 898 MHz @ DVB-T/T2
Input level
43 ... 84 dBµV @ DVB-S/S2/S2X
49 ... 84 dBµV @ DVB-C
39 ... 84 dBµV @DVB-T/T2
Max. LNB current
250 mA per input | 1000 mA per device
CI slots
-
6
Input modulation
Type
QPSK/8PSK/8APSK/16APSK/32APSK @ DVB-S/S2/S2X
QAM16, QAM32, QAM64, QAM128, QAM256 @ DVB-C
QPSK, QAM16, QAM64 @ DVB-T
QPSK, QAM16, QAM64, QAM256 @ DVB-T2
Error correction
Symbol rate
1.5 ... 45 MS/s (< 40 MS/s in 32APSK) @ DVB-S/S2/S2X
1 ... 7.2 Mbaud @ DVB-C
Transportstreams
Modifiable program infor-
Program name, SID remapping, PID remapping, PID filtering*
mation
LCN
NIT handling @ DVB-C
auto | off | manual*
RF-Output
Number of channels
8 × DVB-C/DVB-T
Frequency range
109 ... 1006 MHz @ DVB-C
109 ... 862 MHz @ DVB-T
Output level adjustable
80 ... 100 dBµV @ DVB-C
77 ... 98 dBµV @ DVB-T
RF-Output modulation
Compliance
DVB-T (EN 300 744)
DVB-C (EN 300 429/ITU-TJ.83 Annex A/C)
Type
QAM16, QAM32, QAM64, QAM128, QAM256 @ DVB-C
QPSK, QAM16, QAM64 @ DVB-T
IP output*
Transportstreams
512 × SPTS | 8 × MPTS
Total net data rate
Data rate per tuner
Interfaces
Ethernet connectors (LAN)
Ethernet standards
IEEE 802.3, 100 Base-T @ Control
IEEE 802.3, 1000 Base-T /1 GbE @ IPTV OUT
General
Operating voltage
100 ... 240 VAC/50 ... 60 Hz
Operating temperature range
–10 °C ... +50 °C
(acc. to EN 60065)
Comments
* with software extension only
Note: You find the detailed technical data at www.axing.com.
Manufacturer
EEA contact address
AXING AG
Bechler GmbH
Gewerbehaus Moskau
Am Rebberg 44
8262 Ramsen
78239 Rielasingen
www.axing.com
info@axing.com
MK 16-00I
MK 16-06I
16 × DVB-S/S2/S2X/T/T2/C
16 × F-female
CHP -
-
6
MK 8-00I | MK 16-00I
MK 8-06I | MK 16-06I
auto
premium-line
DVB/IPTV hybrid headend
TSID, ONID
Quick start guide
Yes
16 × DVB-C/DVB-T
512 × SPTS | 16 × MPTS
900 Mbps
125 Mbps
2 × RJ 45
Compact High Performance Headends
