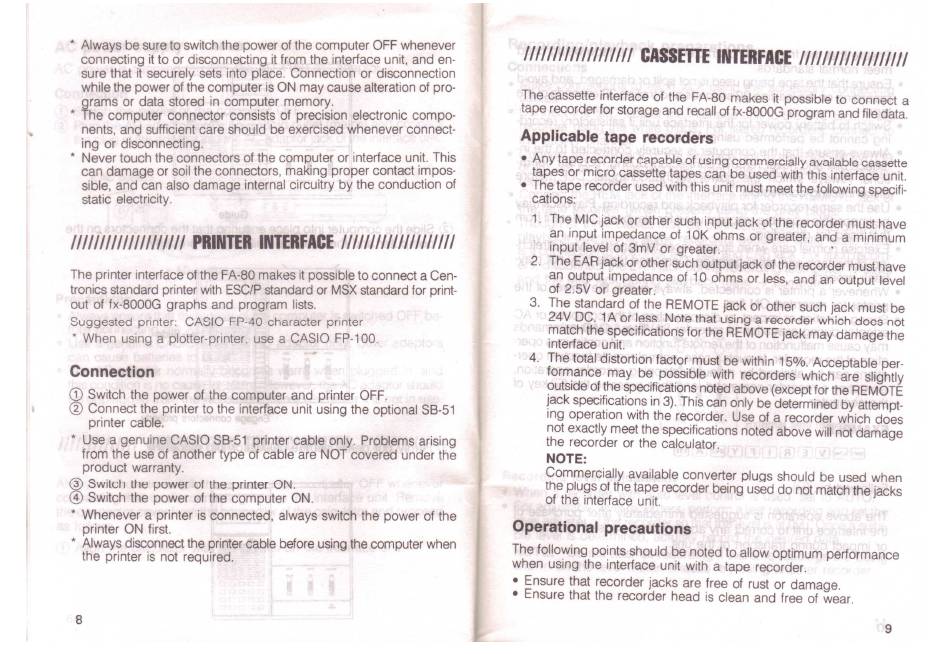

Always be sure to switch the power of the computer OFF whenever
connecting
it to or disconnecting
sure that it securely sets into place. Connection or disconnection
while the power of the computer is ON may cause alteration of pro-
arams or data stored in computer
* the computer connector consistsof precision electroniccompo-
nents, and sufficient
care should
ing or disconnecting.
* Never touch the connectors
of the computer or interface unit. This
can damage or soil the connectors, making proper contact impos-
sible, and can also damage internal circuitry by the conduction of
static electricity.
//////////////1/////
PRINTER INTERFACE 1///////////////////
The printer interface of the FA-80 makes it possible to connect a Cen-
tronics standard printer with ESC/P standard or MSX standard for print-
out of fx-8000G graphs and program lists.
Suggested
printer: CASIO FP-40 character
* When using a plotter-printer,
Connection
1 Switch the power of the computer and printer OFF.
2 Connect the printer to the interface unit using the optional SB-51
printer cable.
* Use a genuine CASIO SB-51 printer cable only. Problems arising
from the use of another type of cable are NOT covered under the
product warranty.
@ Switch the power of the printer ON.
@ Switch the power of the computer ON.
* Whenever a printer is connected, always switch the power of the
printer ON first.
* Always disconnect the printer cable before using the computer when
the printer is not required.
8
it from the interface unit, and en-
memory.
be exercised
whenever
connect-
printer
use a CASIO FP-IOO.
1////////////////// CASSETTE
The cassetteinterfaceof the FA-80makesit possible to connecta
taperecorder forstorage andrecall offx-8000G program andfiledata.
Applicable tape recorders
• Anytaperecorder capable of using commercially available c assette
tapes or micro cassette tapes can be used with this interface unit.
• The tape recorder used with thisunitmust m eet thefollowing specifi-
cations:
1.
TheMICjackorothersuchinputjackoftherecorder m usthave
an input impedanceof 10Kohmsor greater,and a minimum
input level of 3mV or greater.
2.
TheEAR jackorothersuchoutput j ackoftherecorder m usthave
an outputimpedance o f 10ohmsor less,andan outputlevel
of 2.5V or greater.
Thestandard o ftheREMOTE jackorother suchjackmustbe
3.
24VDC,IA or less.Notethatusinga recorderwhichdoesnot
match thespecifications
fortheREMOTE jackmaydamage t he
interface
unit.
Thetotal d istortion f actor m ust b ewithin 15%.Acceptable per-
4.
formance m aybe possible w ithrecorders which areslightly
outside ofthespecifications noted above (except fortheREMOTE
jackspecifications
in3).This can only bedetermined
ing operation withthe recorder.Useof a recorderwhichdoes
notexactly m eet t hespecifications
the recorder or the calculator.
NOTE:
Commercially a vailable converterplugsshouldbe usedwhen
theplugs o fthe tape recorder being used donotmatch t hejacks
of the interface unit.
Operational precautions
Thefollowing p oints should benoted toallow optimum performance
when usingthe interfaceunit with a tape recorder.
• Ensure thatrecorder jacksarefreeof rustor damage.
• Ensurethat the recorder head is clean and free of wear.
INTERFACE
1//////////////////
byattempt-
noted above willnotdamage
9
