20

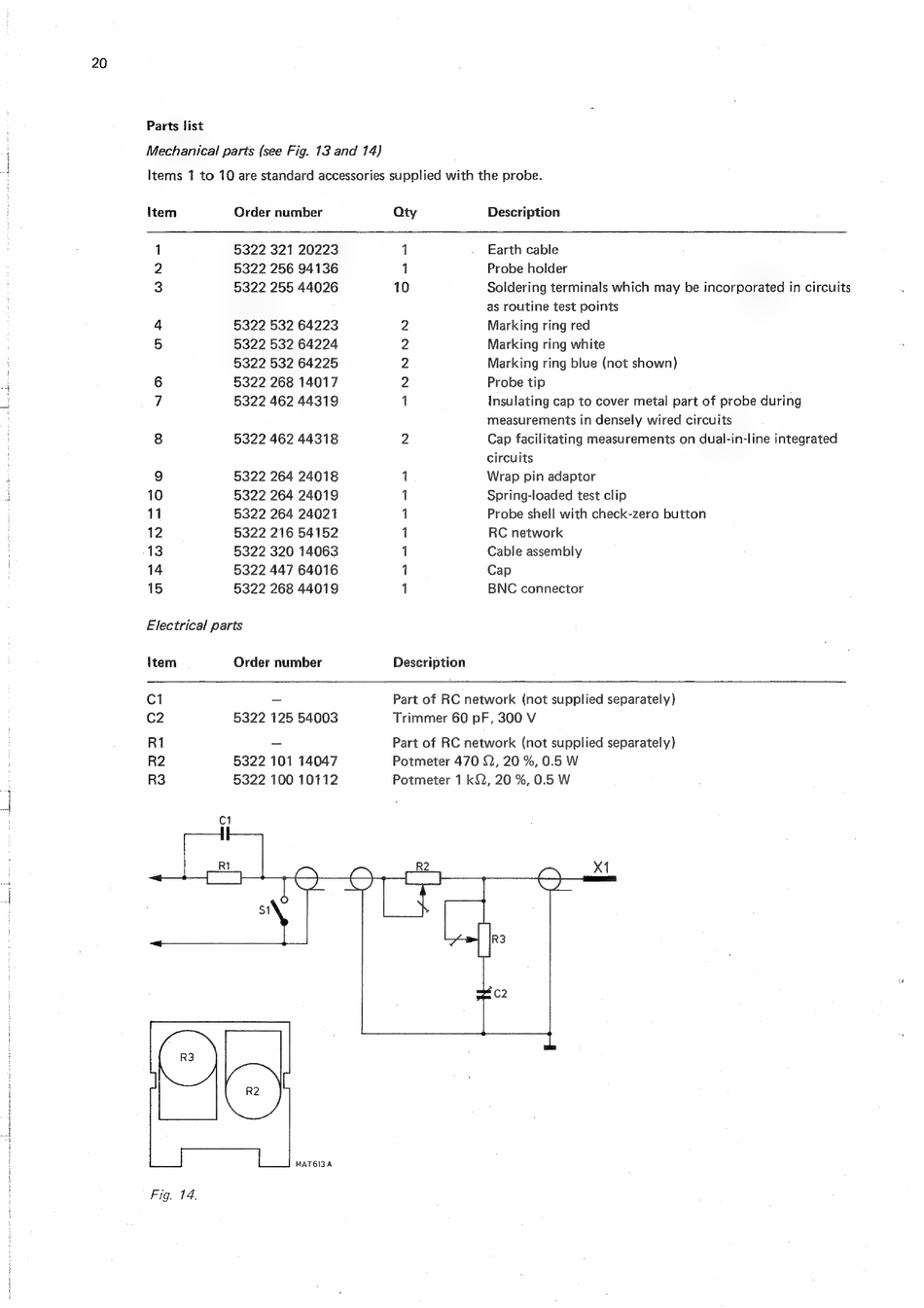

Parts list
Mechanical parts (see Fig. 13 and 14)
Items 1 to 10 are standard accessories supplied with the probe.
Item Order number Oty Description
1 5322 321 20223 1 Earth cable
2 5322 256 94136 1 Probe holder
3 5322 255 44026 10 Soldering terminals which may be incorporated in circuits
as routine test points
4 5322 532 64223 2 Marking ring red
5 5322 532 64224 2 Marking ring white
5322 532 64225 2 Marking ring blue (not shown)
6 5322 268 14017 2 Probe tip
7 5322 462 44319 1 Insulating cap to cover metal part of probe during
measurements in densely wired circuits
8 5322 462 44318 2 Cap facilitating measurements on dual-in-line integrated
circuits
9 5322 264 24018 1 Wrap pin adaptor
10 5322 264 24019 1 Spring-loaded test clip
11 5322 264 24021 1 Probe shell with check-zero button
12 5322 216 54152 1 RC network
13 5322 320 14063 1 Cable assembly
14 5322 447 64016 1 Cap
15 5322 268 44019 1 BNC connector
Electrical parts
Item Order number Description
C1 - Part of RC network (not supplied separately)
C2 5322 125 54003 Trimmer 60 pF, 300 V
R1 _ Part of RC network (not supplied separately)
R2 5322 101 14047 Potmeter 470 22, 20 %, 0.5 W
R3 5322 100 10112 Potmeter 1 kQ2, 20 %, 0.5 W
C1
RI R2 x1
S1
ag R3
C2
Fig. 14.
MAT6I3ZA
