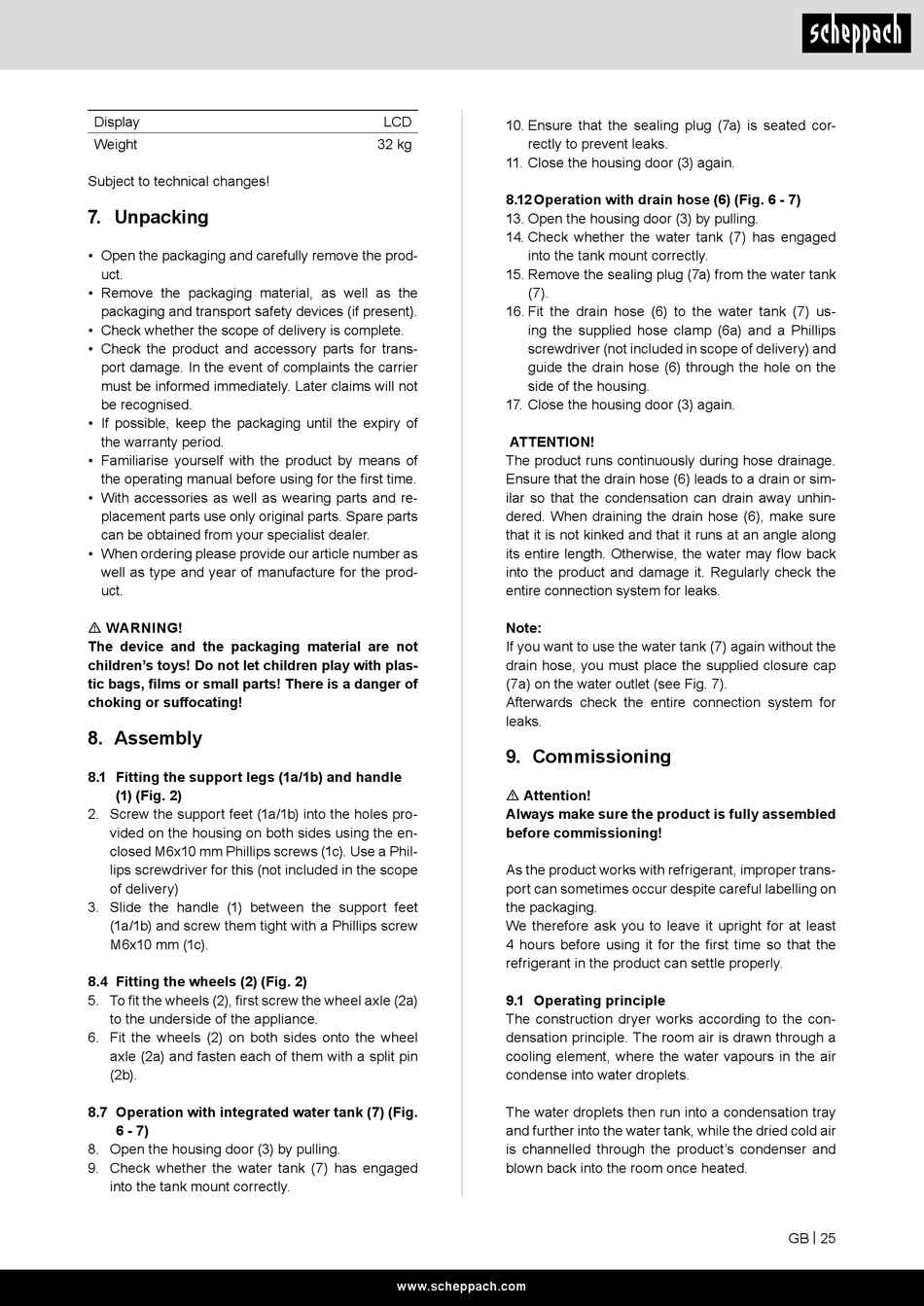

7. Unpacking
• Open the packaging and carefully remove the prod-
uct.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for trans-
port damage. In the event of complaints the carrier
must be informed immediately. Later claims will not
be recognised.
• If possible, keep the packaging until the expiry of
the warranty period.
• Familiarise yourself with the product by means of
the operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for the prod-
uct.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
8. Assembly
8.1 Fitting the support legs (1a/1b) and handle
(1) (Fig. 2)
2. Screw the support feet (1a/1b) into the holes pro-
vided on the housing on both sides using the en-
closed M6x10 mm Phillips screws (1c). Use a Phil-
lips screwdriver for this (not included in the scope
of delivery)
3. Slide the handle (1) between the support feet
(1a/1b) and screw them tight with a Phillips screw
M6x10 mm (1c).
8.4 Fitting the wheels (2) (Fig. 2)
5. To fit the wheels (2), first screw the wheel axle (2a)
to the underside of the appliance.
6. Fit the wheels (2) on both sides onto the wheel
axle (2a) and fasten each of them with a split pin
(2b).
8.7 Operation with integrated water tank (7) (Fig.
6 - 7)
8. Open the housing door (3) by pulling.
9. Check whether the water tank (7) has engaged
into the tank mount correctly.
LCD
10. Ensure that the sealing plug (7a) is seated cor-
32 kg rectly to prevent leaks.
11. Close the housing door (3) again.
8.12 Operation with drain hose (6) (Fig. 6 - 7)
13. Open the housing door (3) by pulling.
14. Check whether the water tank (7) has engaged
into the tank mount correctly.
15. Remove the sealing plug (7a) from the water tank
(7).
16. Fit the drain hose (6) to the water tank (7) us-
ing the supplied hose clamp (6a) and a Phillips
screwdriver (not included in scope of delivery) and
guide the drain hose (6) through the hole on the
side of the housing.
17. Close the housing door (3) again.
ATTENTION!
The product runs continuously during hose drainage.
Ensure that the drain hose (6) leads to a drain or sim-
ilar so that the condensation can drain away unhin-
dered. When draining the drain hose (6), make sure
that it is not kinked and that it runs at an angle along
its entire length. Otherwise, the water may flow back
into the product and damage it. Regularly check the
entire connection system for leaks.
Note:
If you want to use the water tank (7) again without the
drain hose, you must place the supplied closure cap
(7a) on the water outlet (see Fig. 7).
Afterwards check the entire connection system for
leaks.
9. Commissioning
m Attention!
Always make sure the product is fully assembled
before commissioning!
As the product works with refrigerant, improper trans-
port can sometimes occur despite careful labelling on
the packaging.
We therefore ask you to leave it upright for at least
4 hours before using it for the first time so that the
refrigerant in the product can settle properly.
9.1 Operating principle
The construction dryer works according to the con-
densation principle. The room air is drawn through a
cooling element, where the water vapours in the air
condense into water droplets.
The water droplets then run into a condensation tray
and further into the water tank, while the dried cold air
is channelled through the product's condenser and
blown back into the room once heated.
