Please provide the following information in the event
of any enquiries:
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate
Connection type X
If the mains connection cable of this device is dam-
aged, it must be replaced by a special connection ca-
ble which can be obtained from the manufacturer or
its service department.
12. Maintenance
If personnel qualified for unusual maintenance
tasks or repairs must be obtained during of af-
ter the warranty period, please always contact a
service point recommended by us or contact the
manufacturer.
• Only perform repair, maintenance and cleaning
work as well as the correction of malfunctions with
the drive switched off as a basic rule.
• All protective and safety equipment must be reas-
sembled immediately after repair, maintenance is
completed.
CLEANING
Caution! Disconnect the mains plug.
• Clean the machine each time after completing work.
• The machine should be cleaned regularly to remove
dust and dirt.
• Keep safety devices, air vents and the motor hous-
ing as dust and dirt-free as possible.
• Clean the device with a clean cloth, or blow it out
with compressed air at low pressure.
• All moving parts are to be re-greased at periodic
intervals.
• Do not use detergents or solvents as these might
damage the plastic parts of the device. Make sure
that no water can get inside the device.
Carbon brushes
In case of excessive sparking, have the carbon brush-
es checked by a qualified electrician.
Caution! The carbon brushes should be replaced only
by a qualified electrician.
Check the oil level
The oil level should be checked before each use of the
device.
Place the device with the tool holder in the down po-
sition on the floor. The oil must be aligned with the
marked cross. Refill with oil if necessary.
Oil change (fig.5)
The oil should be changed after about 40-50 hours of
operation.
Recommended oil: 100 ml SAE 15W/40 or similar.
Caution! Switch off the device. Disconnect the
mains plug!
1. Lay the device on its back. Unscrew the sight glass
(4) by opening the four tapping screws (11).
2. Empty the old oil by tilting it into a suitable con-
tainer.
Note: Waste oil must be disposed of at the ap-
propriate collection point for used oil!
3. Fill in the new oil (about 100 ml) into the oil filler
opening.
4. Tighten the sight glass again and check the oil lev-
el. Refill or remove oil if necessary.
5. Check the oil level again after a short period.
Service information
Please note that the following parts of this product are
subject to normal or natural wear and that the following
parts are therefore also required for use as consumables.
Wear parts*:
* Not necessarily included in the scope of delivery!
Spare parts and accessories can be obtained from our ser-
vice centre. To do this, scan the QR code on the cover page.
13. Accessories
www.scheppach.com
all chisels, carbon brushes

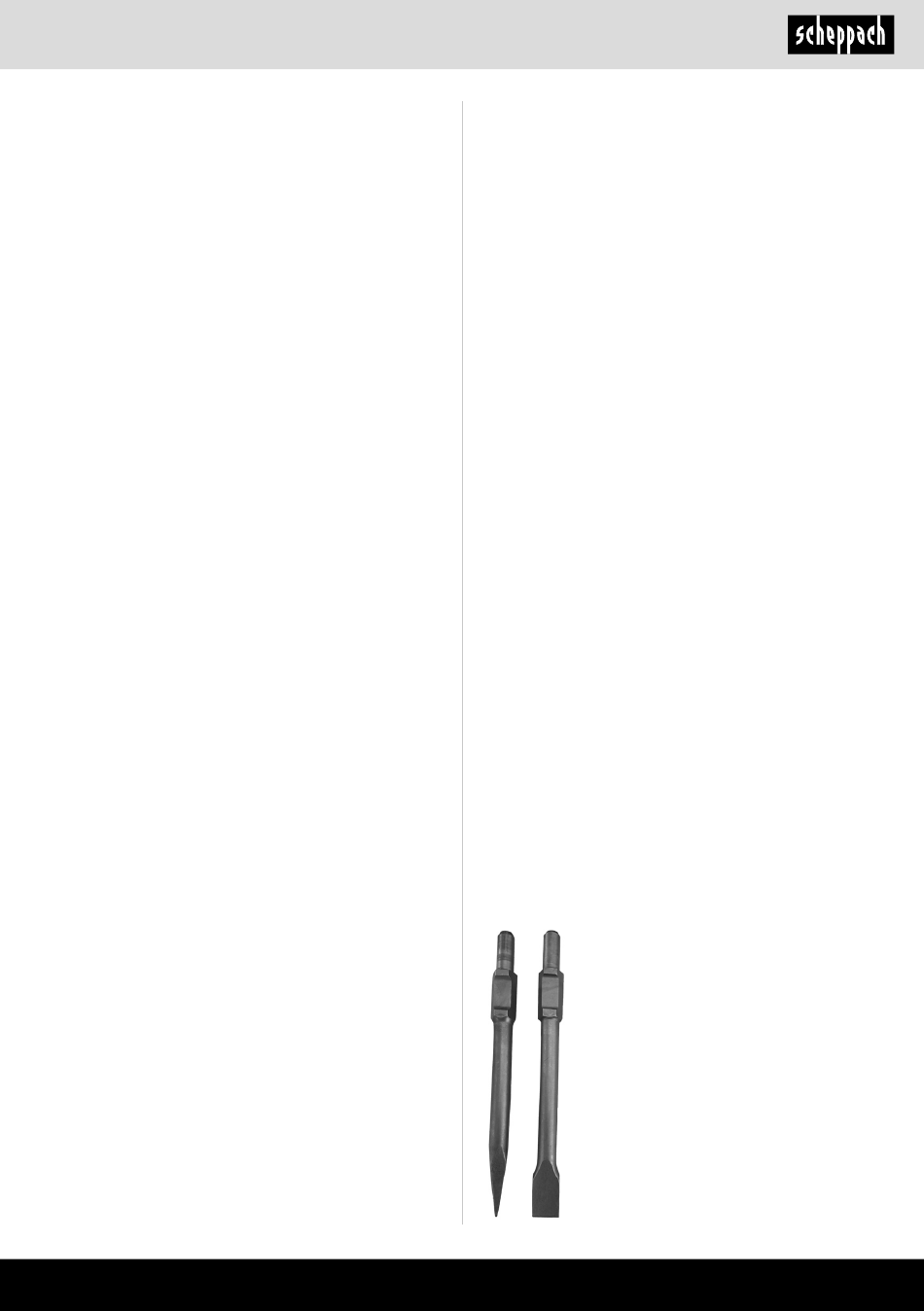

Flat chisel
item no.:
3908201108
Barcode:
4046664014287
Point chisel
item no.:
3908201109
Barcode:
4046664014294
