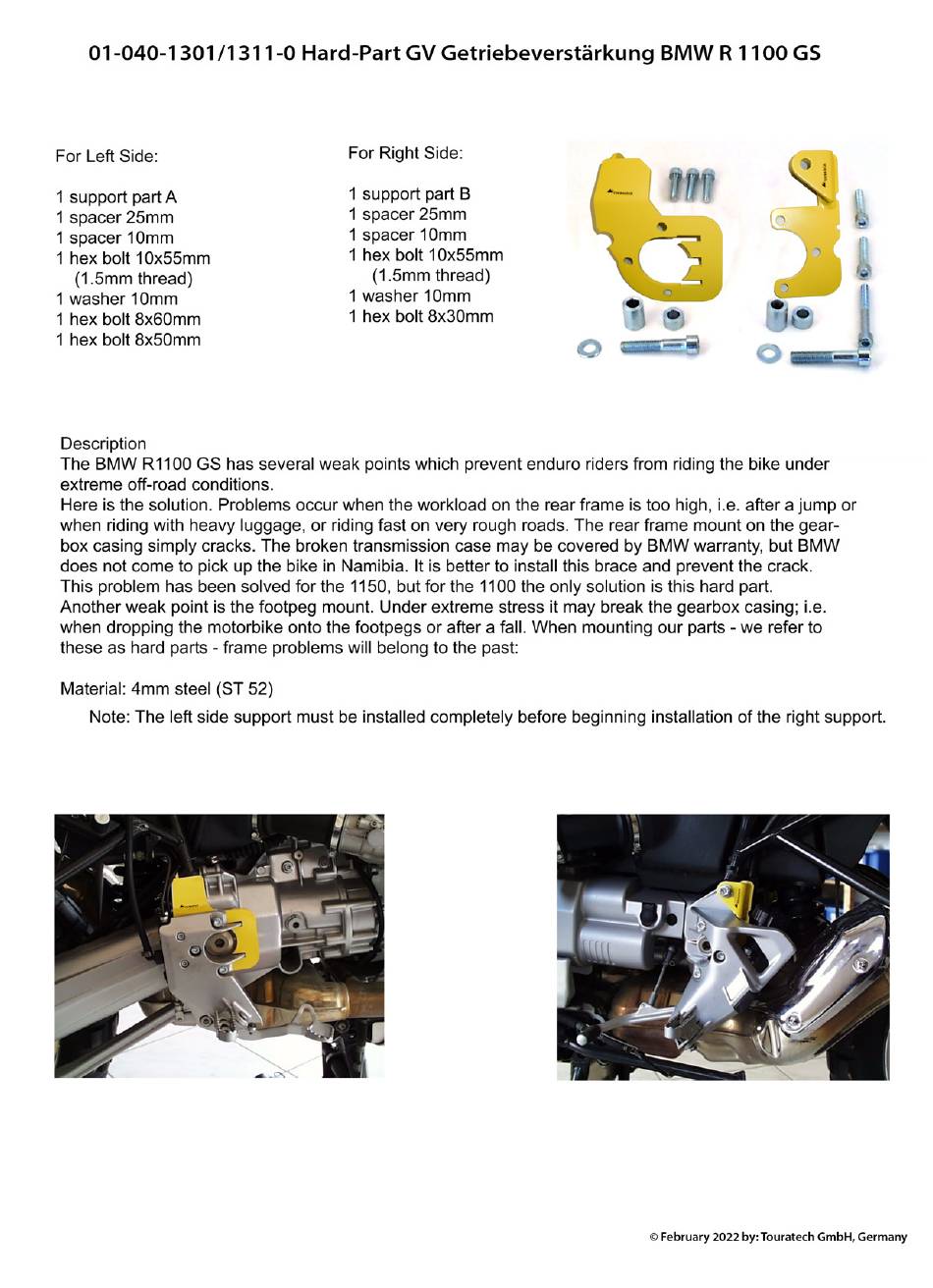

Touratech 01-040-1301 Montageanleitung Seite 4

01-040-1301/1311
For Left Side:
1 support part A
1 spacer 25mm
1 spacer 10mm
1 hex bolt 10x55mm
(1.5mm thread)
1 washer 10mm
1 hex bolt 8x60mm
1 hex bolt 8x50mm
Description
The BMW RIIOO GS has several weak points which p
extreme off-road
Here is the solution. Problems occur when the workloa
when riding with heavy luggage, or riding fast on very
box casing simply cracks. The broken transmission
does not come to pick up the bike in Namibia. It is bet
This problem has been solved for the 1150, but for the
Another weak point is the footpeg mount. Under extrem
when dropping the motorbike onto the footpegs or afte
-O Hard-Part
conditions.
GV Ge
For Right Side:
1 support part B
1 spacer 25mm
1 spacer 10mm
1 hex bolt 10x55m
(1.5mm threa
1 washer 10mm
1 hex bolt 8x30mm
ca
