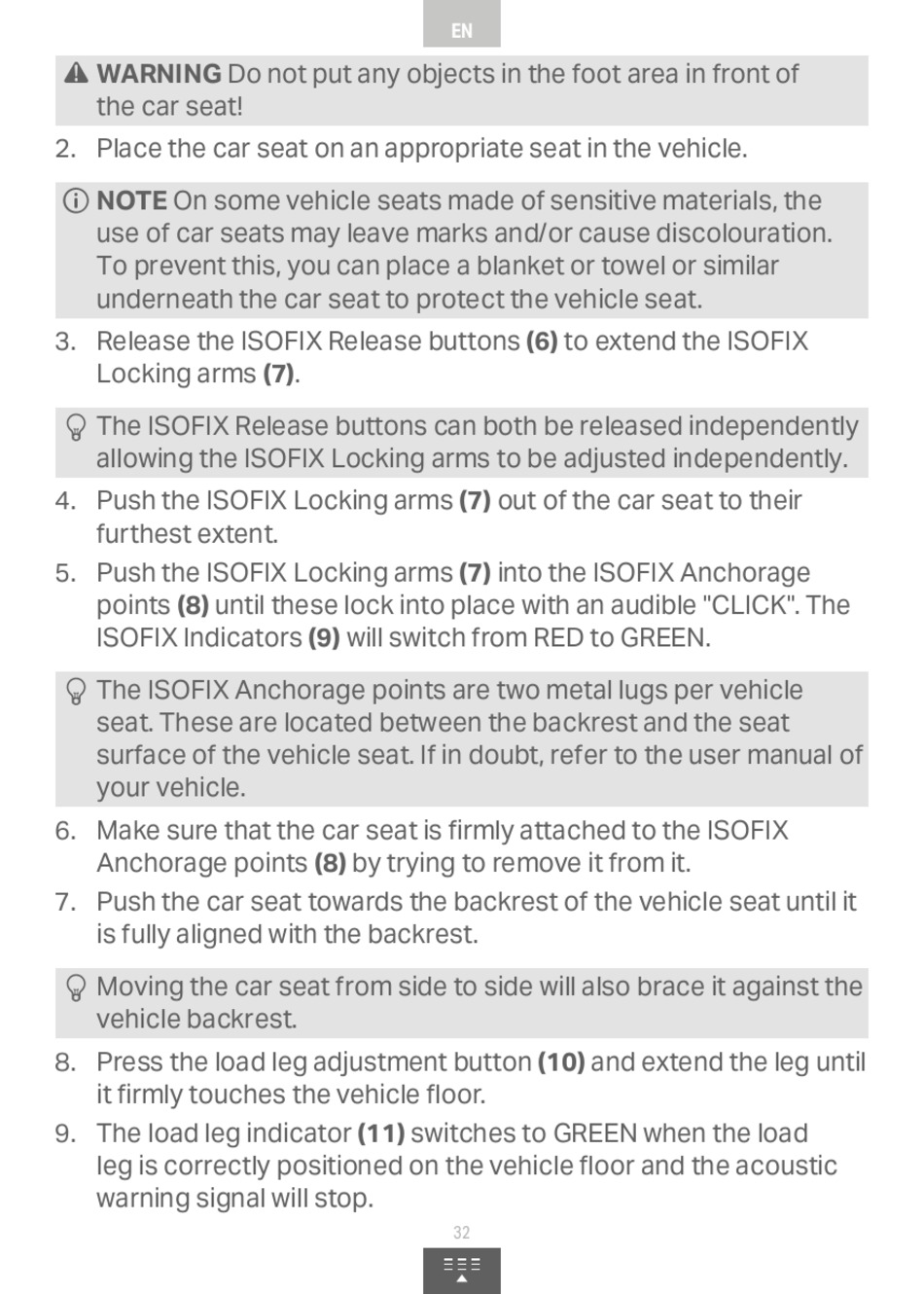

WARNING Do not put any objects in the foot area in front of
2
the car seat!
2. Place the car seat on an appropriate seat in the vehicle.
 NOTE On some vehicle seats made of sensitive materials, the
use of car seats may leave marks and/or cause discolouration.
To prevent this, you can place a blanket or towel or similar
underneath the car seat to protect the vehicle seat.
3. Release the ISOFIX Release buttons (6) to extend the ISOFIX
Locking arms (7).
The ISOFIX Release buttons can both be released independently
��
allowing the ISOFIX Locking arms to be adjusted independently.
4. Push the ISOFIX Locking arms (7) out of the car seat to their
furthest extent.
5. Push the ISOFIX Locking arms (7) into the ISOFIX Anchorage
points (8) until these lock into place with an audible "CLICK". The
ISOFIX Indicators (9) will switch from RED to GREEN.
The ISOFIX Anchorage points are two metal lugs per vehicle
��
seat. These are located between the backrest and the seat
surface of the vehicle seat. If in doubt, refer to the user manual of
your vehicle.
6. Make sure that the car seat is firmly attached to the ISOFIX
Anchorage points (8) by trying to remove it from it.
7. Push the car seat towards the backrest of the vehicle seat until it
is fully aligned with the backrest.
Moving the car seat from side to side will also brace it against the
��
vehicle backrest.
8. Press the load leg adjustment button (10) and extend the leg until
it firmly touches the vehicle floor.
9. The load leg indicator (11) switches to GREEN when the load
leg is correctly positioned on the vehicle floor and the acoustic
warning signal will stop.
