Wiring must comply with applicable electrical standards and include
a properly sized fuse. Improper wiring can cause a fire resulting in
CAUTION:
Suggested wiring information is given as a reference. For proper information, please reference ABYC E-11, AC and DC
Electrical Systems on Boats guidelines.
Wire Size Table
Total Wire Length - feet (meters)
Pump Voltage
12 VDC
Pump comes with 14" of AWG 12 gauge wire.
Please use water tight connections when connecting wires.
CAUTION: Motor case could get hot during extended operation. Prolonged contact with skin may cause a burn.
WARNING: Electrical connections should be performed by a competent marine electrical technician.
CAUTION: Disconnect power from the system before working on the unit to avoid personal injury, damage to the
surrounding environment and/or damage to the unit.

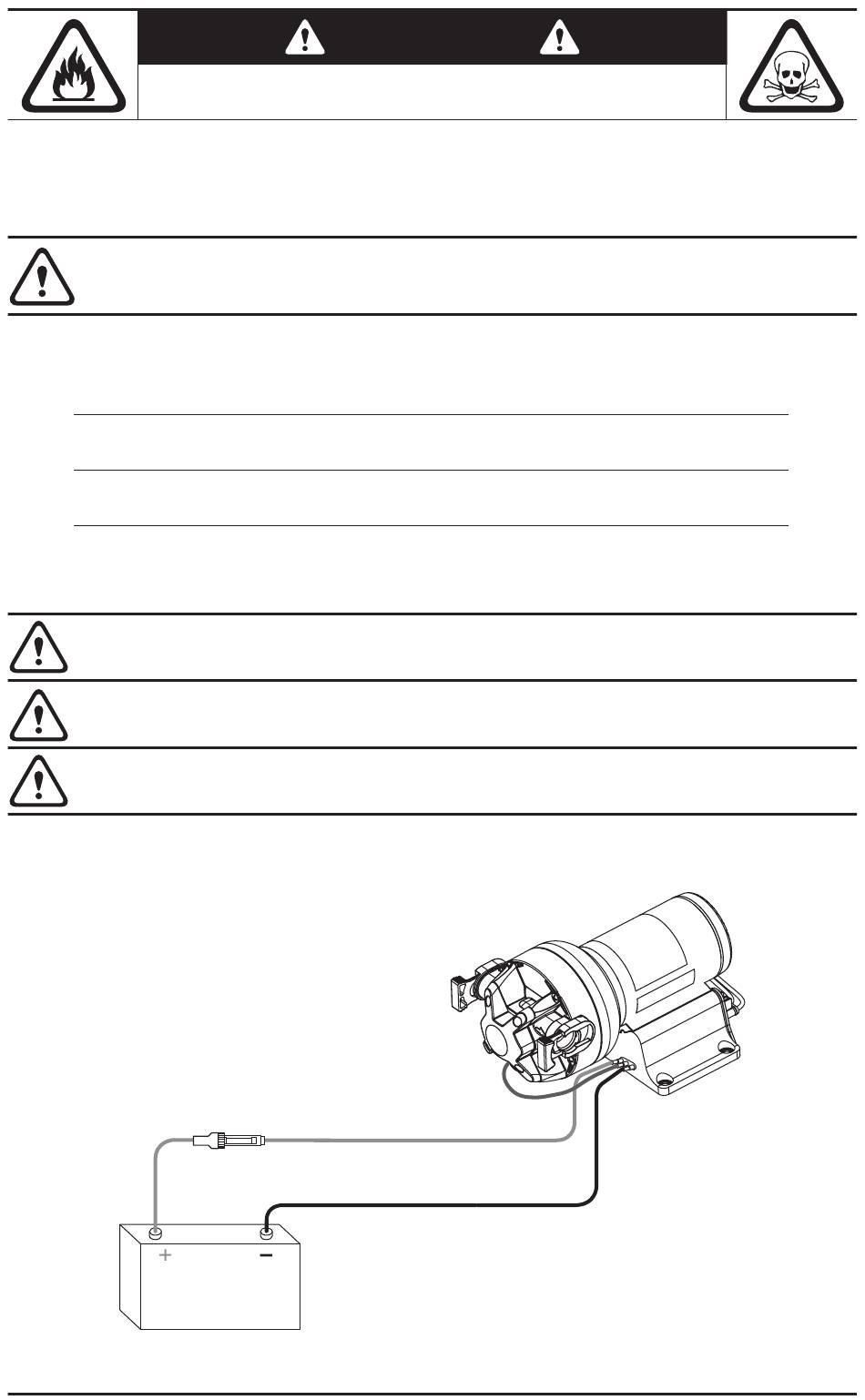

Electrical Installation
Diagram
F IR E H AZA RD
personal injury, death or property damage.
( 0 - 7.6 m)
15A Inline fuse
12VDC Battery
W A R N I N G
0 - 25 ft
25 - 40 ft
(7.6 - 12..2 m)
#14 AWG
(2.5 mm²)
Green
ground
Red (+)
Black (—)
4
40 - 60 ft
(12.2 - 18.2 m)
#12 AWG
(4 mm²)
#10 AWG
(6 mm²)
