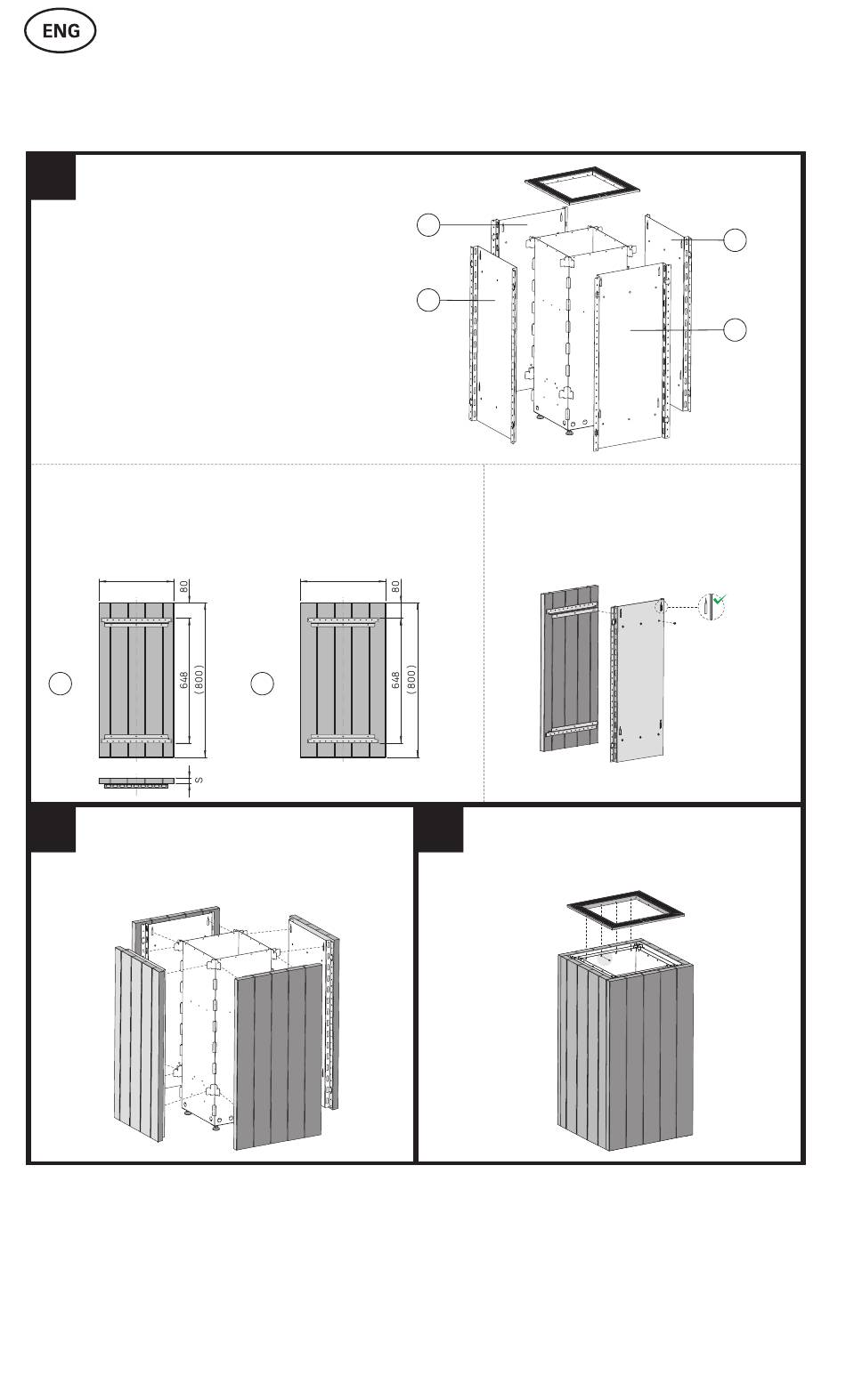

Verticalfinishinginstallation
1
Prepare the shields (4 pcs)
The instructions below are recommended and are
intended for attaching material from vertical
slats to the CORE electric heater.
NB! Consult a specialist when choosing the
right fasteners and tools.
NB! Make sure that the material you want to
finish with the heater is suitable for the
intended use in the sauna. If necessary,
consult an expert.
NB! The weight of one side panel of the
heater including finishing should
not exceed 20 kg.
1
Preparing the wood panels
Select the appropriate screws to secure the finish to the
mounting brackets (available as an accessory). The maximum
diameter of the screw is 4.2 mm. If necessary, consult an expert.
386
A
2
Attach the prefabricated side panels
to the heater.
Make sure that there is a minimum air gap of 25 mm
under the heater.
16
386 + 2 x S
B
x 2
B
A
2
Attaching the wood panels to
the metal shield
Attach the base plates to the shields with
M5x8 screws (24 screws included).
x 2
3
Place the cover strips on the heater
and fasten them with M4,2x9,5 screws
(16 screws included).
A
B
Openings pointing
upwards
x 4
