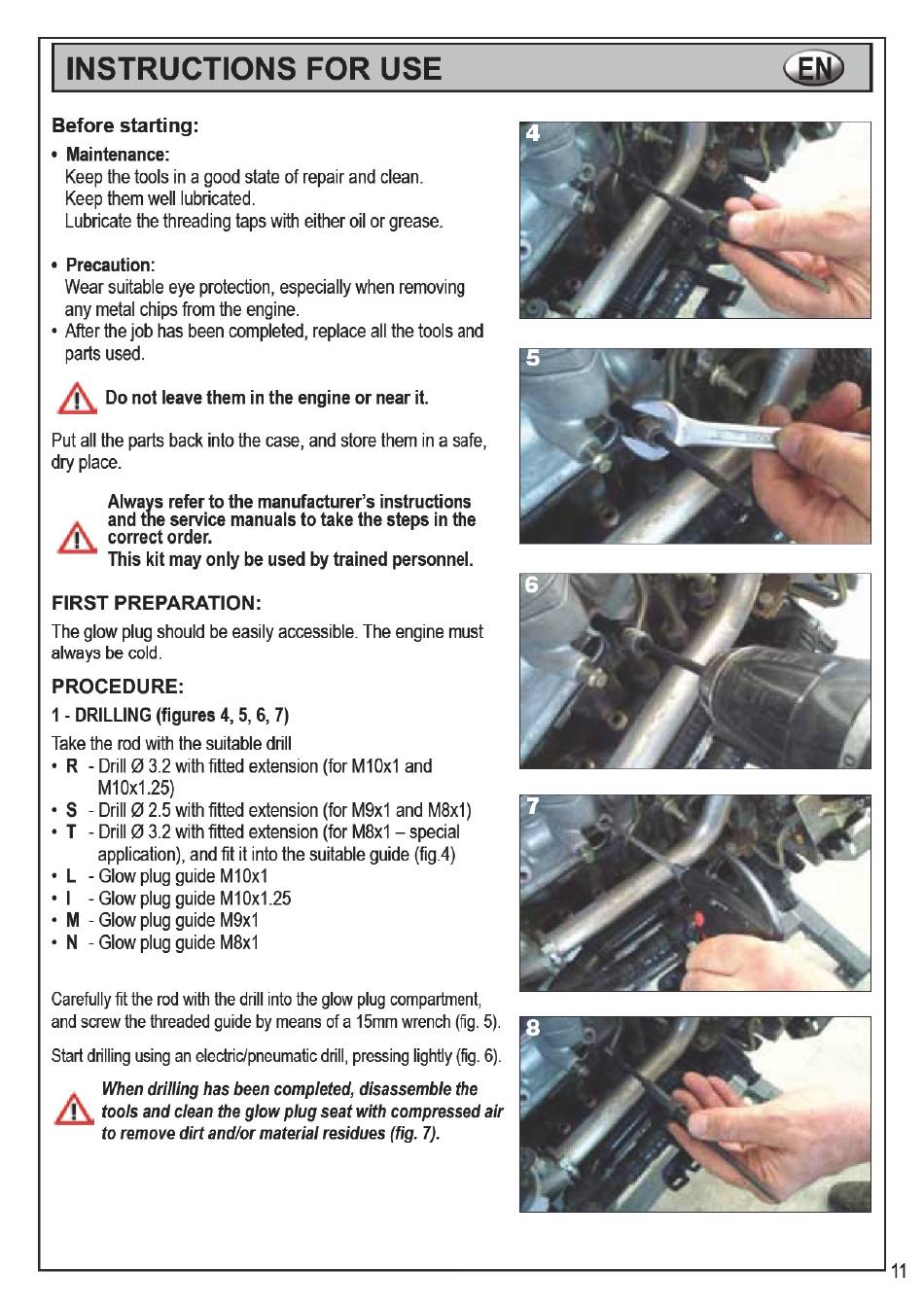

INSTRUCTIONS
Before starting:
• Maintenance:
Keep the tools in a good state of repair and clean.
Keep them well lubricated.
Lubricate the threading taps with either oil or grease.
• Precaution:
Wear suitableeye protection, especiallywhen removing
any metal chips from the engine.
• After the job has been completed, replace all the tools and
partsused.
Lis
Do not leave them in the engine or near it.
Put all the parts back into the case, and store them in a safe,
dry place.
Always refer to the manufacturer's instructions
and the service manuals to take the steps in the
correct order.
This kit may only be used by trained personnel.
FIRST PREPARATION:
The glow plug should be easily accessible. The engine must
always be cold.
PROCEDURE:
1 - DRILLING (figures 4, 5, 6, 7)
Take the rod with the suitable drill
- Drill Ø 3.2 with fitted extension (for MIOx1 and
MI .25)
•S - Drill Ø 2.5 with fitted extension (for M9x1 and M8x1)
•T - Drill Ø 3.2 with fitted extension (for M8x1—special
application),and fit it into the suitable guide (fig.4)
- Glow plug guide MIOx1
•L
- Glow plug guide MI Oxl.25
- Glow plug guide M9x1
•N - Glow plug guide M8x1
Carefullyfit the rod with the drill into the glow plug compartment,
and screw the threaded guide by means of a 15mmwrench (fig. 5).
Start drilling using an electric/pneumaticdrill, pressinglightly (fig. 6).
Whendrilling has been completed, disassemble the
Lis
tools and clean the glow plug seat with compressed air
to remove dirt and/or material residues (fig. 7).
