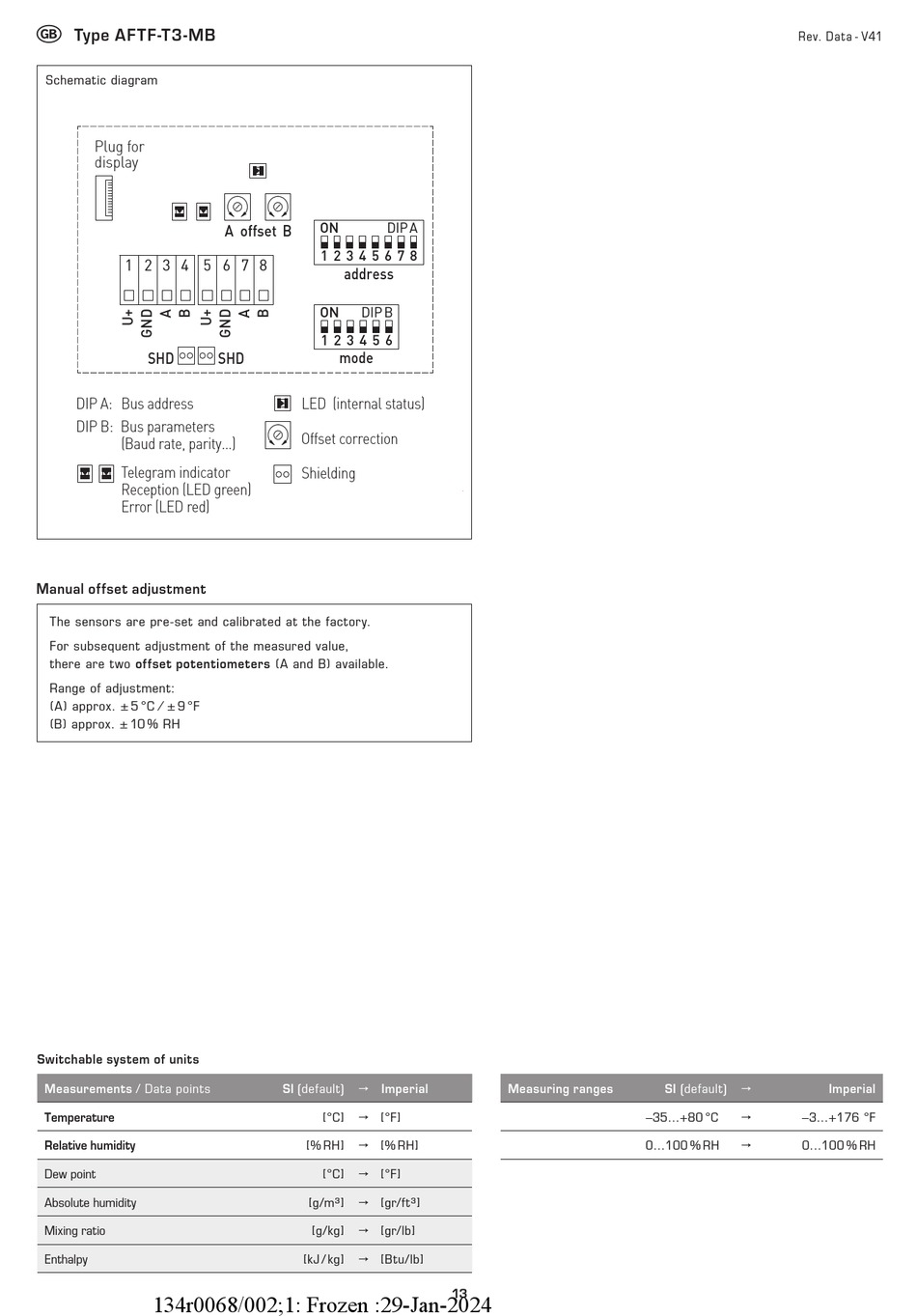

Type AFTF-T3-MB
Schematic diagram
Plug for
display
1 2 3 4 5 6 7 8
SHD
DIP A: Bus address
DIP B: Bus parameters
(Baud rate, parity...)
Telegram indicator
Reception (LED green)
Error (LED red)
Manual offset adjustment
The sensors are pre-set and calibrated at the factory.
For subsequent adjustment of the measured value,
there are two offset potentiometers (A and B) available.
Range of adjustment:
(A) approx. ± 5 °C ⁄ ± 9 °F
(B) approx. ± 10 % RH
Switchable system of units
Measurements / Data points
Temperature
Relative humidity
Dew point
Absolute humidity
Mixing ratio
Enthalpy
134r0068/002;1: Frozen :29-Jan-2024
ON DIP A
A offset B
1 2 3 4 5 6 7 8
address
ON DIP B
1 2 3 4 5 6
mode
SHD
LED (internal status)
Offset correction
Shielding
SI (default) → Imperial
[°C] → [°F]
[% RH] → [% RH]
[°C] → [°F]
[g/m³] → [gr/ft³]
[g/kg] → [gr/lb]
[kJ / kg] → [Btu/lb]
Measuring ranges
13
Rev. Data - V41
SI (default) →
–35...+80 °C → –3...+176 °F
0...100 % RH → 0...100 % RH
Imperial
