SIP station SIP-WS 800V

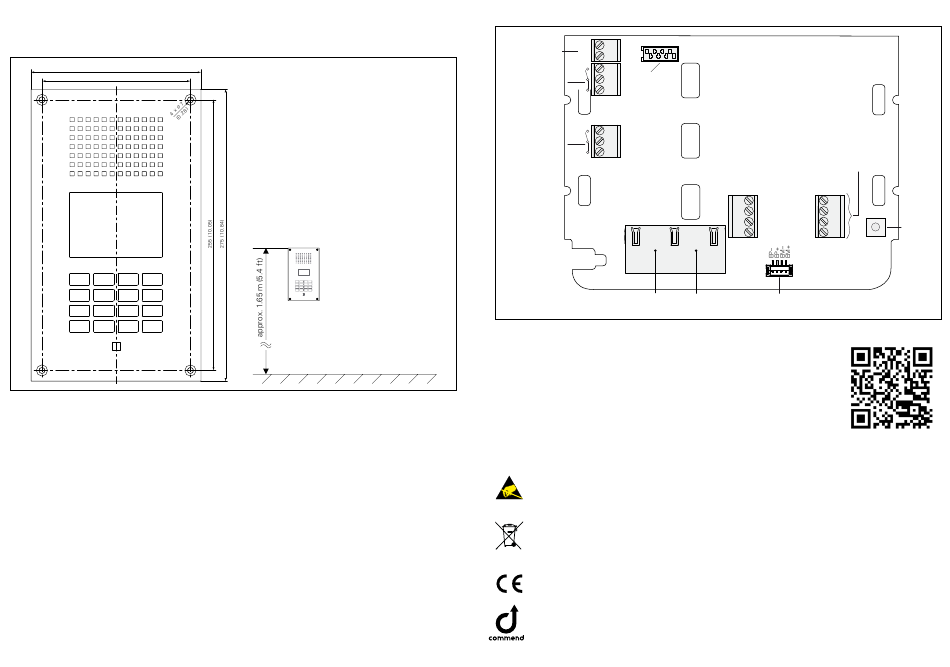

Dimensions and recommended mounting height
Measuring units in mm (in), not to scale! Front panel thickness: 3 mm (0.12 in)
160 (6.3) 160
140 (5.5) 140
Extent of supply
• SIP station
• Mounting screws (4 x Torx TR 25 security countersunk screws, M5x10)
• Device identification document
• Short reference
Cleaning instructions
The device may only be cleaned with cleaning agents for stainless steel. Do not use cleaning agents
containing chlorine or isopropanol.
Safety warnings
• This device shall be installed or replaced by trained and qualified personnel only.
• Do not install the device on unstable walls or on surfaces, which cannot support the device's weight.
• Only use recommended tools when installing the device.
• Only accessories that comply with the device's technical specifications shall be used.
• All connected circuits shall fulfil the requirements for Safety Extra Low Voltage (SELV) and Limited
Power Source (LPS) according to IEC/EN 60950-1.
• Use shielded Ethernet cables only.
• Before using the device, ensure all cables are correctly connected and not damaged.
• Disconnect the power supply (PoE or DC) for any maintenance of the device.
• Allow the device to cool down completely before touching parts inside.
• Do not make any unauthorised modifications to the device.
Connection diagram
Alternative
power supply
24 VDC (± 2 V)
Send feedback
We are constantly striving to make our products even better. Follow the link to
the Commend feedback form and let us know what you think.
Finished floor
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
This device must not be disposed of together with household waste or commercial waste.
In the EU: The directive 2012/19/EU applies (Waste from Electrical and Electronic Equipment,
WEEE). Worldwide: The country-specific regulations for disposal apply.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical data and configuration, see the respective manual.
Keep this description in safe custody.
Type: D-BZ-SIPWS800V, Version: 1.1/1124 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com/sip
DC–
DC+
OUT 2 Expansion
jack (e.g. for
OUT 2
EB2E2AHE)
OUT 1
OUT 1
IP uplink IP downlink
+ PoE (e.g. IP camera)
(e.g. WSHS 50P-JST)
External
loudspeaker module
IN 1 MUTE
IN 2 GND
Factory
LINE–
IN 3
Reset
GND LINE+
button
Handset
