OD10 FBS
Flush mount box for mounting an Intercom station OD10 TD CM to a brick wall.
Mounting
For mounting an Intercom station OD10 TD CM to the flush mount box OD10
FBS, a drywall/panel mount kit OD10 FB is required. For information on
mounting, see the supplied installation instructions.
Recommended mounting height and position
• Mount the upper edge of the Intercom station approx. 1,650 mm (65 in) from the finished floor.
Adapt the mounting height to the individual needs.
• For a barrier-free accessibility, it is recommended to mount the Intercom station with enough space
to walls or corners.
• When mounting the Intercom station, pay attention to the correct camera angle in terms of
accessibility, so that wheelchair users and children can be detected by the camera.

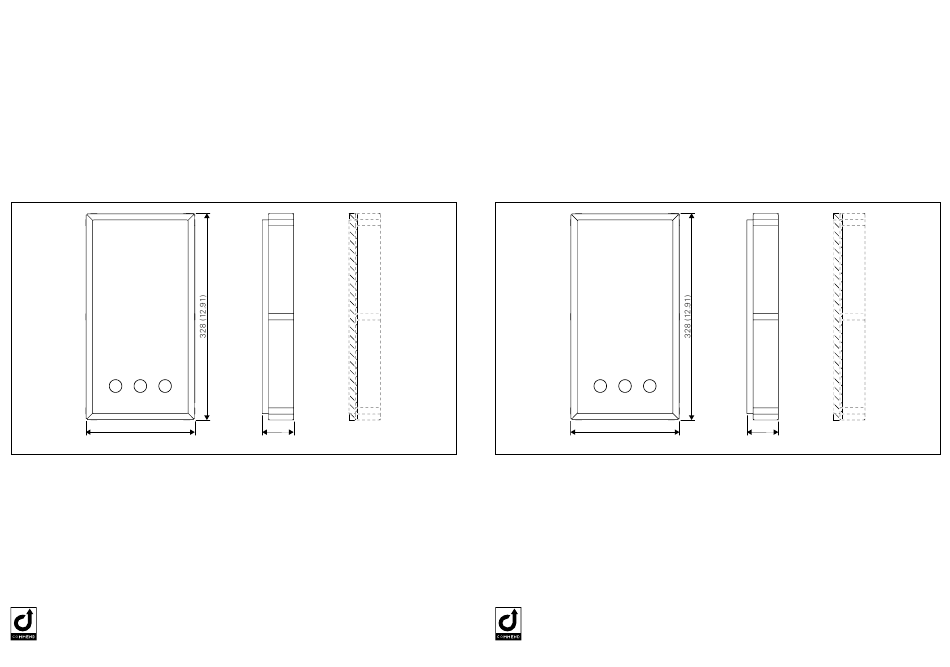

Dimensions
Measuring units in mm (in), not to scale!
175 (6.89)
Mounting instructions
• The flush mount box shall be installed by trained and qualified personnel only.
• Avoid exposing the OD10 TD CM to direct sunlight when installed.
• Install the Intercom station with a distance of min. 100 mm (4 in) to walls and other objects to
enable access to the locking screws of the OD10 TD CM (Torx T08) and to not mask the loudspeaker
openings on the sides.
• The flush mount box must be mounted flush with the plaster.
• Protect the mounting box during plaster work by using the supplied plaster-protective cover.
• No water may penetrate into the mounting box. Therefore, ensure on-site sealing of the flush mount
box.
Manufacturer's reference
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-ID10-FBS, Version: 1.0/0519 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
Extent of supply
• Flush mount box
• Plaster-protective cover
• Short reference
