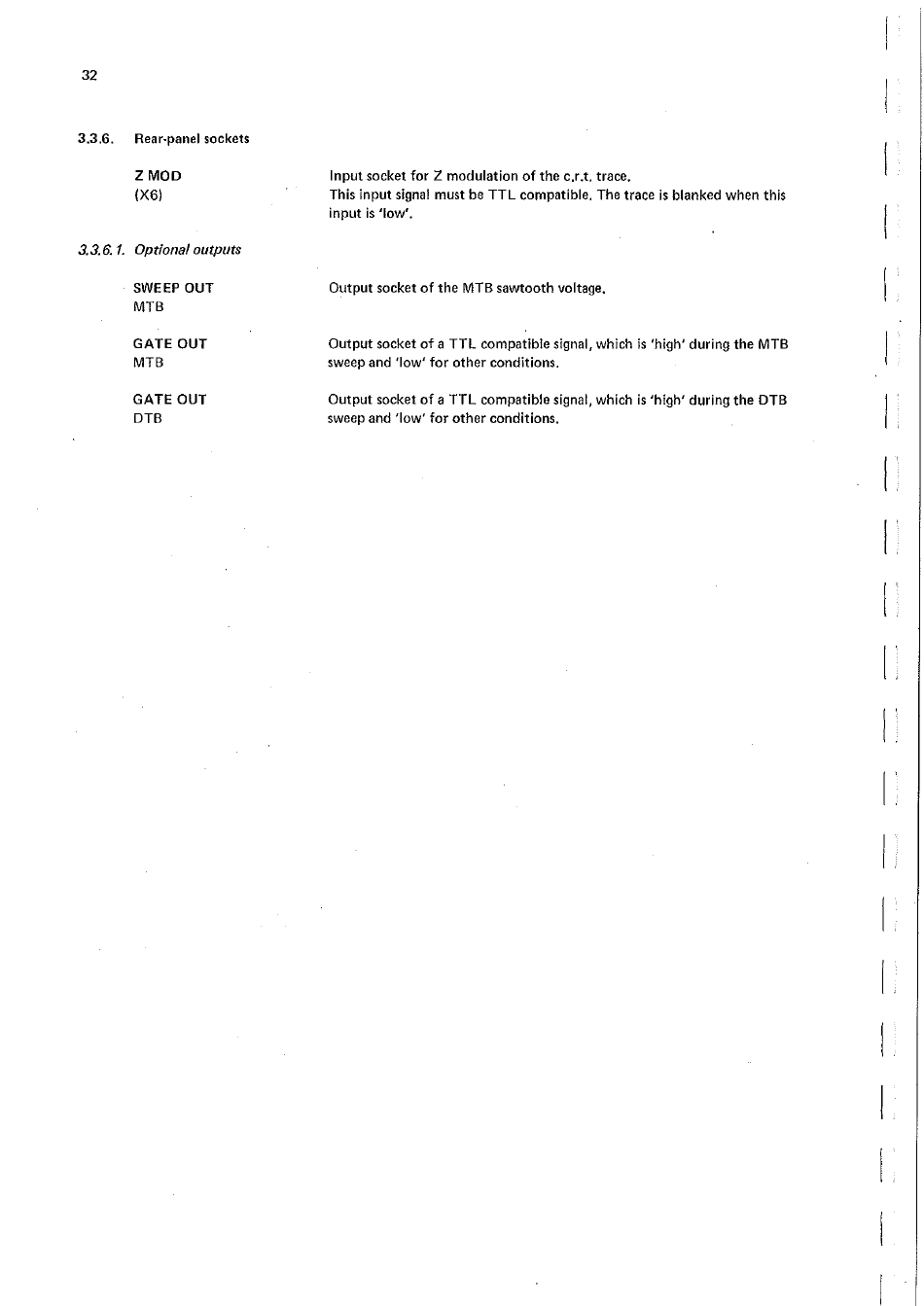

32
3.3.6.
Rear-panel sockets
Z MOD
3.36. I. Optional outputs
SWEEP
OUT
MTB
GATE
OUT
MTB
GATE
OUT
DTB
Input socket for Z modulation
This input signal must be TTL
input
is 'low'.
Output socket of the MTB sawtooth voltage.
Output socket of a TTL compatible signal, which is 'high' during the MTB
sweep and 'low'
for other conditions.
Output socket of a TTL compatible signal, which is 'high' during the D TB
sweep and 'low'
for other conditions.
of the c.r.t. trace.
compatible.
The trace is blanked
when this
