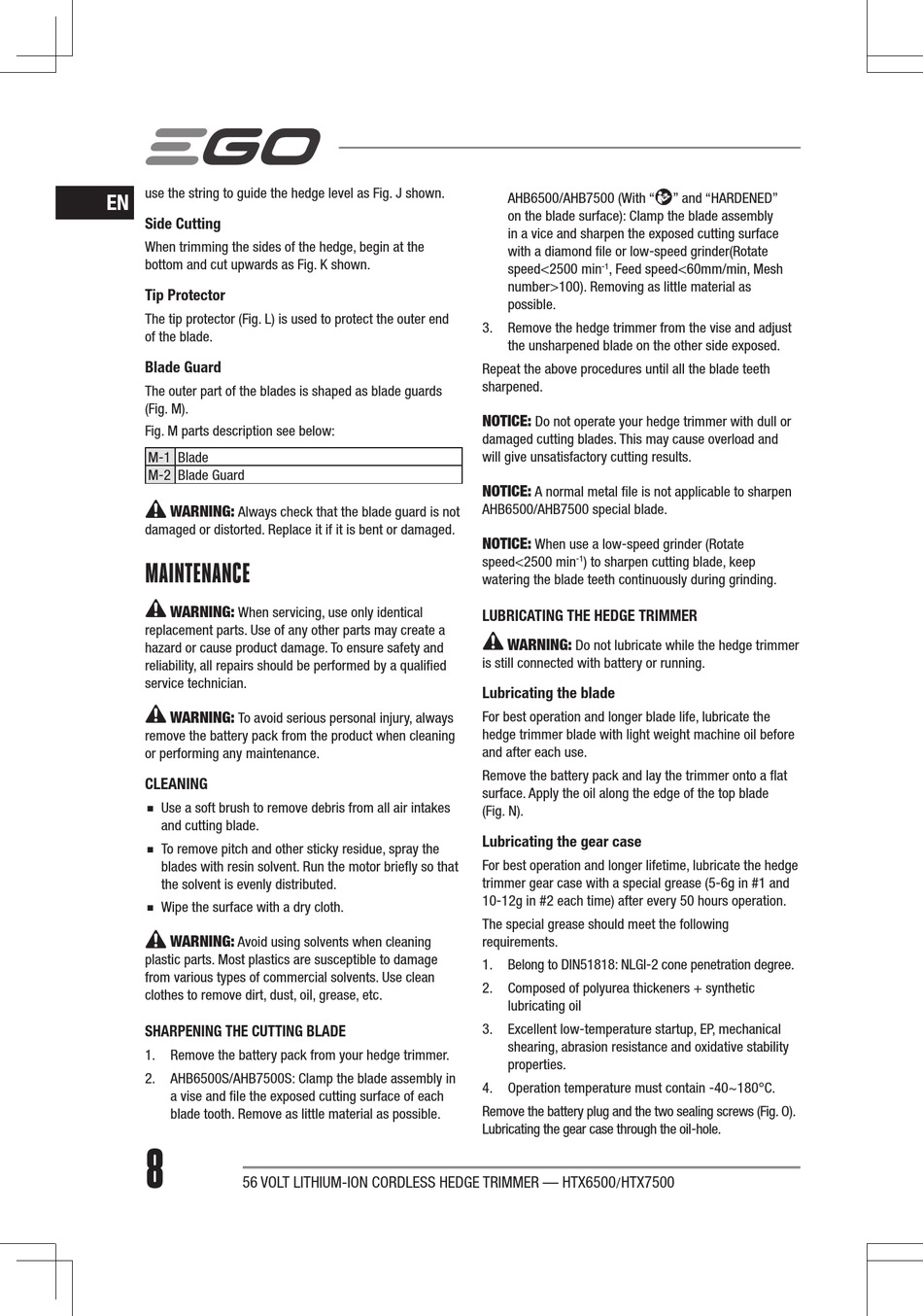

use the string to guide the hedge level as Fig. J shown.
EN
Side Cutting
When trimming the sides of the hedge, begin at the
bottom and cut upwards as Fig. K shown.
Tip Protector
The tip protector (Fig. L) is used to protect the outer end
of the blade.
Blade Guard
The outer part of the blades is shaped as blade guards
(Fig. M).
Fig. M parts description see below:
M-1 Blade
M-2 Blade Guard
WARNING:
Always check that the blade guard is not
damaged or distorted. Replace it if it is bent or damaged.
MAINTENANCE
WARNING:
When servicing, use only identical
replacement parts. Use of any other parts may create a
hazard or cause product damage. To ensure safety and
reliability, all repairs should be performed by a qualified
service technician.
WARNING:
To avoid serious personal injury, always
remove the battery pack from the product when cleaning
or performing any maintenance.
CLEANING
◾
Use a soft brush to remove debris from all air intakes
and cutting blade.
◾
To remove pitch and other sticky residue, spray the
blades with resin solvent. Run the motor briefly so that
the solvent is evenly distributed.
◾
Wipe the surface with a dry cloth.
WARNING:
Avoid using solvents when cleaning
plastic parts. Most plastics are susceptible to damage
from various types of commercial solvents. Use clean
clothes to remove dirt, dust, oil, grease, etc.
SHARPENING THE CUTTING BLADE
1. Remove the battery pack from your hedge trimmer.
2. AHB6500S/AHB7500S: Clamp the blade assembly in
a vise and file the exposed cutting surface of each
blade tooth. Remove as little material as possible.
8
56 VOLT LITHIUM-ION CORDLESS HEDGE TRIMMER — HTX6500/HTX7500
AHB6500/AHB7500 (With "
on the blade surface): Clamp the blade assembly
in a vice and sharpen the exposed cutting surface
with a diamond file or low-speed grinder(Rotate
speed<2500 min , Feed speed<60mm/min, Mesh
-1
number>100). Removing as little material as
possible.
3. Remove the hedge trimmer from the vise and adjust
the unsharpened blade on the other side exposed.
Repeat the above procedures until all the blade teeth
sharpened.
NOTICE:
Do not operate your hedge trimmer with dull or
damaged cutting blades. This may cause overload and
will give unsatisfactory cutting results.
NOTICE:
A normal metal file is not applicable to sharpen
AHB6500/AHB7500 special blade.
NOTICE:
When use a low-speed grinder (Rotate
speed<2500 min ) to sharpen cutting blade, keep
-1
watering the blade teeth continuously during grinding.
LUBRICATING THE HEDGE TRIMMER
WARNING:
Do not lubricate while the hedge trimmer
is still connected with battery or running.
Lubricating the blade
For best operation and longer blade life, lubricate the
hedge trimmer blade with light weight machine oil before
and after each use.
Remove the battery pack and lay the trimmer onto a flat
surface. Apply the oil along the edge of the top blade
(Fig. N).
Lubricating the gear case
For best operation and longer lifetime, lubricate the hedge
trimmer gear case with a special grease (5-6g in #1 and
10-12g in #2 each time) after every 50 hours operation.
The special grease should meet the following
requirements.
1. Belong to DIN51818: NLGI-2 cone penetration degree.
2. Composed of polyurea thickeners + synthetic
lubricating oil
3. Excellent low-temperature startup, EP, mechanical
shearing, abrasion resistance and oxidative stability
properties.
4. Operation temperature must contain -40~180°C.
Remove the battery plug and the two sealing screws (Fig. O).
Lubricating the gear case through the oil-hole.
" and "HARDENED"
