Mod.:
Testbox - Torch Flow Rate
Part No. :
4,078,016
A-4600 Wels
www.fronius.com
Ser. No.:
EN 61010-1
U
I
P
1
1
max in
1~
50/60 Hz
115/230 VAC
0,3A
10
0,8 A
bar
L x W x H
IP 20
330mmx235mmx220mm
2011
(3)
(3)
(3)
(4)

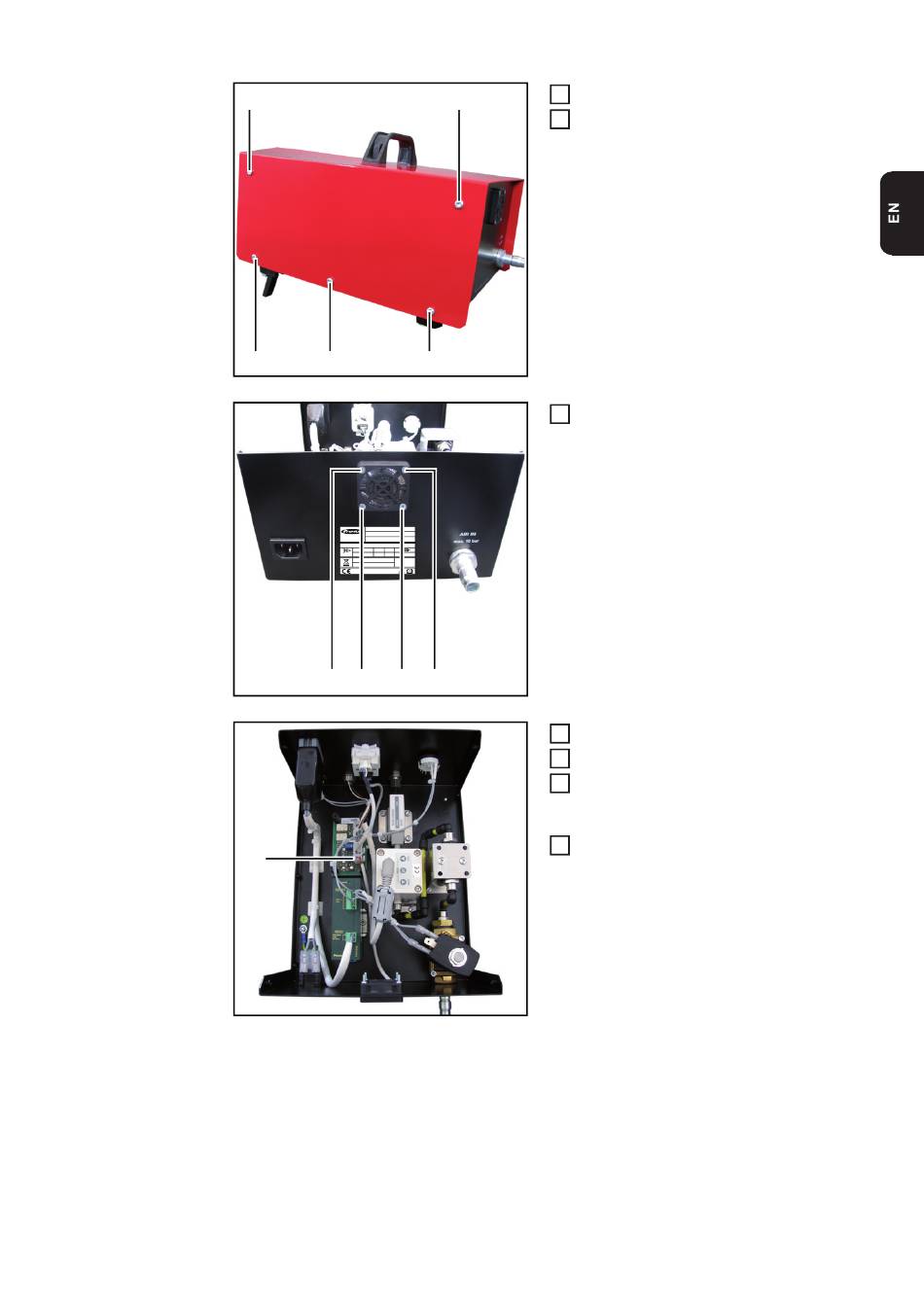

Undo the screws (2)
2
(2)
Remove the housing cover
3
(2)
Undo the screws (3)
4
(3)
Unplug the connector (4)
5
Take out the fan
6
Insert the new fan into the housing, se-
7
cure it using the screws (3) and con-
nect it in the testbox
Place the housing cover onto the test-
8
box and secure it using the screws (1)
and (2)
