Only carry out the three steps described below on gas-cooled welding torches:
5
6
Checking the gas
flow rate
60
1
Remove the inner liner from the welding torch
NOTE! During the test:
-
lay the adapter hosepack in a straight line from the testbox to the welding
torch
-
place the welding torch on a suitable base so it is in a straight line

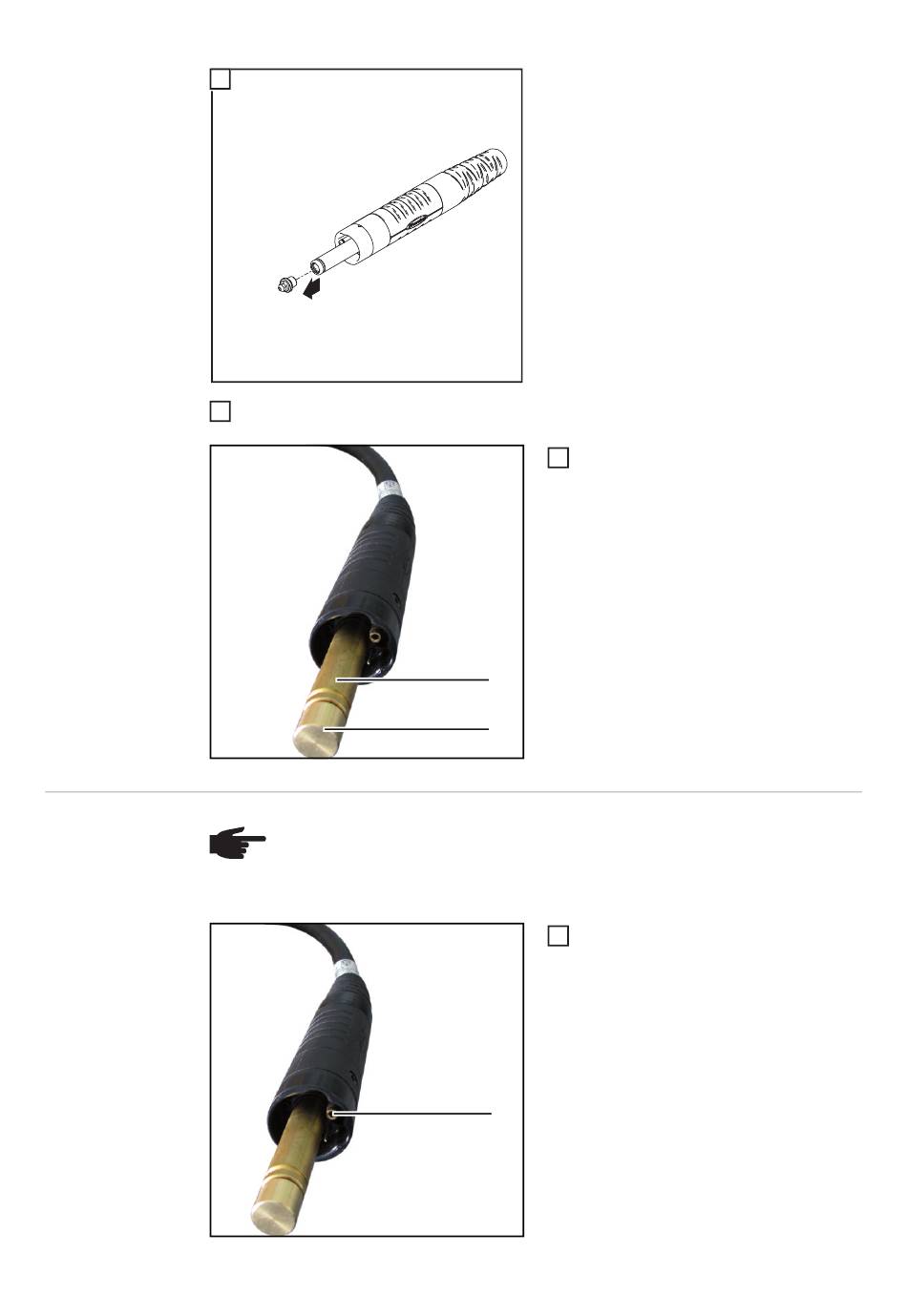

Screw the FSC power pin cover (4) into
7
the power pin (5) of the welding torch
under test
(5)
(4)
Push the adapter onto the gas plug (1)
1
as far as it will go
(1)
