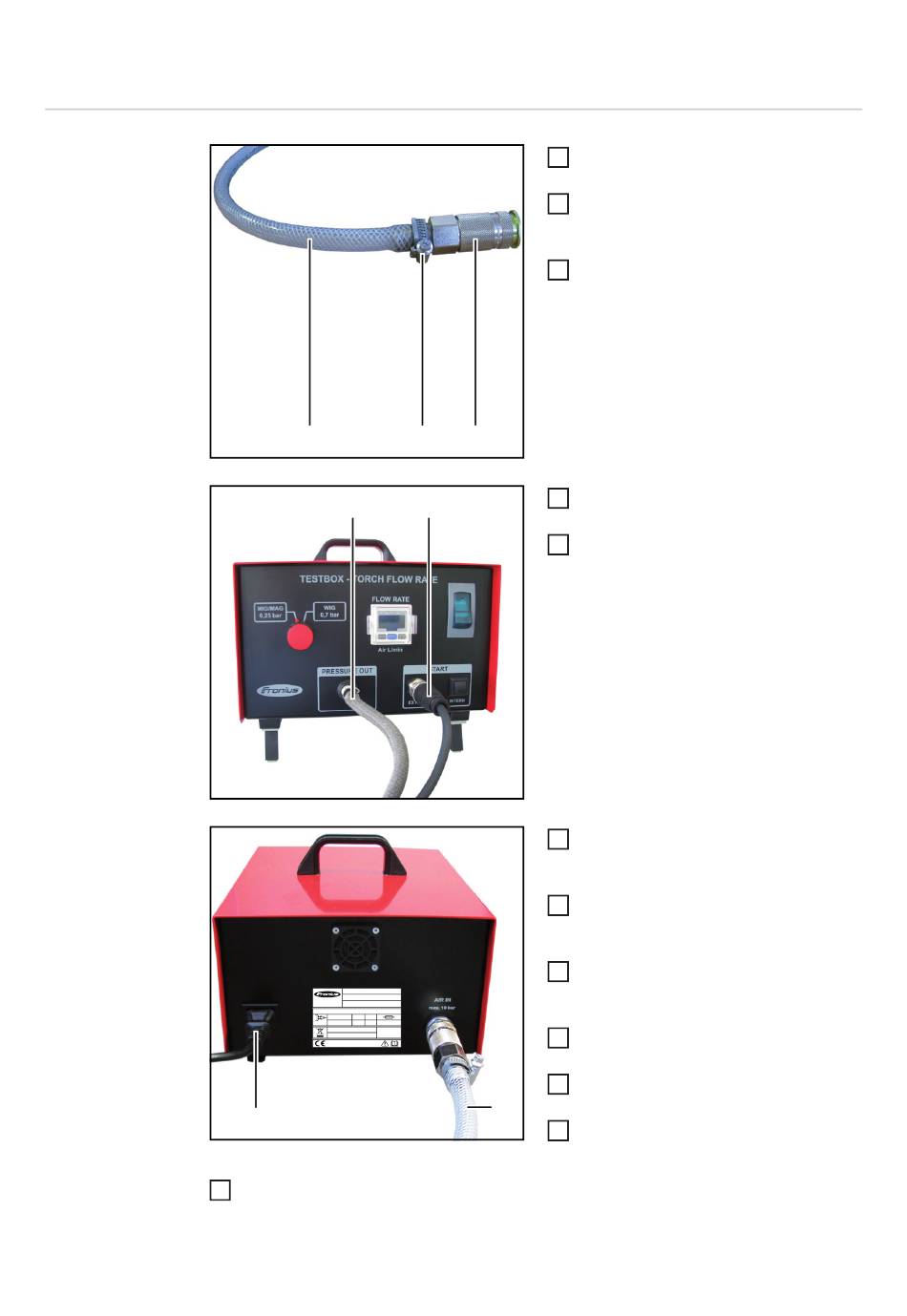

Starting the testbox
Starting the test-
box
12
58
(2)
(1)
(5)
Mod.:
Testbox - Torch Flow Rate
Part No. :
4,078,016
A-4600 Wels
www.fronius.com
Ser. No.:
EN 61010-1
U
I
P
1
1
max in
1~
115/230 VAC
0,3A
10
0,8 A
50/60 Hz
bar
L x W x H
IP 20
330mmx235mmx220mm
2011
(7)
Establish the compressed air supply
-
The testbox is now ready for use
Push the hose clamp (1) onto the com-
1
pressed air hose (2)
Insert the compressed air connection
2
(3) into the compressed air hose as far
as it will go
Tighten the hose clamp in the position
3
shown
(3)
Connect the control plug (4) of the ad-
4
(4)
apter to the 'EXTERN' connection
Connect the compressed air line (5) of
5
the adapter to the 'PRESSURE OUT'
connection
Depressurise the compressed air sup-
6
ply to the testbox until all work has
been completed
Connect the loose end of the com-
7
pressed air hose (6) to the compressed
air supply
Connect the compressed air hose (6)
8
to the compressed air connection on
the testbox
Connect the mains cable (7) to the
9
mains cable connection on the testbox
Plug the mains cable into the mains so-
10
cket
(6)
Switch on the testbox at the mains
11
11
switch
