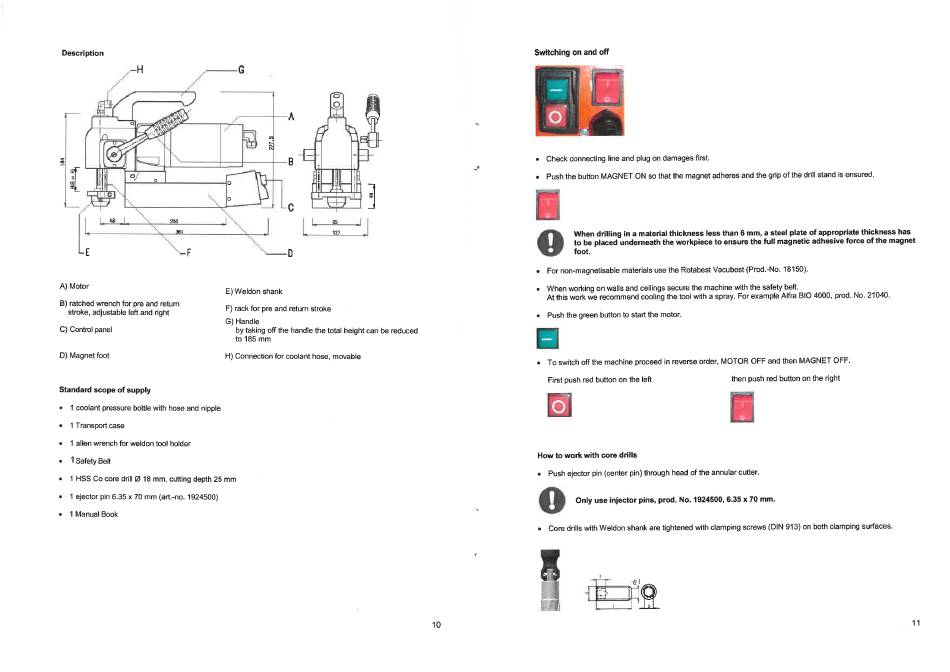

Description
0
A) Motor
E) Weldon shank
B) ratched wrerwh for pre arri retum
F) rack for pre and return stroke
stroke, adjustable left and right
G) Handle
C) Cmtrol parEl
by taking off the handle the total height can be reduced
to 185 mm
D) Magnet foot
H) Connection for coolant hose, movable
scope of supply
1 coolant
bottle with hose and nipple
1 Transgx:rt case
1
wrench
for weldon
tool holder
1 Safety Bek
1 HSS co core drill
18 mm. cutting depth 25 mm
•
1 ejector pin 6.35 x 70 mm (art-no. 1924500)
1 Manual Book
o
10
Switching on and off
Check connecting line and plug on damages first.
Pushthe buttonMAGNET ON sothatthe magnet a dheresandthe gripof the drillstandis ensured.
When drilling in a materialthickness less than 6 mm,a steel plate of appropriatethickness has
to beplacedundemeath theworkpiece to ensurethefull magnetic adhesive forceofthemagnet
foot.
For non-magnetisable m aterials usethe RotabestVacubest ( Prod.-No.18150).
Whenworkingon walls andceilingssecurethe machine withthe safetybelt.
At thisworkwe recommend coolingthe tool witha spray.ForexampleAfra BIO4000,prod.No.21040.
Push the green button to start the motor.
To switchOffthe machineproceedin reverseorder,MOTOROFFandthenMAGNET OFF.
First push red button on the left
How to work
with
core drills
• Pushejectorpin(centerpin)
headof theannularcutter.
Only use injector pins, prod. No. 1924500, 6.35 x 70 mm.
• CoredrillswithWeldonshankaretightenedwithclampingscrews(DIN913)on bothclamping surfaces.
then push red button on the right
11
