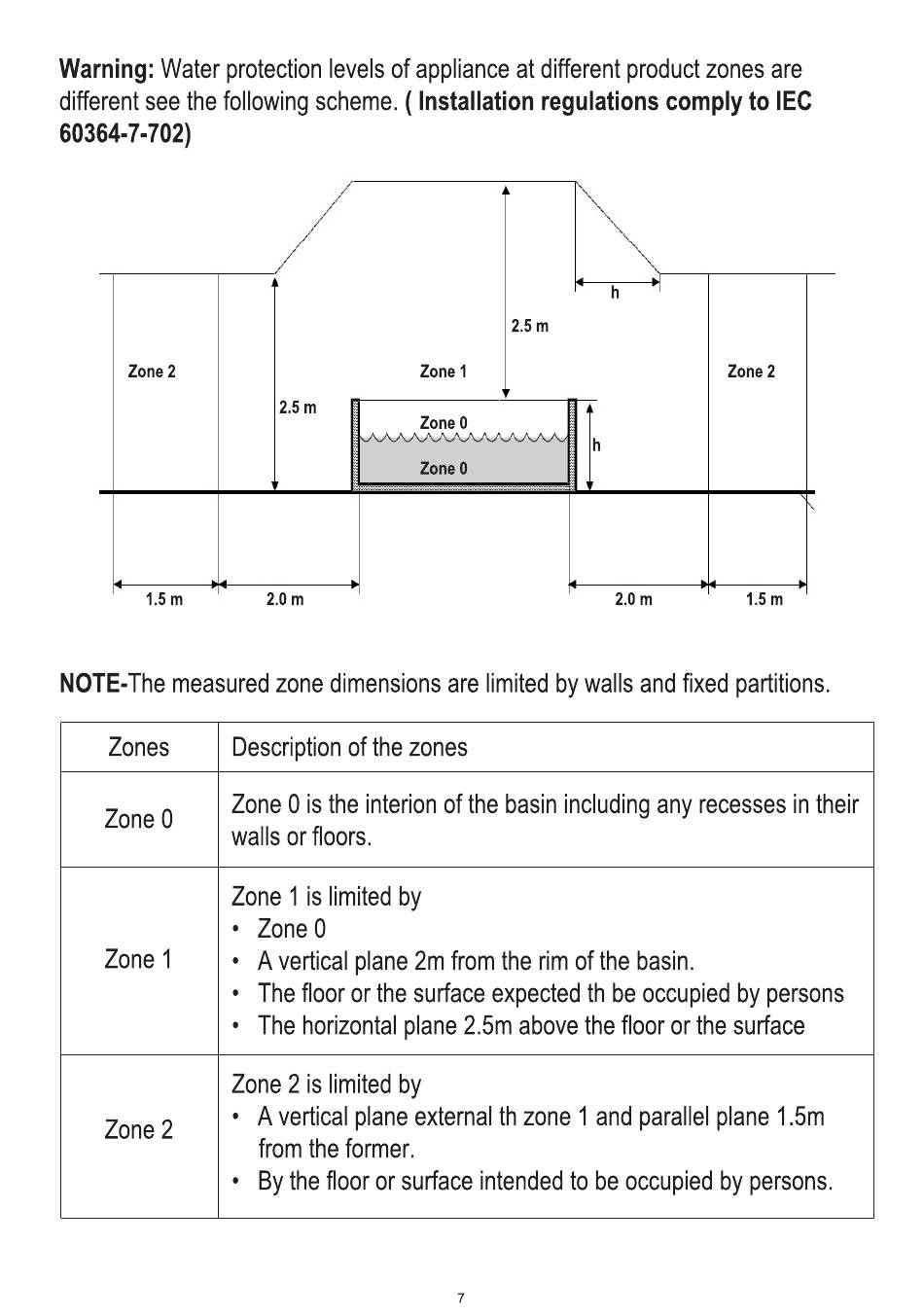

Warning: Water protection levels of appliance at different product zones are
differentsee the followingscheme.( Installation regulations comply to IEC
60364-7-702)
Zone 2
1.5m
NOTE-Themeasuredzone dimensionsare limitedby walls and fixed partitions.
Zones
Zone 0 is the interionof the basinincludingany recessesin their
Zone 0
walls or floors.
Zone 1 is limitedby
Zone 1
Zone 2 is limitedby
Zone 2
2.5 m
2.0 m
Descriptionof the zones
Zone O
A vertical plane2m from the rim of the basin.
The floor or the surfaceexpectedth be occupiedby persons
• The horizontal plane 2.5m above the floor or the surface
• A vertical planeexternalth zone 1 and parallelplane 1.5m
from the former.
By the floor or surfaceintendedto be occupiedby persons.
2.5 m
Zone 1
Zone
0
h
Zone
O
7
h
Zone 2
2.0 m
1.5m
