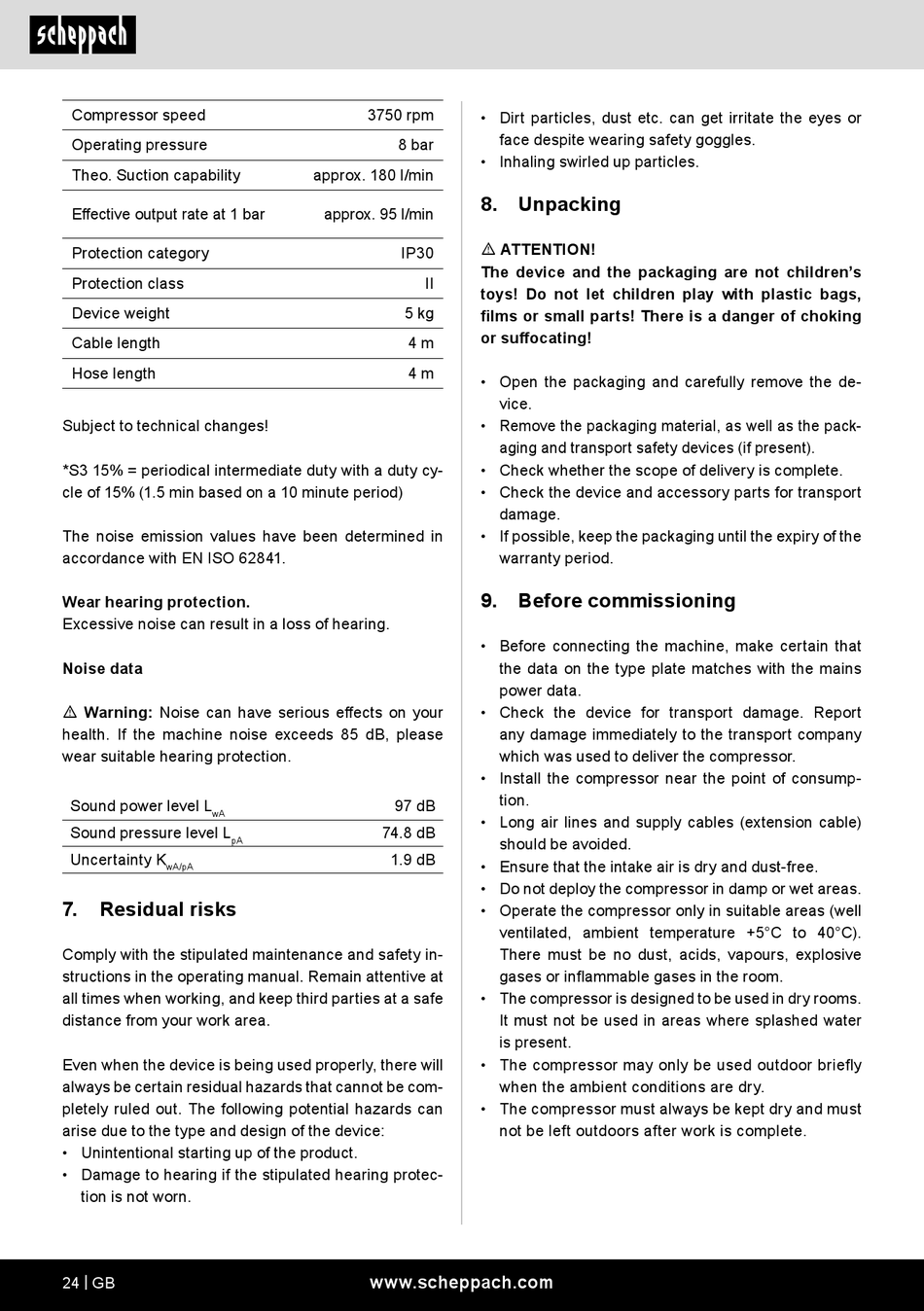

Scheppach Airforce 7 Originalbetriebsanleitung Seite 24

Compressor speed
Operating pressure
Theo. Suction capability
Effective output rate at 1 bar
Protection category
Protection class
Device weight
Cable length
Hose length
Subject to technical changes!
*S3 15% = periodical intermediate duty with a duty cy-
cle of 15% (1.5 min based on a 10 minute period)
The noise emission values have been determined in
accordance with EN ISO 62841.
Wear hearing protection.
Excessive noise can result in a loss of hearing.
Noise data
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Sound power level L
wA
Sound pressure level L
pA
Uncertainty K
wA/pA
7. Residual risks
Comply with the stipulated maintenance and safety in-
structions in the operating manual. Remain attentive at
all times when working, and keep third parties at a safe
distance from your work area.
Even when the device is being used properly, there will
always be certain residual hazards that cannot be com-
pletely ruled out. The following potential hazards can
arise due to the type and design of the device:
• Unintentional starting up of the product.
• Damage to hearing if the stipulated hearing protec-
tion is not worn.
24 | GB
3750 rpm
• Dirt particles, dust etc. can get irritate the eyes or
8 bar
• Inhaling swirled up particles.
approx. 180 l/min
8. Unpacking
approx. 95 l/min
m ATTENTION!
IP30
The device and the packaging are not children's
II
toys! Do not let children play with plastic bags,
5 kg
films or small parts! There is a danger of choking
or suffocating!
4 m
4 m
• Open the packaging and carefully remove the de-
• Remove the packaging material, as well as the pack-
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
• If possible, keep the packaging until the expiry of the
9.
• Before connecting the machine, make certain that
• Check the device for transport damage. Report
• Install the compressor near the point of consump-
97 dB
• Long air lines and supply cables (extension cable)
74.8 dB
1.9 dB
• Ensure that the intake air is dry and dust-free.
• Do not deploy the compressor in damp or wet areas.
• Operate the compressor only in suitable areas (well
• The compressor is designed to be used in dry rooms.
• The compressor may only be used outdoor briefly
• The compressor must always be kept dry and must
www.scheppach.com
face despite wearing safety goggles.
vice.
aging and transport safety devices (if present).
damage.
warranty period.
Before commissioning
the data on the type plate matches with the mains
power data.
any damage immediately to the transport company
which was used to deliver the compressor.
tion.
should be avoided.
ventilated, ambient temperature +5°C to 40°C).
There must be no dust, acids, vapours, explosive
gases or inflammable gases in the room.
It must not be used in areas where splashed water
is present.
when the ambient conditions are dry.
not be left outdoors after work is complete.
