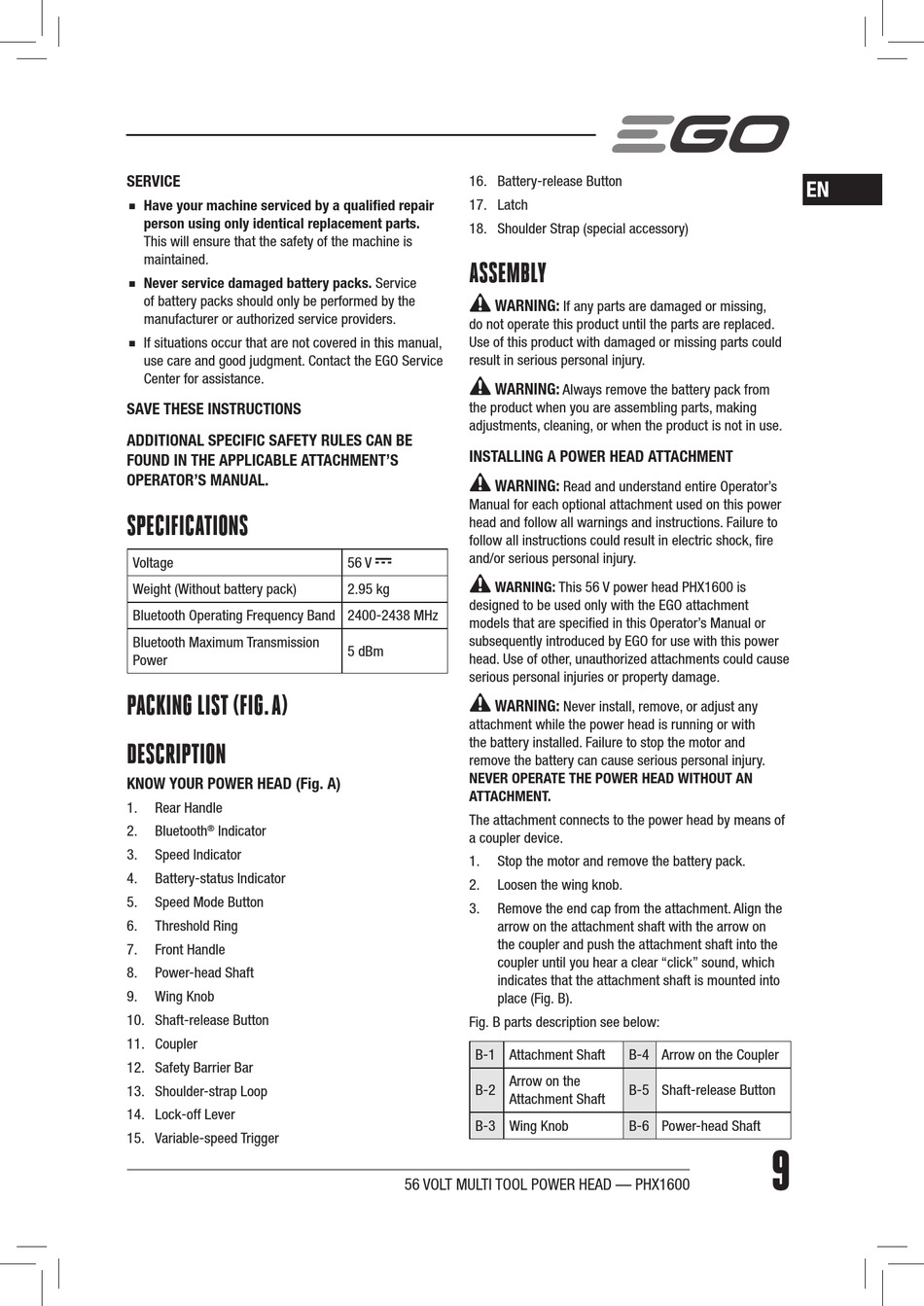

SERVICE
◾
Have your machine serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the machine is
maintained.
◾
Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
◾
If situations occur that are not covered in this manual,
use care and good judgment. Contact the EGO Service
Center for assistance.
SAVE THESE INSTRUCTIONS
ADDITIONAL SPECIFIC SAFETY RULES CAN BE
FOUND IN THE APPLICABLE ATTACHMENT'S
OPERATOR'S MANUAL.
SPECIFICATIONS
Voltage
Weight (Without battery pack)
Bluetooth Operating Frequency Band 2400-2438 MHz
Bluetooth Maximum Transmission
Power
PACKING LIST (FIG. A )
DESCRIPTION
KNOW YOUR POWER HEAD (Fig. A)
1.
Rear Handle
2.
Bluetooth
Indicator
®
3.
Speed Indicator
4.
Battery-status Indicator
5.
Speed Mode Button
6.
Threshold Ring
7.
Front Handle
8.
Power-head Shaft
9.
Wing Knob
10. Shaft-release Button
11. Coupler
12. Safety Barrier Bar
13. Shoulder-strap Loop
14. Lock-off Lever
15. Variable-speed Trigger
16. Battery-release Button
17. Latch
18. Shoulder Strap (special accessory)
ASSEMBLY
WARNING:
do not operate this product until the parts are replaced.
Use of this product with damaged or missing parts could
result in serious personal injury.
WARNING:
the product when you are assembling parts, making
adjustments, cleaning, or when the product is not in use.
INSTALLING A POWER HEAD ATTACHMENT
WARNING:
Manual for each optional attachment used on this power
head and follow all warnings and instructions. Failure to
follow all instruc tions could result in electric shock, fire
and/or serious personal injury.
56 V
WARNING: This 56 V power head PHX1600 is
2.95 kg
designed to be used only with the EGO attachment
models that are specified in this Operator's Manual or
subsequently introduced by EGO for use with this power
5 dBm
head. Use of other, unauthorized attachments could cause
serious personal injuries or property damage.
WARNING:
attachment while the power head is running or with
the battery installed. Failure to stop the motor and
remove the battery can cause serious personal injury.
NEVER OPERATE THE POWER HEAD WITHOUT AN
ATTACHMENT.
The attachment connects to the power head by means of
a coupler device.
1.
Stop the motor and remove the battery pack.
2.
Loosen the wing knob.
3.
Remove the end cap from the attachment. Align the
arrow on the attachment shaft with the arrow on
the coupler and push the attachment shaft into the
coupler until you hear a clear "click" sound, which
indicates that the attachment shaft is mounted into
place (Fig. B).
Fig. B parts description see below:
B-1 Attachment Shaft
Arrow on the
B-2
Attachment Shaft
B-3 Wing Knob
56 VOLT MULTI TOOL POWER HEAD — PHX1600
If any parts are damaged or missing,
Always remove the battery pack from
Read and understand entire Operator's
Never install, remove, or adjust any
B-4 Arrow on the Coupler
B-5 Shaft-release Button
B-6 Power-head Shaft
EN
9
