Memobase Plus CYZ71D
9 Assembling the measuring and calibration
point
A Memobase Plus license can be operated as a single-channel or
multi-channel version.
The following components are required for each channel:
• Computer with installed Memobase Plus software (not included)
• 1 USB cable
• 1 MemoLink
• 1 Memosens cable
• 1 sensor with Memosens technology
If the computer does not have a sufficient number of USB jacks, there is
the option of using a USB hub.
If you use an active USB hub, please ensure that this has an external
power supply so that the sensors are supplied with power.

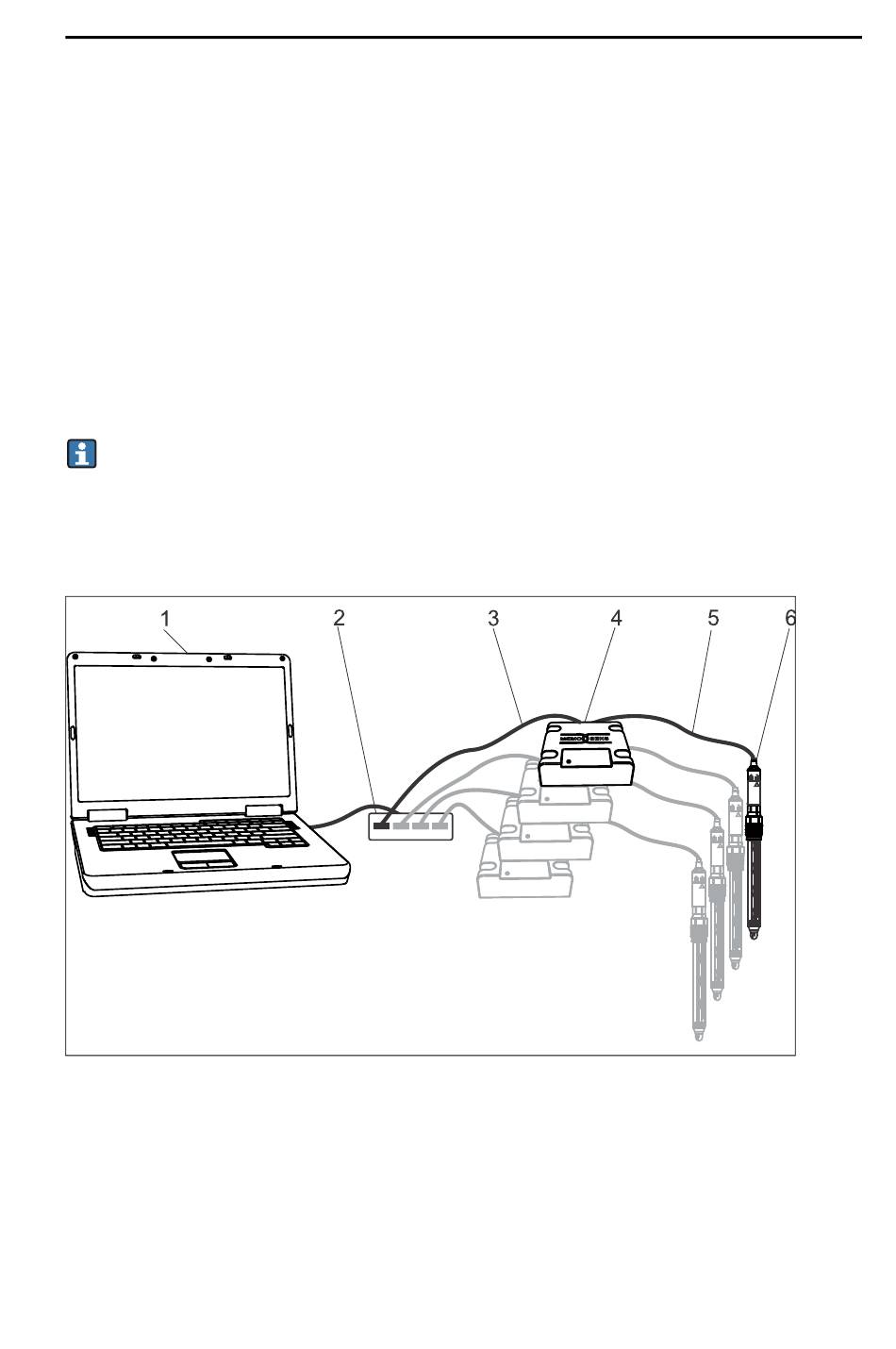

Fig. 8: Measuring system for Memobase Plus CYZ71D
1 Computer (not included)
2 USB hub (optional, not included)
3 1 to 4 USB cables
4 1 to 4 MemoLink boxes
5 1 to 4 Memosens cables CYK20 or Memosens process cables CYK10
6 1 to 4 sensors with Memosens technology
Endress+Hauser
Assembling the measuring and calibration point
a0018816
23
